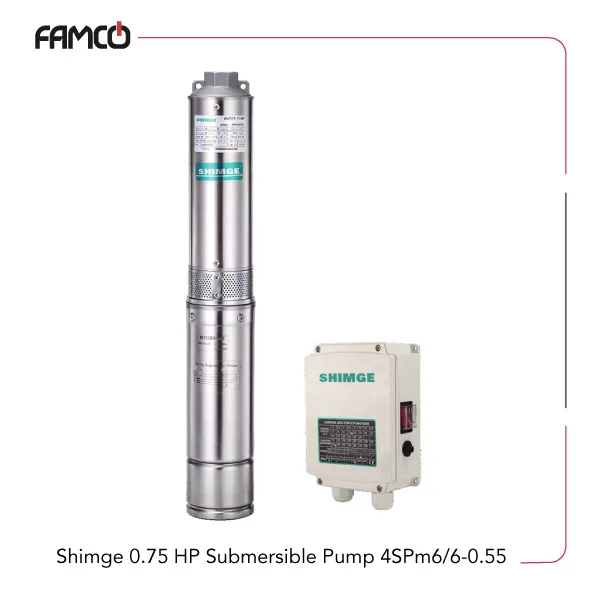

Shimge 0.75 HP Submersible Pump 4SPm6/6-0.55 Specifications
The 4SPm6/6-0.55 is a Shimge manufactured pump that operates efficiently within a maximum ambient temperature of 40°C and can handle sand content up to 100 grams per cubic meter. It is designed to withstand water with hydrogen sulfide levels up to 1.5 milligrams per liter and chloride ions up to 400 milligrams per liter. The device functions optimally within a pH range of 6.5 to 8.5, ensuring compatibility with various water sources. It can be submerged up to 70 meters deep, making it suitable for deep well applications. Powered by a single-phase 220-volt supply, this Shimge submersible pump consumes 0.55 kilowatts or 0.75 horsepower. Installation is straightforward in 4-inch boreholes, making it versatile for different setups. The pump delivers a maximum flow rate of 70 liters per minute, with a head range from 16 to 38 meters, and can achieve a maximum head of 43 meters, providing reliable water pressure for various needs.
| Specification | Value |
| Max. ambient temperature | < 40°C |
| Maximum sand content | 100g/m³ |
| Maximum Hydrogen sulfide content | up to 1.5mg/L |
| Maximum chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| single-phase voltage (V) | 220 |
| installation | in 4-inch boreholes |
| power (kW) | 0.55 |
| power (HP) | 0.75 |
| Max. flow rate (l/min) | 70 |
| head range (m) | 38-16 |
| max. head (m) | 43 |
Shimge 0.75 HP Submersible Pump 4SPm6/6-0.55 Performance Data
| m³/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | head range (m) |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | |
| head (m) | 43 | 39 | 38 | 35 | 31 | 27 | 20 | 12 | 38-16 |
Shimge 0.75 HP Submersible Pump 4SPm6/6-0.55 Applications
- Deep well water extraction
- Residential water supply systems
- Agricultural irrigation
- Small industrial water systems
Shimge 0.75 HP Submersible Pump 4SPm6/6-0.55 Benefits
- High durability in challenging water conditions
- Easy installation in standard boreholes
- Energy-efficient operation with low power consumption
- Reliable flow rate and pressure for various needs
Shimge 0.75 HP Submersible Pump 4SPm6/6-0.55 Price List
| No. | Name | Price |
| 1 | Shimge 0.75 HP Submersible Pump 4SPm6/6-0.55 Price | Contact us |
