Shimge 0.75 HP Submersible Pump 4SPm3/9-0.55

0.55 kW (0.75 HP)

Single-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Shimge Pumps, Shimge Submersible Pumps

Overview of Shimge 0.75 HP Submersible Pump 4SPm3/9-0.55

The single-phase 4SPm3/9-0.55 submersible pump from Shimge operates with a 0.75 HP pumping output that makes it possible to reach 65-meter heads. It is suitable for use in environments with moderate sand and chemical content. The pump is easy to install in 4-inch boreholes and operates efficiently at 220V single-phase power. Its high head capacity makes it ideal for supplying water over long distances or to elevated locations. The device is perfect for residential, agricultural, or industrial water supply systems, providing consistent performance even under challenging water conditions. Its robust design ensures durability and long-term operation, making it a popular choice for various water management needs.

Shimge 0.75 HP Submersible Pump 4SPm3/9-0.55 Specifications

This Shimge submersible product is designed to operate efficiently under water and in various environmental conditions. It can withstand ambient temperatures below 40°C and is suitable for installation in boreholes with a diameter of 4 inches. The device handles water with sand content up to 100 grams per cubic meter, and it can manage water containing hydrogen sulfide up to 1.5 milligrams per liter. It also supports water with chloride ion levels up to 400 milligrams per liter or 48 m³/h. The optimal pH range for operation is between 6.5 and 8.5. The maximum immersion depth of this Shimge submersible pump is 70 meters. It operates on a single-phase voltage of 220 volts and consumes 0.55 kilowatts (or 0.75 horsepower). The maximum flow rate it can handle is 80 liters per minute, with a head range from 35 to 63 meters, and it can achieve a maximum head of 65 meters, ensuring reliable water pumping performance in various settings.

Shimge 0.75 HP Submersible Pump 4SPm3/9-0.55

Specification	Value
Max. ambient temperature	< 40°C
Maximum sand content	100g/m³
Maximum Hydrogen sulfide content	up to 1.5mg/L
Maximum chloride ion content	up to 400mg/L
pH range	6.5 to 8.5
Max. immersion depth	70 meters
Single-phase voltage	220V
Installation	in 4-inch boreholes
Power	0.55 kW
Power (HP)	0.75 HP
Max. flow rate	80 liters per minute
Head range	35-63 meters
Max. head	65 meters

Shimge 0.75 HP Submersible Pump 4SPm3/9-0.55 Performance Data

m³/h	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8
l/min	0	10	20	30	40	50	60	70	80
head (m)	65	64	63	60	55	48	40	30	19

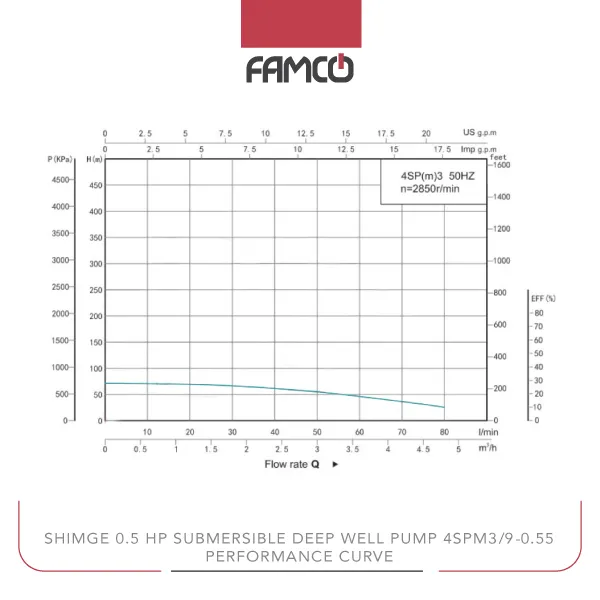

Shimge 0.75 HP Submersible Pump 4SPm3/9-0.55 Performance Curve

Shimge 0.75 HP Submersible Pump 4SPm3/9-0.55 Applications

Deep well water extraction for residential use
Irrigation systems in agriculture
Industrial water supply solutions
Municipal water distribution

Shimge 0.75 HP Submersible Pump 4SPm3/9-0.55 Benefits

High efficiency with a maximum flow rate of 80 l/min
Suitable for deep immersion up to 70 meters
Operates reliably in water with chemical and sand content
Easy installation in standard 4-inch boreholes

Shimge 0.75 HP Submersible Pump 4SPm3/9-0.55 Price List

No.	Name	Price
1	Shimge 0.75 HP Submersible Pump 4SPm3/9-0.55 Price	Contact us

Brand	Shimge
Applications	Garden irrigation, Industrial water transfer, Municipal water supply
Power (kW)	0.55
Power (HP)	0.75
Maximum Flow Rate (L/min)	80
Maximum Delivery Head (m)	65
