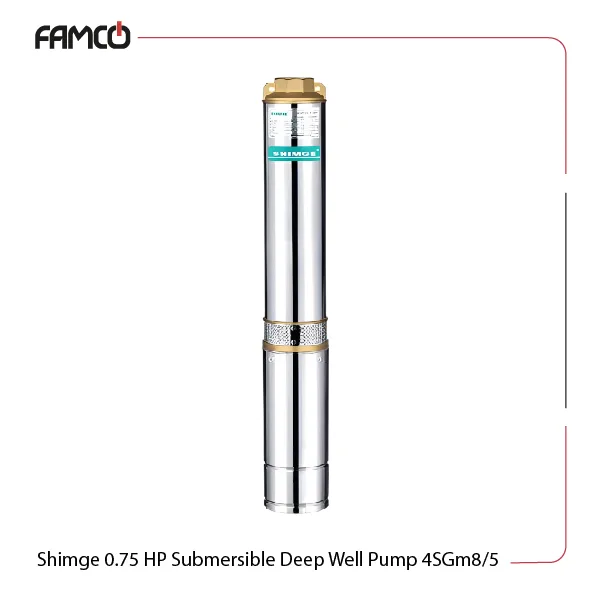

Shimge 0.75 HP Submersible Deep Well Pump 4SGm8/5

0.55 kW (0.75 HP)

Single- phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tag: Shimge Pumps

Overview of Shimge 0.75 HP Submersible Deep Well Pump 4SGm8/5

The 4SGm8/5 is a 0.75 HP pump that transfers water at a flow rate reaching 180 l/min. With a power of 0.55 kW, this Shimge offers reliable performance for both residential and industrial use. Its ability to operate at depths up to 70 meters makes it suitable for deep well applications. The pump is built to handle water with up to 0.01% sand and is resistant to common water contaminants like hydrogen sulfide and chloride ions. Its compact size and single-phase 220V friendly operation make it easy to install and maintain. Whether for irrigation, water supply, or industrial processes, this pump provides a steady flow rate of up to 180 liters per minute, ensuring your water needs are met effectively and efficiently.

Shimge 0.75 HP Submersible Deep Well Pump 4SGm8/5 Specifications

This product features a compact design with a power output of 0.55 kW (0.75 HP), suitable for various water pumping needs. Ambient temperatures below 40°C are the best environments for this Shimge pump to work. The pump can handle water with minimal sand content, up to 0.01%, and is resistant to water containing hydrogen sulfide up to 1.5 mg/L and chloride ions up to 400 mg/L. It functions within a pH range of 6.5 to 8.5, ensuring compatibility with different water qualities. The maximum immersion depth of submersible pumps is arguably an important factor. So, 70-meter immersions are feasible and in reach with the 4SGm8/5. It runs on a single-phase voltage of 220V, providing a maximum flow rate of 180 liters per minute or 10.8 cubic meters per hour. The pump can deliver water with a maximum head of 32 meters, making it ideal for various irrigation, industrial, and domestic water supply systems.

Specification	Value
Power (kW)	0.55
Power (HP)	0.75
Max. ambient temperature (℃)	< 40
Sand content	up to 0.01%
Hydrogen sulfide content	up to 1.5mg/L
Chloride ion content	up to 400mg/L
pH	6.5 to 8.5
Max. immersion depth (m)	70
Single-phase voltage (V)	220
Max. flow rate (l/min)	180
Max. flow rate (m3/h)	10.8
Max. delivery head (m)	32

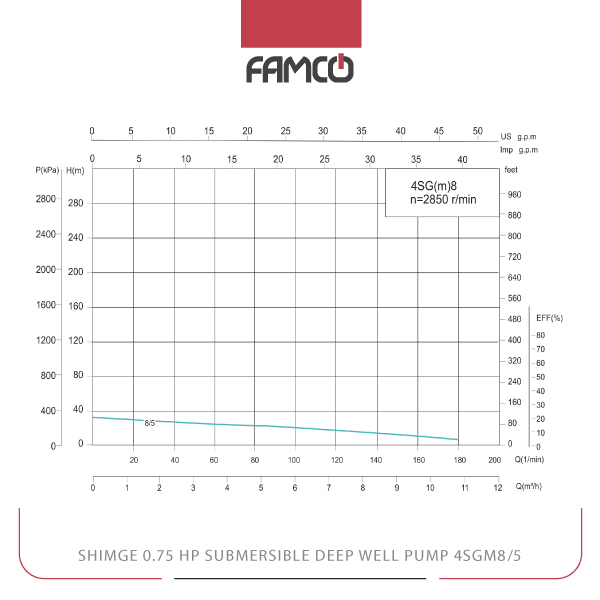

Shimge 0.75 HP Submersible Deep Well Pump 4SGm8/5 Performance Data

M3/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6	10.8
l/min	0	20	40	60	80	100	120	140	160	180
Head (m)	32	31	28	26	25	23	21	17	13	7

Shimge 0.75 HP Submersible Deep Well Pump 4SGm8/5 Applications

Irrigation systems for farms and gardens
Domestic water supply for homes
Industrial water transfer and processing
Deep well water extraction

Shimge 0.75 HP Submersible Deep Well Pump 4SGm8/5 Benefits

High efficiency with low power consumption
Suitable for deep water applications up to 70 meters
Resistant to water with contaminants like hydrogen sulfide and chloride
Easy to install and operate with a compact design

Shimge 0.75 HP Submersible Deep Well Pump 4SGm8/5 Price List

No.	Name	Price
1	Shimge 0.75 HP Submersible Deep Well Pump 4SGm8/5 Price	Contact us

Brand	Shimge
Power (kW)	0.55
Power (HP)	0.75
Maximum Ambient Temperature (°C)	40
Maximum immersion depth (m)	70
Voltage (V)	220
Maximum Flow Rate (L/min)	180
Maximum Delivery Head (m)	32
