Shimge 0.75 HP Submersible Deep Well Pump 4SGm4/7

0.55 kW (0.75 HP)

Single-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

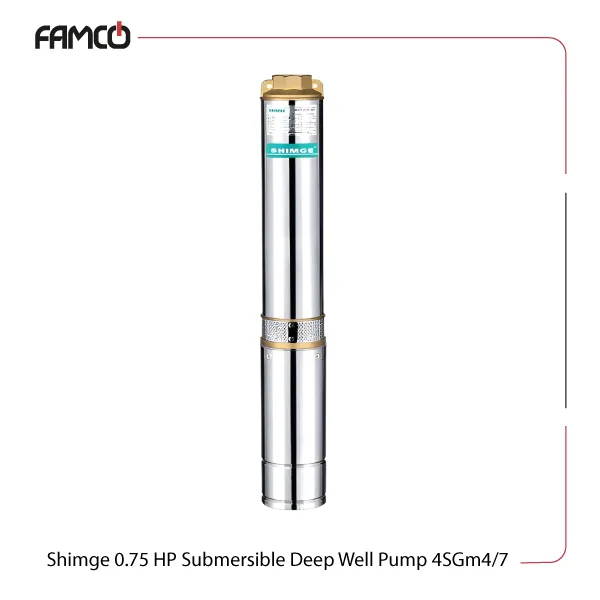

Overview of Shimge 0.75 HP Submersible Deep Well Pump 4SGm4/7

As a single-phase pump, the 4SGm4/7 provides users with 100 l/min flow rates at its best. With a power of 0.55 kW, it takes care of 70-meter deep tasks. Its ability to handle water with specific impurities like sand, hydrogen sulfide, and chloride makes it ideal for use in water treatment, irrigation, and industrial applications. The pump’s maximum 70-meter immersion depth qualifies for flexible installation even in out-of-reach settings like deeper wells or reservoirs. Compatible with standard single-phase 220V power supplies, it is easy to operate. The pump’s 6 m3/h flow rate and 9 to 50-meter delivery head are suitable for small-scale water supplies to larger industrial processes.

Related Products

Shimge 0.75 HP Submersible Deep Well Pump 4SGm4/7 Specifications

This product features a compact design with a power output of 0.55 kW (0.75 HP). Suitable for ambient temperatures below 40°C, it has a fine tolerance of water pollutants, as well. The pump can handle water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ion concentrations up to 400 mg/L. To enhance performance, this submersible pump from Shimge works with liquids within a pH range of 6.5 to 8.5. The maximum immersion depth is 70 meters, which caters to varying installation options. Its placement in 4-inch spaces also adds to this effect. Powered by a single-phase 220V supply, it delivers a maximum flow rate of 100 liters per minute or 6 cubic meters per hour. The pump can generate a maximum delivery head between 9 and 50 meters, suitable for various lifting and transfer applications in water supply, irrigation, and industrial processes.

Shimge 0.75 HP Submersible Deep Well Pump 4SGm4/7

Specification Value
Power (kW) 0.55
Power (HP) 0.75
Max. ambient temperature (℃) < 40
Sand content up to 0.01%
Hydrogen sulfide content up to 1.5mg/L
Chloride ion content up to 400mg/L
pH 6.5 to 8.5
Max. immersion depth (m) 70
Single-phase voltage (V) 220
Max. flow rate (l/min) 100
Max. flow rate (m3/h) 6
Max. delivery head (m) 9-50

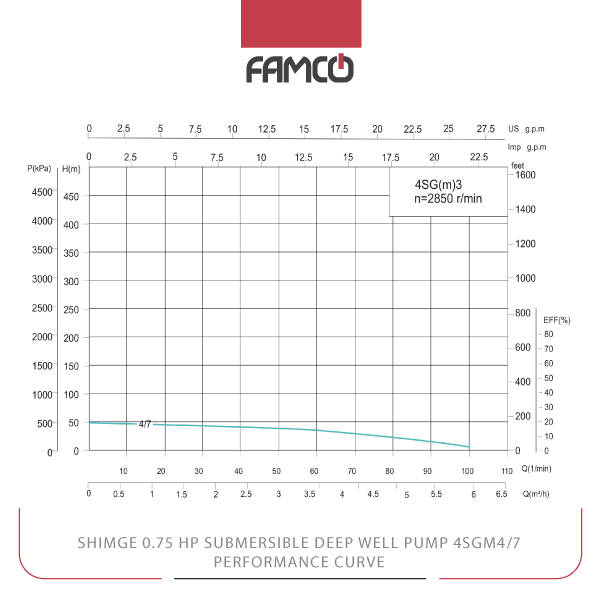

Shimge 0.75 HP Submersible Deep Well Pump 4SGm4/7 Performance Curve

M3/h 0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6
l/min 0 10 20 30 40 50 60 70 80 90 100

Head (m)

50

48

47

46

44

40

36

31

25

18

9

Shimge 0.75 HP Submersible Deep Well Pump 4SGm4/7 Performance Curve

Shimge 0.75 HP Submersible Deep Well Pump 4SGm4/7 Applications

  • Water supply in residential and commercial buildings
  • Irrigation systems for agriculture
  • Industrial water transfer and processing
  • Deep well and reservoir pumping



Shimge 0.75 HP Submersible Deep Well Pump 4SGm4/7 Benefits

  • High efficiency with low power consumption
  • Suitable for water with impurities like sand and hydrogen sulfide
  • Flexible installation with a maximum immersion depth of 70 meters
  • Reliable performance with a wide flow rate and head range



Shimge 0.75 HP Submersible Deep Well Pump 4SGm4/7 Price List

No. Name Price
1 Shimge 0.75 HP Submersible Deep Well Pump 4SGm4/7 Price Contact us
Brand

Power (kW)

Power (HP)

Maximum Ambient Temperature (°C)

Maximum immersion depth (m)

Voltage (V)

Maximum Flow Rate (m3/h)

Maximum Delivery Head (m)
