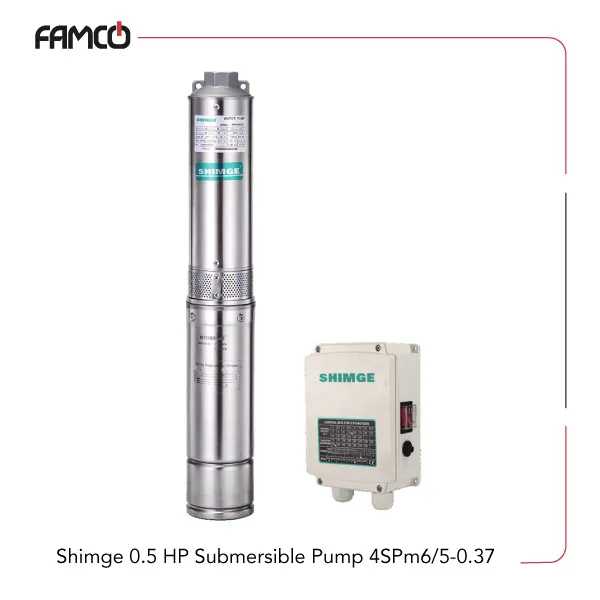

Shimge 0.5 HP Submersible Pump 4SPm6/5-0.37 Specifications
This product is designed to operate efficiently under specific environmental conditions. It can withstand ambient temperatures below 40°C and is suitable for installation in boreholes with a diameter of 4 inches. The device handles water with sand content up to 100 grams per cubic meter, and it can manage water containing hydrogen sulfide up to 1.5 milligrams per liter. It also tolerates chloride ion concentrations up to 400 milligrams per liter. The pH range for optimal operation is between 6.5 and 8.5. The maximum immersion depth is 70 meters, making this Shimge submersible pump suitable for deep well applications. It operates on a single-phase voltage of 220 volts and consumes 0.37 kilowatts (or 0.55 horsepower). The maximum flow rate it can handle is 70 liters per minute, with a head range from 11 to 30 meters, and a maximum head of 35 meters. These specifications make it ideal for water pumping in various industrial and residential settings, especially where water quality and environmental conditions vary. The Shimge pump 4SPm6/5 is built with premuim care into details to offer efficient water transfer and pressure management for long-term use.
| Specification | Value |
| Max. ambient temperature | < 40°C |
| Maximum sand content | 100g/m³ |
| Maximum Hydrogen sulfide content | up to 1.5mg/L |
| Maximum chloride ion content | up to 400mg/L |
| pH range | 6.5 to 8.5 |
| Max. immersion depth | 70 meters |
| Single-phase voltage | 220V |
| Installation | in 4-inch boreholes |
| Power | 0.37 kW |
| Power (HP) | 0.55 HP |
| Max. flow rate | 70 liters per minute |
| Head range | 30-11 meters |
| Max. head | 35 meters |
Shimge 0.5 HP Submersible Pump 4SPm6/5-0.37 Performance Data
| m³/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | head range (m) |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | |
| head (m) | 35 | 32 | 30 | 27 | 24 | 21 | 15 | 9 | 30-11 |
Shimge 0.5 HP Submersible Pump 4SPm6/5-0.37 Applications
- Deep well water extraction
- Residential water supply systems
- Agricultural irrigation projects
- Industrial water transfer
Shimge 0.5 HP Submersible Pump 4SPm6/5-0.37 Benefits
- High efficiency with low power consumption
- Suitable for deep borehole installations
- Handles water with impurities like sand and hydrogen sulfide
- Reliable performance in challenging environments
Shimge 0.5 HP Submersible Pump 4SPm6/5-0.37 Price List
| No. | Name | Price |
| 1 | Shimge 0.5 HP Submersible Pump 4SPm6/5-0.37 Price | Contact us |
