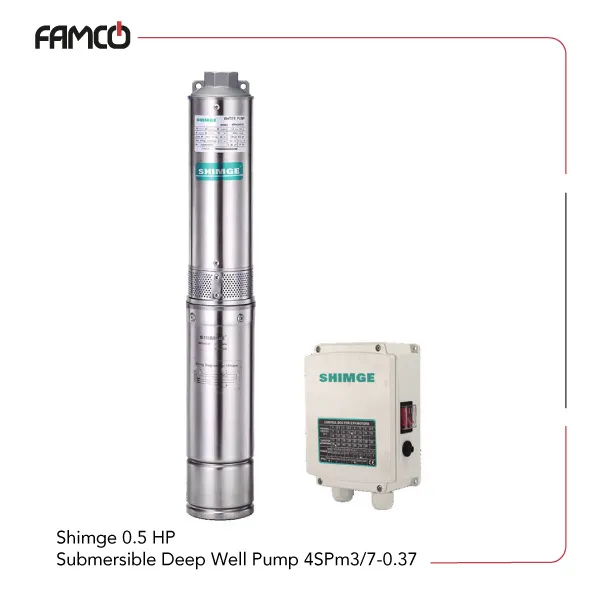

Shimge 0.5 HP Submersible Deep Well Pump 4SPm3/7-0.37 Specifications
This product operates efficiently in environments with temperatures below 40°C and can handle sand content up to 100 grams per cubic meter. It is designed to work with water containing hydrogen sulfide levels up to 1.5 milligrams per liter and chloride ions up to 400 milligrams per liter. The device functions within a pH range of 6.5 to 8.5, ensuring compatibility with various water qualities. It can be immersed up to 70 meters deep, making it suitable for deep well applications. Powered by a single-phase 220-volt supply, the 4-inch Shimge submersible pump consumes 0.37 kilowatts or 0.5 horsepower. The pump can deliver a maximum flow rate of 80 liters per minute, with a head range from 25 to 47 meters, reaching a maximum head of 49 meters. Installation is straightforward in 4-inch boreholes, making it ideal for water extraction and pumping tasks in residential, agricultural, or industrial settings.
| Specification | Value |
| Max. ambient temperature | < 40°C |
| Maximum sand content | 100g/m³ |
| Maximum Hydrogen sulfide content | up to 1.5mg/L |
| Maximum chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Single-phase voltage (V) | 220 |
| Installation | in 4-inch boreholes |
| Power (kW) | 0.37 |
| Power (HP) | 0.5 |
| Max. flow rate (l/min) | 80 |
| Head range (m) | 47-25 |
| Max. head (m) | 49 |

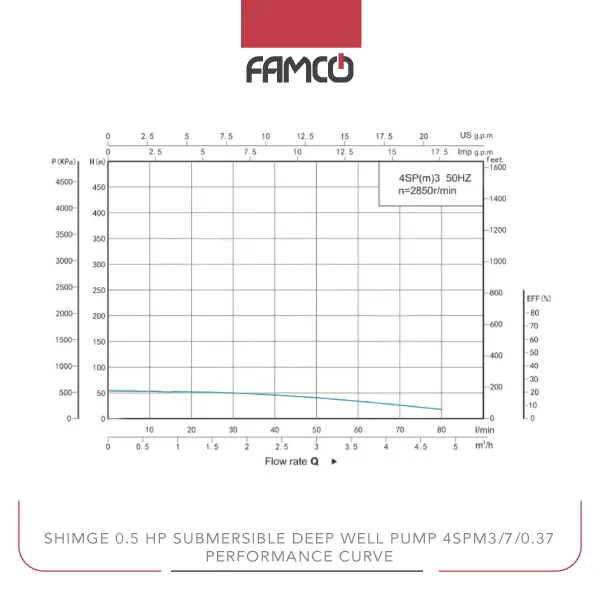

Shimge 0.5 HP Submersible Deep Well Pump 4SPm3/7-0.37 Performance Data
| m³/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 8049 |
| head (m) | 49 | 48 | 47 | 44 | 40 | 35 | 28 | 23 | 12 |
Shimge 0.5 HP Submersible Deep Well Pump 4SPm3/7-0.37 Applications
- Water supply for residential homes
- Irrigation in agriculture
- Industrial water extraction
- Deep well water pumping
Shimge 0.5 HP Submersible Deep Well Pump 4SPm3/7-0.37 Benefits
- High efficiency at deep depths up to 70 meters
- Handles water with impurities like sand and chlorides
- Easy installation in standard boreholes
- Low power consumption with reliable performance
Shimge 0.5 HP Submersible Deep Well Pump 4SPm3/7-0.37 Price List
| No. | Name | Price |
| 1 | Shimge 0.5 HP Submersible Deep Well Pump 4SPm3/7-0.37 Price | Contact us |
There are no reviews yet.
