Shimge 0.5 HP Submersible Deep Well Pump 4SGm4/6

0.37 kW (0.5 HP)

Single-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Shimge 0.5 HP Submersible Deep Well Pump 4SGm4/6

This water pump runs on a single-phase 220 supply and is used for water transfer, irrigation, and industrial processes. Operational when submerged up to 70 meters, this Shimge pump is suitable for deep well extraction. With a power of 0.37 kW, the 4SGm4/6 offers a good balance of performance and energy consumption. The pump operates in ambient temperatures below 40°C and handles water with minimal sand, hydrogen sulfide, and chloride content. Its delivery rates are up to 100 liters per minute for small and large-scale water transfer tasks. The adjustable head from 4 to 42 meters measures up to various tasks.

Related Products

Shimge 0.5 HP Submersible Deep Well Pump 4SGm4/6 Specifications

Powered by Shimge engineering, the 4SGm4/6 features a compact power of 0.37 kW (0.55 HP). The pump can handle both clean and contaminated water up to certain amounts as follows: water with sand content up to 0.01%, hydrogen sulfide levels up to 1.5 mg/L, and chloride ions up to 400 mg/L. To maintain optimal performance of these submersible pumps, liquids should be within a pH range of 6.5 to 8.5. The device can be submerged up to 70 meters deep while running on a single-phase voltage of 220V and can deliver a maximum flow rate of 100 liters per minute, equal to 6 cubic meters per hour. The maximum delivery head ranges from 4 to 42 meters, so it provides matching pressure options for different setups.

Shimge 0.5 HP Submersible Deep Well Pump 4SGm4/6

Specification Value
Power (kW) 0.37
Power (HP) 0.55
Max. ambient temperature (℃) < 40
Sand content up to 0.01%
Hydrogen sulfide content up to 1.5mg/L
Chloride ion content up to 400mg/L
pH 6.5 to 8.5
Max. immersion depth (m) 70
Single-phase voltage (V) 220
Max. flow rate (l/min) 100
Max. flow rate (m3/h) 6
Max. delivery head (m) 4-42

Shimge 0.5 HP Submersible Deep Well Pump 4SGm4/6 Performance Data

M3/h 0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6
l/min 0 10 20 30 40 50 60 70 80 90 100
Head (m) 42 40 39 37 35 32 29 24 19 12 4

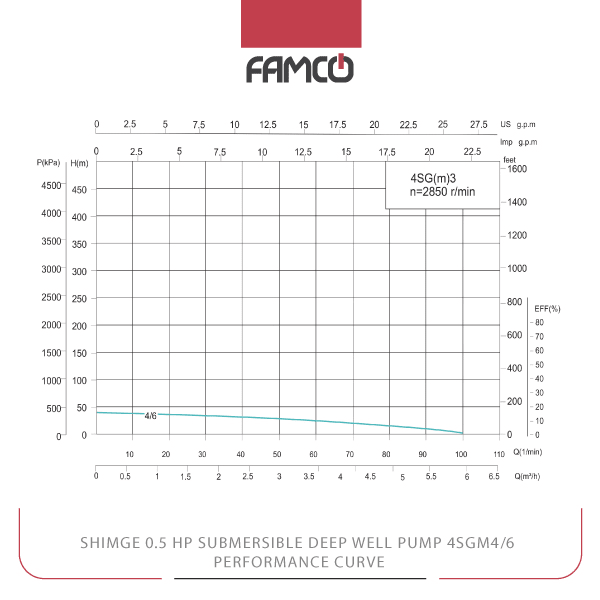

Shimge 0.5 HP Submersible Deep Well Pump 4SGm4/6 Performance Curve

Shimge 0.5 HP Submersible Deep Well Pump 4SGm4/6 Applications

  • Water supply for residential and commercial buildings
  • Irrigation systems in agriculture
  • Industrial water transfer and processing
  • Deep well water extraction



Shimge 0.5 HP Submersible Deep Well Pump 4SGm4/6 Benefits

  • High efficiency with low power consumption
  • Suitable for deep immersion up to 70 meters
  • Handles water with minimal sand and contaminants
  • Flexible pressure range for diverse applications



Shimge 0.5 HP Submersible Deep Well Pump 4SGm4/6 Price List

No. Name Price
1 Shimge 0.5 HP Submersible Deep Well Pump 4SGm4/6 Price Contact us
Brand

Power (kW)

Power (HP)

Maximum Ambient Temperature (°C)

Maximum immersion depth (m)

Voltage (V)

Maximum Flow Rate (L/min)

Maximum Delivery Head (m)
