Shimge 0.5 HP Submersible Deep Well Pump 4SGm3/7 Specifications
This compact submersible pump operates with a power of 0.37 kW (0.5 HP) and is designed for efficient water transfer. It can handle environments with ambient temperatures below 40°C and is suitable for water with minimal sand content up to 0.01%. This pump’s special feature is how it handles water containing hydrogen sulfide up to 1.5 mg/L and chloride ions up to 400 mg/L. It functions within a pH range of 6.5 to 8.5, so it delivers seamless performance across different water conditions. The device can be submerged up to 70 meters deep. It operates on a standard single-phase voltage of 220V; as a result, it is easy to connect to common power supplies. The maximum flow rate it reaches is 80 liters per minute, or 4.8 cubic meters per hour, suitable for small to medium water transfer tasks. These submersible pumps can generate a maximum delivery head of 12 to 49 meters with effective water elevation and pressure management no matter the setup.
| Specification | Value |
| Power (kW) | 0.37 |
| Power (HP) | 0.5 |
| Max. ambient temperature (℃) | < 40 |
| Sand content | up to 0.01% |
| Hydrogen sulfide content | up to 1.5mg/L |
| Chloride ion content | up to 400mg/L |
| pH | 6.5 to 8.5 |
| Max. immersion depth (m) | 70 |
| Single-phase voltage (V) | 220 |
| Max. flow rate (l/min) | 80 |
| Max. flow rate (m3/h) | 4.8 |
| Max. delivery head (m) | 12-49 |

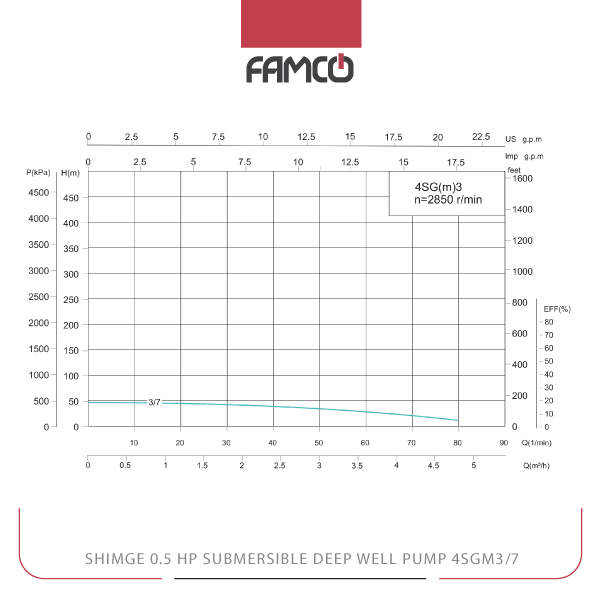

Shimge 0.5 HP Submersible Deep Well Pump 4SGm3/7 Performance Curve
| M3/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| Head (m) | 49 | 48 | 47 | 44 | 40 | 35 | 28 | 23 | 12 |
Shimge 0.5 HP Submersible Deep Well Pump 4SGm3/7 Applications
- Deep well water extraction
- Irrigation systems
- Water supply for residential and commercial buildings
- Industrial water transfer
Shimge 0.5 HP Submersible Deep Well Pump 4SGm3/7 Benefits
- High efficiency with low power consumption
- Suitable for deep water applications up to 70 meters
- Handles water with specific chemical contents safely
- Easy to install and operate with standard voltage
Shimge 0.5 HP Submersible Deep Well Pump 4SGm3/7 Price List
| No. | Name | Price |
| 1 | Shimge 0.5 HP Submersible Deep Well Pump 4SGm3/7 Price | Contact us |
