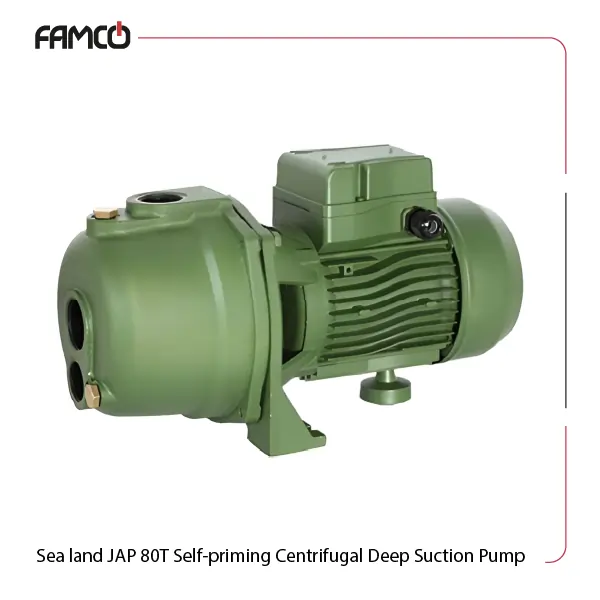

Sea land JAP 80T Self-priming Centrifugal Deep Suction Pump

Overview of Sea land JAP 80T Self-priming Centrifugal Deep Suction Pump

The Sea land JAP 80 T self-priming centrifugal deep suction pump is engineered to deliver exceptional performance in a range of industrial and agricultural applications. Its self-priming feature simplifies operation by eliminating the need for manual priming. The deep suction capability of the JAP 80 T makes it ideal for drawing water from significant depths. It is particularly useful for deep wells and boreholes. This pump offers durability and reliability and ensures long-term performance in demanding conditions.

Equipped with an efficient centrifugal design, Sea land JAP 80 T maximizes flow rates while maintaining energy efficiency. The pump’s powerful motor ensures consistent and reliable operation. Additionally, Sea land JAP 80 T is designed for ease of maintenance, making it a practical choice for users seeking a dependable and straightforward pumping solution. Its robust construction and user-friendly features make it an excellent option for irrigation, dewatering, and other critical applications.

You can check the specifications of Sea land JAP 80 T self-priming centrifugal deep suction pump on this page.

How does Sea land JAP 80T Self-priming Centrifugal Deep Suction Pump Work?

Sea land JAP 80T self-priming centrifugal deep suction pump operates by leveraging centrifugal force to move water efficiently. When activated, the pump’s impeller rotates rapidly, generating a high-speed flow that creates a vacuum at the pump’s suction inlet. This vacuum allows the water pump to draw water from a depth without needing to manually prime it each time. As the impeller spins, water is pulled into the pump casing and forced outwards, creating a steady flow through the discharge outlet.

The pump’s self-priming feature is particularly advantageous for deep suction applications, such as those involving deep wells or boreholes. The JAP 80T’s design includes a check valve that helps maintain the prime and prevents water from flowing back into the well when the pump is not in use. This ensures consistent and reliable operation, with the centrifugal force maintaining strong flow and pressure throughout its use. Its robust construction and efficient hydraulic design make it suitable for demanding fluid transfer tasks, providing dependable performance in various industrial and agricultural settings.

Exclusive Features and Benefits Sea land JAP 80 T Self-priming Centrifugal Deep Suction Pump

The Sea land JAP 80T self-priming centrifugal deep suction pump is designed for efficiently pumping clean water from wells that are at least 4 inches in diameter. Here are some key features and benefits of this pump:

1. Self-Priming Design: The JAP 80T is a self-priming centrifugal pump, which means it can automatically remove air or gases from the suction side during the priming process. Unlike traditional centrifugal pumps that require manual priming, the JAP 80T can start pumping effectively without being fully filled with liquid initially.
2. Deep Suction Capability: It’s specifically engineered for deep wells where the water level is more than 8 meters deep. This makes it suitable for applications where the water source is located below ground level.
3. Temperature Range: The liquid temperature should not exceed 35°C for domestic use (CEI EN 60335-2-41) or 60°C for other uses. Additionally, the ambient temperature must not exceed 40°C.
4. Materials: The pump body is made of cast iron with anti-corrosive coating, and the impellers are made of polymer (stamped brass UNI-EN 12165 on demand). The pump shaft is stainless steel (AISI 304).
5. Motor: The control motor is asynchronous, squirrel cage-type, closed, and has external ventilation. It includes motor protection and a capacitor for single-phase models.

Sea land JAP 80T Self-priming Centrifugal Deep Suction Pump Installation and Usage

• Select Location: Choose a stable, well-ventilated spot near the water source.
• Connect Pipes: Attach suction and discharge pipes.
• Electrical Connection: Wire the pump to a suitable power source.
• Prime the Pump: Fill it with water.
• Start and Monitor: Turn it on and check for leaks.

Usage:

• Domestic Use: Ideal for supplying water to households, gardens, and small irrigation systems.
• Agriculture: Suitable for agricultural irrigation, especially in areas with deep water sources.
• Industrial: Can be used in industrial processes where clean water needs to be transferred.
• Construction: Useful for dewatering excavations or construction sites.

Sea land JAP 80T Self-priming Centrifugal Deep Suction Pump Components

The Sea land JAP 80T self-priming centrifugal deep suction pump consists of the following components:

• Pump Body: Made of cast iron (G20) with an anti-corrosive coating.
• Motor Bracket: Constructed from die-cast aluminum (UNI 5076), except for the JAP 150-200 model, which uses cast iron.
• Ejector: Cast iron (G20) with an anti-corrosive coating.
• Diffusers, Nozzle & Venturi Tube: These components are made of techno-polymer.
• Impellers: Crafted from polymer material (stamped brass UNI-EN 12165 upon request).

Important tips for Buying Sea land JAP 80T Self-priming Centrifugal Deep Suction Pump

• Flow Rate and Head Requirements: Ensure the pump’s capacity matches your required flow rate and maximum head height for optimal performance.
• Material Durability: Verify that the pump materials are suited to the type of liquid you’ll be pumping, especially if dealing with corrosive or abrasive fluids.
• Power and Efficiency: Check the motor specifications to ensure it meets your energy efficiency needs and power availability.
• Maintenance and Support: Look for ease of maintenance and available support services to address any issues promptly.
• Self-Priming Capability: Confirm that the self-priming feature is reliable for your specific application, especially for deep suction scenarios.
• Price: You can check Sea land JAP 80 T Self-priming centrifugal deep suction pump price on Famcocorp website.

You can buy Sea land JAP 80T self-priming centrifugal deep suction pump online from Famcocorp.



Sea land JAP 80T Self-priming Centrifugal Deep Suction Pump Price List

No.	Name	Price
1	Sea land JAP 80T Self-priming Centrifugal Deep Suction Pump Price	Contact us
