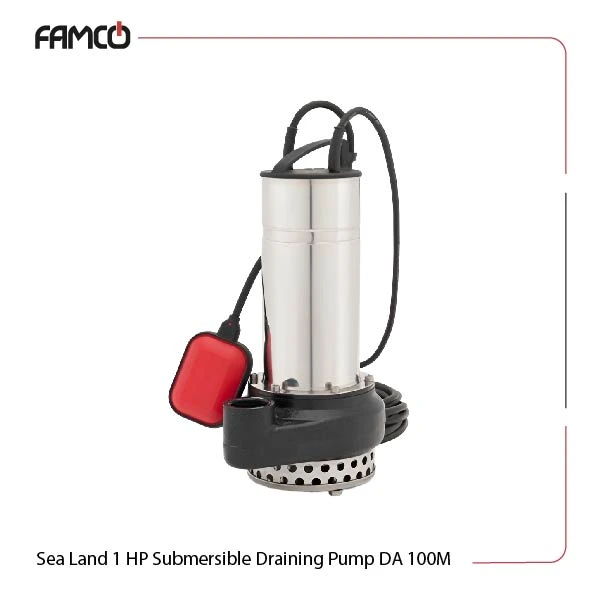

Sea Land 1 HP Submersible Draining Pump DA 100M

0.74 kW (1 HP)

single-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Categories: Submersible Pump, Drainage Pump Tag: Sea land Pumps

Overview of Sea Land 1 HP Submersible Draining Pump DA 100M

The DA 100M 1 HP drainage pump is designed for various applications. It can achieve a maximum head of 6 to 11.6 meters and a flow rate of up to 18 m3/h. Operating at a frequency of 50 Hz and a rotation speed of 2900 rpm, this Sea Land pump is designed for durability. This pump features a maximum immersion depth of 5 meters and operates with 2 poles. As a unit with solid construction with high-quality materials, it runs on a single-phase to ensure its longevity and reliability in effect. Using all-durable components, such as cast iron body and technopolymer impeller, has turned this Sea land pump to a solid choice.

Sea Land 1 HP Submersible Draining Pump DA 100M Specifications

The Sea Land drainage pumps are well-protected, and this product has an IP 68 protection rating. The insulation class is F, providing reliable performance. With a power output of 0.74 kW (1 HP) and a voltage of 230 V, this Sea Land submersible pump is efficient for various applications. The weight of the single-phase automatic version is 13.2 kg. The motor body is made from stainless steel AISI 304, while the pump body is constructed from cast iron G20 with an anti-corrosive coating. The impeller is made from techno-polymer, and the pump shaft is stainless steel AISI 420. It features a carbon-ceramics mechanical seal on the pump side and a lip ring in NBR on the motor side.

Specification	Value
Max. immersion	5 m
No. of poles	2
Protection	IP 68
Class	F insulation
Power (kW)	0.74
Power (HP)	1
Voltage (V)	230
Single phase automatic version weight (kg)	13.2
Max. head	6-11.6
Max. flow rate (m3/h)	18
Frequency (Hz)	50
Rotation speed (rpm)	2900

Sea Land 1 HP Submersible Draining Pump DA 100M Materials

Motor body: Stainless steel AISI 304
Pump body: Cast iron G20 with anti-corrosive coating
Impeller: Techno-polymer
Pump shaft: Stainless steel AISI 420
Pump’s side mechanical seal: Carbon – Ceramics
Motor’s side seal: Lip ring in NBR

Sea Land 1 HP Submersible Draining Pump DA 100M Technical Data

Q (m3/h)	0	3	6	9	12	15	18
Q (l/min)	0	50	100	150	200	250	300
H (m)	11.6	11	10.9	10	9.1	7.5	6

Sea Land 1 HP Submersible Draining Pump DA 100M Applications

Residential water drainage
Irrigation systems
Commercial water management
Construction site dewatering

Sea Land 1 HP Submersible Draining Pump DA 100M Benefits

High durability with stainless steel and cast iron construction
Efficient performance with a maximum flow rate of 18 m3/h
Compact and lightweight design for easy installation
IP 68 protection for reliable operation in wet conditions

Sea Land 1 HP Submersible Draining Pump DA 100M Price List

No.	Name	Price
1	Sea Land 1 HP Submersible Draining Pump DA 100M Price	Contact us

Brand	Sea Land
Maximum immersion depth (m)	5
Number of Poles	2
Degree of Protection	IP68
Insulation Class	F
Power (kW)	0.74
Power (HP)	1
Voltage (V)	230
Weight (kg)	13.2
Maximum Delivery Head (m)	11.6
Maximum Flow Rate (m3/h)	18
Frequency (Hz)	50
Speed (RPM)	2900
Pump Body	Cast Iron
Impeller Material	Technopolymer
Mechanical Seal	Carbon/Ceramic, NBR
Applications	Construction Site Dewatering, Irrigation, Residential, Water Management Systems
