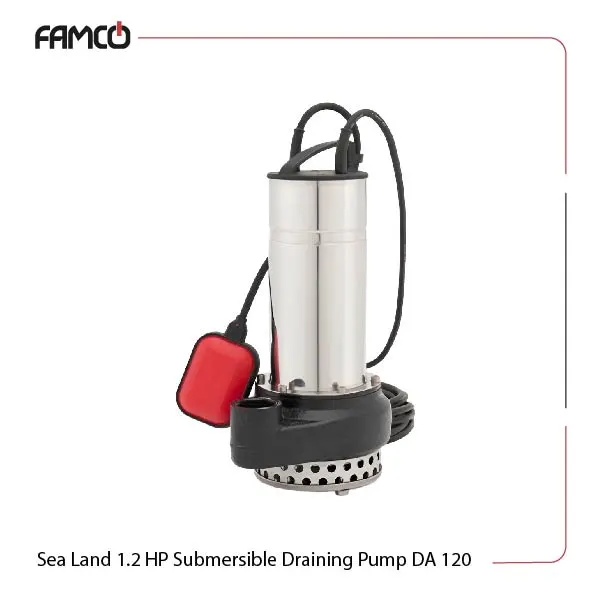

Sea Land 1.2 HP Submersible Draining Pump DA 120 Specifications
This pump is designed for high performance and durability. This series of Sea land pumps features a solid construction with a stainless steel AISI 304 motor body and a cast iron G20 pump body, which is coated to resist corrosion. It can handle a maximum head of 6.5 to 13.9 meters and achieve a flow rate of up to 21 m3/h. The motor runs at a frequency of 50 Hz and a rotation speed of 2900 rpm for an enhanced drainage pump performance. Additionally, it is equipped with an IP68 protection rating, so it is suitable for submerged applications where only the sturdiest submersible pumps can tolerate. The mechanical seals are made from high-quality materials, including carbon-ceramics and NBR lip rings, providing reliable operation in various conditions.
| Specification | Value |
| Max. immersion | 5 m |
| No. of poles | 2 |
| Protection | IP 68 |
| Insulation class | F |
| Power (kW) | 0.88 |
| Power (HP) | 1.2 |
| Single-Phase Voltage (V) | 230 |
| Three-Phase Voltage (V) | 400 |
| Weight (kg) | 14.3 |
| Max. head | 6.5-13.9 |
| Max. flow rate (m3/h) | 21 |
| Frequency (Hz) | 50 |
| Rotation speed (rpm) | 2900 |
Sea Land 1.2 HP Submersible Draining Pump DA 120 Materials
- Impeller: Techno-polymer
- Pump shaft: Stainless steel AISI 420
- Pump’s side mechanical seal: Carbon – Ceramics
- Motor’s side seal: Lip ring in NBR
- Motor body: Stainless steel AISI 304
- Pump body: Cast iron G20 with anti-corrosive coating
Sea Land 1.2 HP Submersible Draining Pump DA 120 Technical Data
| Q (m3/h) | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 |
| Q (l/1’) | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 |
| H (m) | 13.9 | 13.5 | 13.3 | 12.8 | 11.0 | 9.5 | 8.0 | 6.5 |
Sea Land 1.2 HP Submersible Draining Pump DA 120 Applications
- Water transfer in residential settings
- Irrigation for agricultural fields
- Drainage in construction sites
- Industrial fluid handling
Sea Land 1.2 HP Submersible Draining Pump DA 120 Benefits
- High efficiency with a maximum flow rate of 21 m3/h
- Durable materials ensure long-lasting performance
- IP 68 rating allows for submerged use
- Versatile applications across various industries
