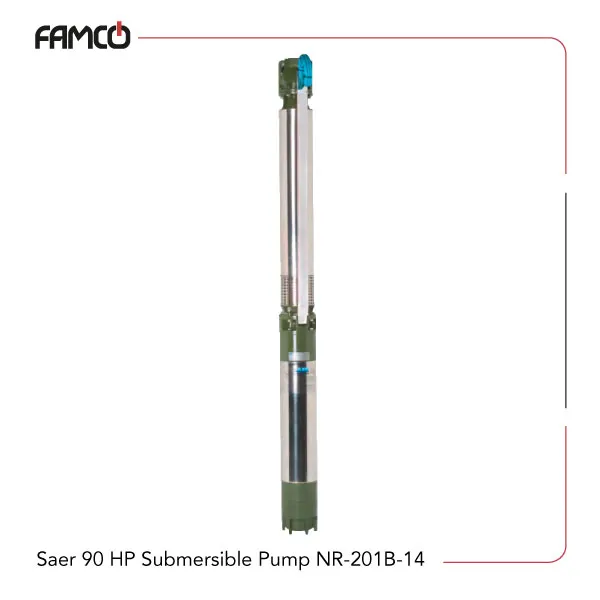

Saer 90 HP Submersible Pump NR-201B/14 Specifications
Saer submersible pump NR-201B/14 has a 67 kW (90 HP) motor operating on a 400V supply and draws 135A. It handles a flow rate of 1500 liters per minute and reaches a maximum head of 380 meters, suitable for high-pressure applications. This Saer submersible pump works with liquids up to 30°C and operates at pressures up to 85 bar. It can be immersed to a depth of 300 meters below the liquid surface for deep submersion. Solid particles up to 5 mm can pass through the pump, allowing operation with liquids that contain small particulates. Its solid construction and high performance make it suitable for industrial, municipal, and large-scale water management applications.
| Specification | Value |
| Power (kW) | 67 |
| Power (HP) | 90 |
| Voltage (V) | 400 |
| Current (A) | 135 |
| Maximum Flow rate (l/min) | 1500 |
| Maximum head (m) | 380 |
| Temperature of the pumped liquid | max 30°C |
| Maximum working pressure | 85 bar |
| Maximum immersion depth | 300 m under liquid level |
| Passing of solids | max 5 mm |

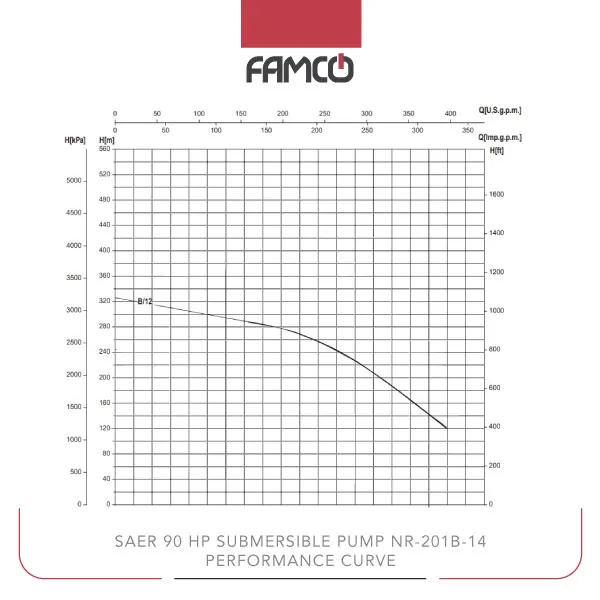

Saer 90 HP Submersible Pump NR-201B/14 Performance Data
| Q (m3/h) | 0 | 600 | 667 | 750 | 833 | 933 | 1050 | 1167 | 1333 | 1500 |
| Q (l/min) | 0 | 36 | 40 | 45 | 50 | 56 | 63 | 70 | 80 | 90 |
| H (m) | 380 | 336 | 338 | 326 | 314 | 299 | 274 | 241 | 194 | 144 |
Saer 90 HP Submersible Pump NR-201B/14 Applications
- Deep well water extraction
- Industrial fluid transfer
- Municipal water supply systems
- High-pressure water circulation
Saer 90 HP Submersible Pump NR-201B/14 Benefits
- High power and efficiency for demanding tasks
- Capable of deep immersion up to 300 meters
- Handles solids up to 5 mm for versatile use
- Operates reliably under high pressure up to 85 bar
Saer 90 HP Submersible Pump NR-201B/14 Price List
| No. | Name | Price |
| 1 | Saer 90 HP Submersible Pump NR-201B/14 Price | Contact us |
