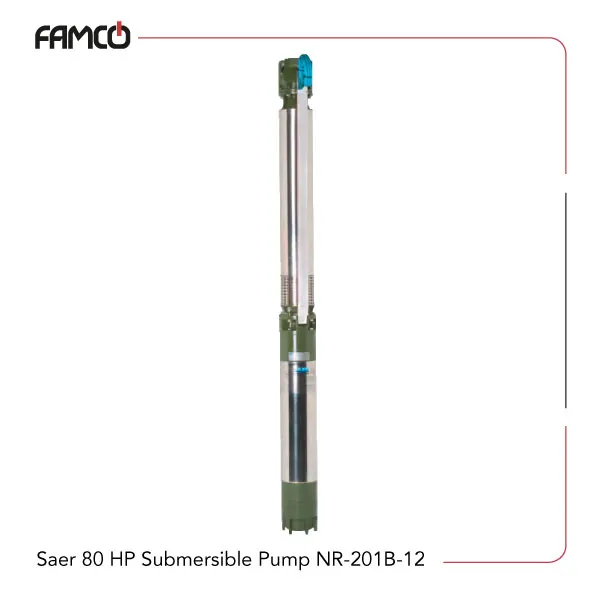

Saer 80 HP Submersible Pump NR-201B/12 Specifications
This high-performance pump operates at 60 kW (80 HP) and requires a voltage of 400V with a current of 118A. It can handle a flow rate of up to 1500 liters per minute and can achieve a maximum head of 326 meters, making it suitable for demanding applications. This Saer submersible pump is designed to work with liquids at temperatures up to 30°C and can withstand pressures up to 85 bar. It is capable of operating at an immersion depth of 300 meters below the liquid level, which is ideal for deep well or submersible tasks. Additionally, it can pass solids up to 5 mm in size, ensuring versatility in handling various types of liquids with suspended particles. Its robust construction and high efficiency make it suitable for industrial, agricultural, or municipal uses where reliable and powerful pumping is essential.
| Specification | Value |
| Power (kW) | 60 |
| Power (HP) | 80 |
| Voltage (V) | 400 |
| Current (A) | 118 |
| Maximum Flow rate (l/min) | 1500 |
| Maximum head (m) | 326 |
| Temperature of the pumped liquid | max 30°C |
| Maximum working pressure | 85 bar |
| Maximum immersion depth | 300 m under liquid level |
| Passing of solids | max 5 mm |

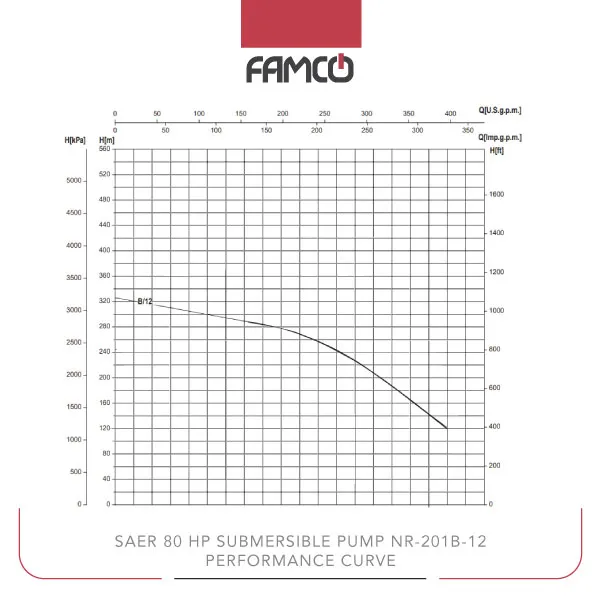

Saer 80 HP Submersible Pump NR-201B/12 Performance Data
| Q (m3/h) | 0 | 600 | 667 | 750 | 833 | 933 | 1050 | 1167 | 1333 | 1500 |
| Q (l/min) | 0 | 36 | 40 | 45 | 50 | 56 | 63 | 70 | 80 | 90 |
| H (m) | 326 | 288 | 284 | 279 | 269 | 255 | 232 | 211 | 163 | 122 |
Saer 80 HP Submersible Pump NR-201B/12 Applications
- Deep well water extraction
- Industrial liquid transfer
- Municipal water supply systems
- Agricultural irrigation
Saer 80 HP Submersible Pump NR-201B/12 Benefits
- High flow rate for efficient water transfer
- Capable of handling solids up to 5 mm
- Suitable for deep immersion up to 300 meters
- Operates under high pressure up to 85 bar
Saer 80 HP Submersible Pump NR-201B/12 Price List
| No. | Name | Price |
| 1 | Saer 80 HP Submersible Pump NR-201B/12 Price | Contact us |
