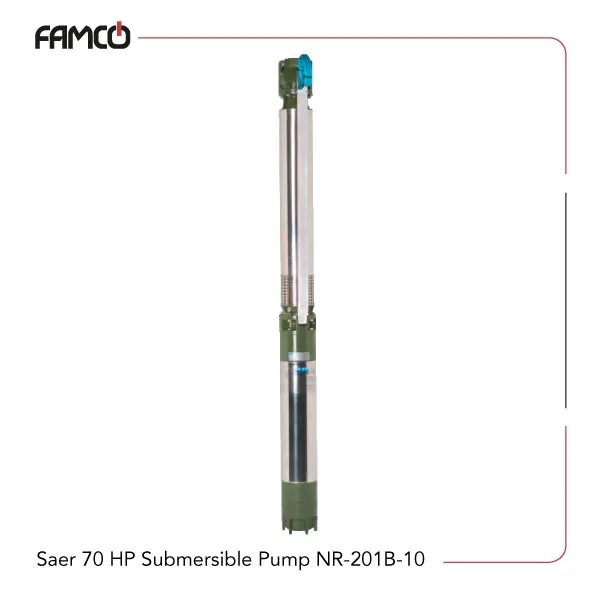

Saer 70 HP Submersible Pump NR-201B/10 Specifications
Saer 70 HP submersible pump NR-201B/10 has a 52 kW (70 HP) motor operating on a 400V supply, drawing 105A. It handles a flow rate of up to 1,500 liters per minute and reaches a maximum head of 272 meters, suitable for demanding pumping tasks. This Saer submersible pump works with liquids up to 30°C and operates under a maximum pressure of 85 bar. It can be immersed up to 300 meters below the liquid surface for deep submersion. Solid particles up to 5 mm can pass through the pump, so it can move semi-solid or particulate-containing liquids. Its design provides strong performance and resilience for industrial, municipal, and water management applications that require high flow and pressure.
| Specification | Value |
| Power (kW) | 52 |
| Power (HP) | 70 |
| Voltage (V) | 400 |
| Current (A) | 105 |
| Maximum Flow rate (l/min) | 1500 |
| Maximum head (m) | 272 |
| Temperature of the pumped liquid | max 30°C |
| Maximum working pressure | 85 bar |
| Maximum immersion depth | 300 m under liquid level |
| Passing of solids | max 5 mm |

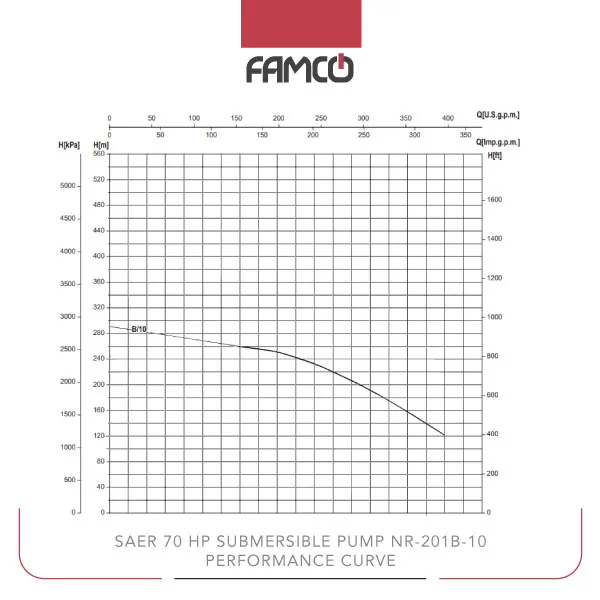

Saer 70 HP Submersible Pump NR-201B/10 Performance Data
| Q (m3/h) | 0 | 600 | 667 | 750 | 833 | 933 | 1050 | 1167 | 1333 | 1500 |
| Q (l/min) | 0 | 36 | 40 | 45 | 50 | 56 | 63 | 70 | 80 | 90 |
| H (m) | 272 | 240 | 237 | 233 | 224 | 213 | 194 | 174 | 140 | 102 |
Saer 70 HP Submersible Pump NR-201B/10 Applications
- Deep well water pumping
- Industrial fluid transfer
- Municipal water supply systems
- High-pressure liquid transfer
Saer 70 HP Submersible Pump NR-201B/10 Benefits
- High power and efficiency for demanding tasks
- Deep immersion capability up to 300 meters
- Ability to pass solids up to 5 mm
- Reliable operation under high pressure up to 85 bar
Saer 70 HP Submersible Pump NR-201B/10 Price List
| No. | Name | Price |
| 1 | Saer 70 HP Submersible Pump NR-201B/10 Price | Contact us |
