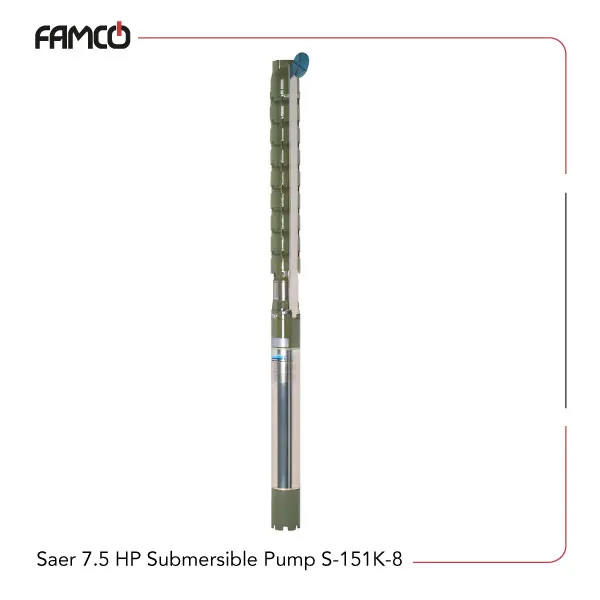

Saer 7.5 HP Submersible Pump S-151K/8

5.5 kW (7.5 HP)

Three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Saer 7.5 HP Submersible Pump S-151K/8

Saer submersible pump S-151K/8 is designed for efficient operation in underwater applications where balanced power and controlled output are required. It delivers 5.5 kW of power, equivalent to 7.5 HP, making it suitable for medium-duty pumping tasks. Operating at a voltage of 400 V, the motor draws 11 A during normal use, reflecting a stable electrical load. With a flow rate of 300 liters per minute, it supports consistent fluid movement for a wide range of installations.

Related Products

Saer 7.5 HP Submersible Pump S-151K/8 Specifications

Saer S-151K/8 submersible pump is equipped with a 5.5 kW (7.5 HP) motor and operates on a 400 V power supply, drawing 11 A during operation. It delivers a flow rate of 300 liters per minute, equal to 18 cubic meters per hour, making it suitable for applications that require a consistent and continuous water supply. With a maximum head of 114 meters, the pump is capable of handling high-pressure pumping duties with ease. Designed for fully submerged installation, the unit can be installed at depths of up to 300 meters below the liquid surface. It is intended for use with liquids at temperatures of up to 30°C and can operate under a maximum working pressure of 85 bar. This Saer submersible pump can also handle solids with particle sizes of up to 5 mm, allowing it to work effectively with fluids containing small debris or suspended particles.

Saer 7.5 HP Submersible Pump S 151K-8

Specification Value
Power (kW) 5.5
Power (HP) 7.5
Voltage (V) 400
Current (A) 11
Maximum Flow rate (l/min) 300
Maximum Flow rate (m3/h) 18
Maximum head (m) 114
Temperature of the pumped liquid max 30°C
Maximum working pressure 85 bar
Maximum immersion depth 300 m under liquid level
Passing of solids max 5 mm

Saer 7.5 HP Submersible Pump S-151K/8 Performance Data

Saer 7.5 HP Submersible Pump S 151K-8 Performance Curve

Q (m3/h) 0 4 5 6 7 8 9 10 12 15 18
Q (L/min) 0 66,7 83,3 100 117 133 150 167 200 250 300
H (m) 114 101 99 95 91 87 83 79 68 48,5 23

Saer 7.5 HP Submersible Pump S-151K/8 Applications

  • Deep well water extraction
  • Industrial fluid transfer
  • Municipal water systems
  • Agricultural irrigation



Saer 7.5 HP Submersible Pump S-151K/8 Benefits

  • High efficiency with 5.5 kW power output
  • Capable of deep immersion up to 300 meters
  • Handles solids up to 5 mm for versatile use
  • Operates under high pressure up to 85 bar



Saer 7.5 HP Submersible Pump S-151K/8 Price List

No. Name Price
1 Saer 7.5 HP Submersible Pump S-151K/8 Price Contact us
Brand

Power (HP)

Power (kW)

Voltage (V)

Current (A)

Maximum Flow Rate (m3/h)

Maximum Flow Rate (L/min)

Maximum Delivery Head (m)

Maximum Operating Pressure (bar)

Maximum immersion depth (m)
