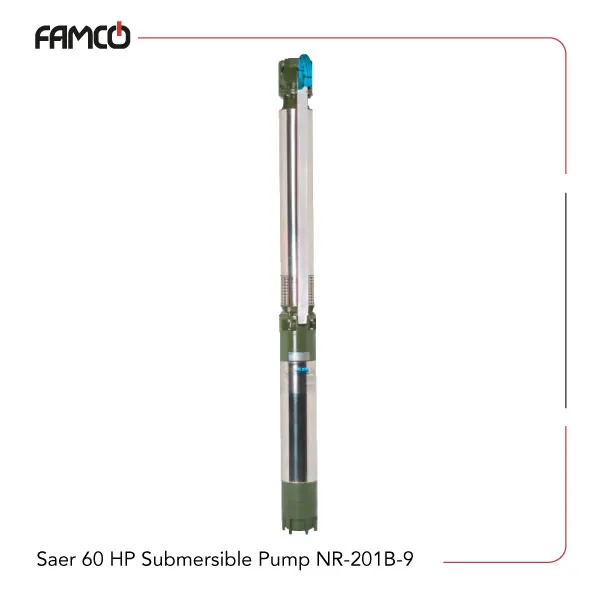

Saer 60 HP Submersible Pump NR-201B/9 Specifications
This product features a powerful 45 kW (60 HP) motor operating at 400 volts with a current of 89 amperes. It can pump up to 1500 liters per minute. The maximum head it can achieve is 245 meters, which is ideal for deep well or high-rise building projects. It is designed to handle liquids at temperatures up to 30°C, ensuring safe operation within typical water temperature ranges. This Saer submersible pump can withstand a maximum working pressure of 85 bar, providing reliable performance under high-pressure conditions. It is capable of operating at a maximum immersion depth of 300 meters below the liquid surface, making it suitable for deep underwater or borehole applications. Additionally, it can pass solids up to 5 mm in size, allowing it to handle slightly contaminated liquids or slurry without clogging. The specifications highlight its robustness and versatility for demanding industrial or municipal water transfer tasks.
| Specification | Value |
| Power (kW) | 45 |
| Power (HP) | 60 |
| Voltage (V) | 400 |
| Current (A) | 89 |
| Maximum Flow rate (l/min) | 1500 |
| Maximum head (m) | 245 |
| Temperature of the pumped liquid | max 30°C |
| Maximum working pressure | 85 bar |
| Maximum immersion depth | 300 m under liquid level |
| Passing of solids | max 5 mm |

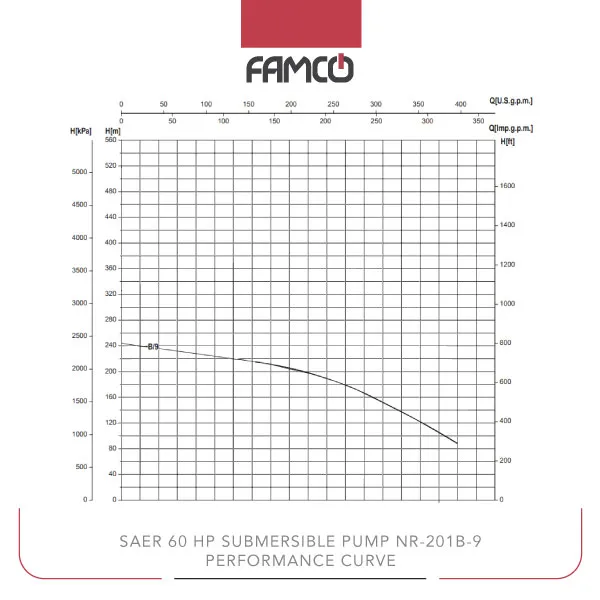

Saer 60 HP Submersible Pump NR-201B/9 Performance Data
| Q (m3/h) | 0 | 600 | 667 | 750 | 833 | 933 | 1050 | 1167 | 1333 | 1500 |
| Q (l/min) | 0 | 36 | 40 | 45 | 50 | 56 | 63 | 70 | 80 | 90 |
| H (m) | 245 | 216 | 213 | 204 | 199 | 189 | 174 | 153 | 124 | 89 |
Saer 60 HP Submersible Pump NR-201B/9 Applications
- Deep well water extraction
- Municipal water supply systems
- Industrial fluid transfer
- Underwater and borehole pumping
Saer 60 HP Submersible Pump NR-201B/9 Benefits
- High flow rate for efficient water transfer
- Capable of operating at great depths
- Handles solids up to 5 mm, reducing clogging
- Strong design for demanding environments
Saer 60 HP Submersible Pump NR-201B/9 Price List
| No. | Name | Price |
| 1 | Saer 60 HP Submersible Pump NR-201B/9 Price | Contact us |
