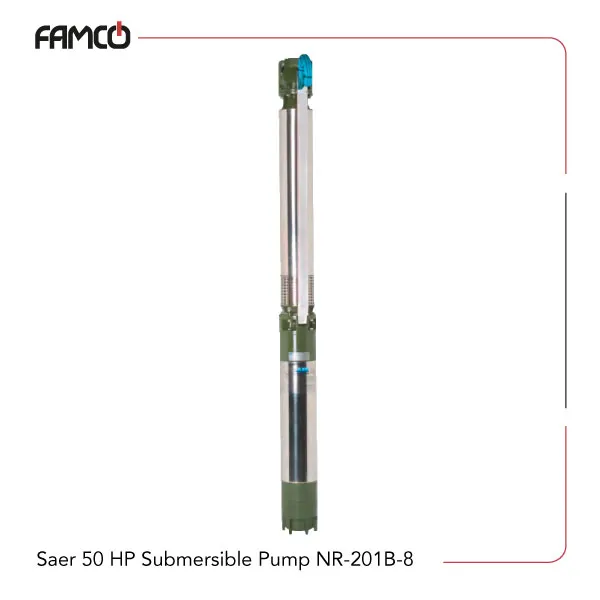

Saer 50 HP Submersible Pump NR-201B/8 Specifications
This pump is powered by a 37 kW (50 HP) motor and operates on a 400V supply, drawing 75A during operation. It delivers a flow rate of 1,500 liters per minute, supporting high-volume pumping requirements. A maximum head of 204 meters allows liquids to be lifted and transferred across substantial vertical distances. The pump is designed for handling liquids at temperatures of up to 30°C and can operate at a maximum working pressure of 85 bar. This Saer submersible pump supports immersion depths of up to 300 meters below the liquid level, allowing use in deep submersion applications. Solid particles up to 5 mm in size can pass through the pump, enabling operation with fluids that contain small particulates without blockage.
| Specification | Value |
| Power (kW) | 37 |
| Power (HP) | 50 |
| Voltage (V) | 400 |
| Current (A) | 75 |
| Maximum Flow rate (l/min) | 1500 |
| Maximum head (m) | 204 |
| Temperature of the pumped liquid | max 30°C |
| Maximum working pressure | 85 bar |
| Maximum immersion depth | 300 m under liquid level |
| Passing of solids | max 5 mm |
Saer 50 HP Submersible Pump NR-201B/8 Performance Data
| Q (m3/h) | 0 | 600 | 667 | 750 | 833 | 933 | 1050 | 1167 | 1333 | 1500 |
| Q (l/min) | 0 | 36 | 40 | 45 | 50 | 56 | 63 | 70 | 80 | 90 |
| H (m) | 204 | 184 | 180 | 176 | 168 | 160 | 148 | 132 | 112 | 74 |
Saer 50 HP Submersible Pump NR-201B/8 Applications
- Water supply systems
- Irrigation and agriculture
- Industrial fluid transfer
- Deep well pumping
Saer 50 HP Submersible Pump NR-201B/8 Benefits
- High flow rate for quick transfer
- Deep immersion capability
- Handles solids up to 5 mm
- Operates under high pressure
Saer 50 HP Submersible Pump NR-201B/8 Price List
| No. | Name | Price |
| 1 | Saer 50 HP Submersible Pump NR-201B/8 Price | Contact us |
