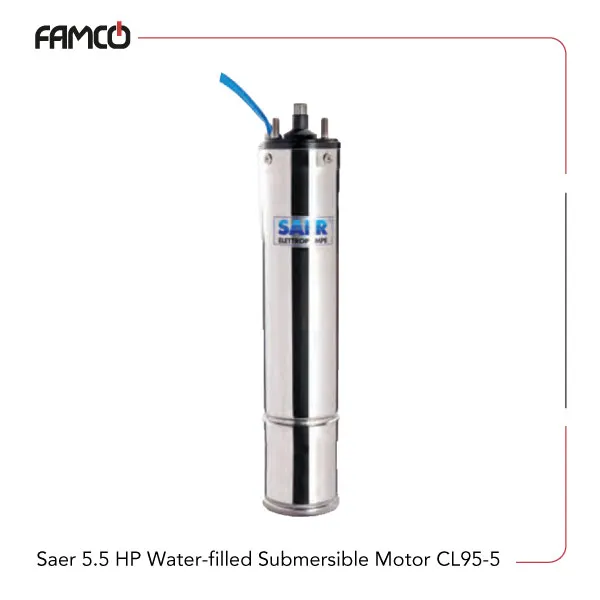

Saer 5.5 HP Water-filled Submersible Motor CL95-5 Specifications
This robust pump operates at a power of 4 kW (5.5 HP) and supports voltages between 230 and 400 volts. It can run on both single-phase and three-phase power supplies, with current ratings of 24.8 A and 10.6 A respectively. The device spins at a speed of 3000 RPM, ensuring efficient fluid movement. Its efficiency is rated at 73% for single-phase and 78% for three-phase operation, making it energy-efficient. The power factor is high at 0.9 for single-phase and 7 for three-phase, which helps in reducing energy losses. Designed to handle liquids at a maximum temperature of 35°C, it can operate at depths up to 200 meters underwater. The pump boasts an IP68 protection degree, meaning it is dust-tight and can withstand continuous immersion in water. Its insulation class is F, indicating good thermal resistance and durability for demanding environments.
| Specification | Value |
| Power (kW) | 4 |
| Power (HP) | 5.5 |
| Voltage (V) | 230-400 |
| Current (A) | 24.8 (Single-phase), 10.6 (Three-phase) |
| Speed (RPM) | 3000 |
| Efficiency (η) | 73 (Single-phase), 78 (Three-phase) |
| Power factor (Cosφ) | 0.9 (Single-phase), 0.7 (Three-phase) |
| Liquid temperature (°C) | 35 |
| Max immersion depth | 200 m |
| Protection degree | IP68 |
| Insulation class | F |
Saer 5.5 HP Water-filled Submersible Motor CL95-5 Applications
- Deep water extraction
- Irrigation systems
- Industrial fluid transfer
- Water supply systems
Saer 5.5 HP Water-filled Submersible Motor CL95-5 Benefits
- High efficiency reduces energy costs
- Suitable for deep immersion up to 200 meters
- Durable IP68 protection for harsh environments
- Versatile voltage options for flexible use
Saer 5.5 HP Water-filled Submersible Motor CL95-5 Price List
| No. | Name | Price |
| 1 | Saer 5.5 HP Water-filled Submersible Motor CL95-5 Price | Contact us |
There are no reviews yet.
