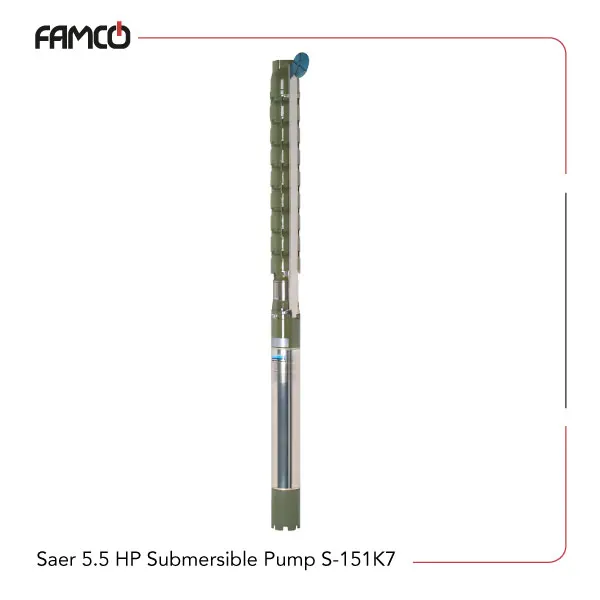

Saer 5.5 HP Submersible Pump S-151K/7 Specifications
Saer submersible pump S-151K/7 operates with a power of 4 kW (5.5 HP) and requires a voltage of 400V. It draws a current of approximately 9.3A. The device can handle a flow rate of 300 liters per minute, which translates to 18 cubic meters per hour. It can generate a maximum head of 100 meters. This Saer submersible pump is designed to work with liquids at temperatures up to 30°C and can withstand a maximum pressure of 85 bar. It is capable of being submerged up to 300 meters below the liquid surface. The pump can pass solids up to 5 mm in size, making it versatile for various fluid handling tasks. Its robust construction and high performance make it ideal for industrial, agricultural, or municipal use where reliable and efficient fluid transfer is needed.
| Specification | Value |
| Power (kW) | 4 |
| Power (HP) | 5.5 |
| Voltage (V) | 400 |
| Current (A) | 9.3 |
| Maximum Flow rate (l/min) | 300 |
| Maximum Flow rate (m3/h) | 18 |
| Maximum head (m) | 100 |
| Temperature of the pumped liquid | max 30°C |
| Maximum working pressure | 85 bar |
| Maximum immersion depth | 300 m under liquid level |
| Passing of solids | max 5 mm |

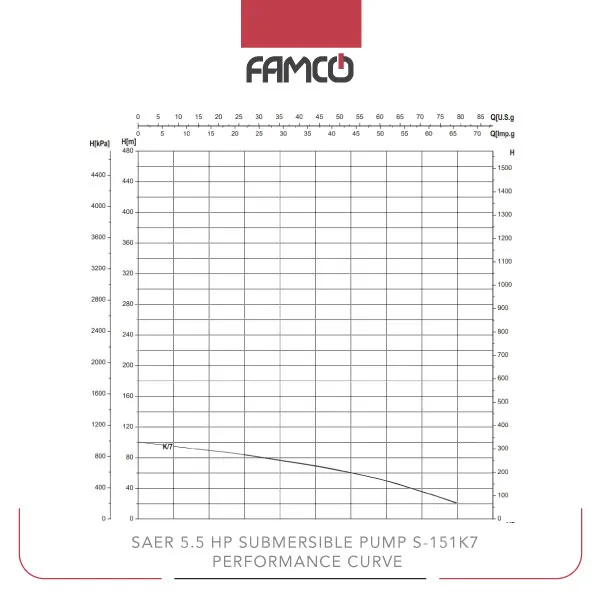

Saer 5.5 HP Submersible Pump S-151K/7 Performance Data
| Q (m3/h) | 0 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 15 | 18 |
| Q (L/min) | 0 | 66,7 | 83,3 | 100 | 117 | 133 | 150 | 167 | 200 | 250 | 300 |
| H (m) | 100 | 88 | 86 | 83 | 79 | 76 | 72 | 69 | 60 | 42,5 | 20 |
Saer 5.5 HP Submersible Pump S-151K/7 Applications
- Industrial fluid transfer
- Municipal water systems
- Agricultural irrigation
- Deep well pumping
Saer 5.5 HP Submersible Pump S-151K/7 Benefits
- High flow rate for quick fluid movement
- Deep immersion capability up to 300 meters
- Handles solids up to 5 mm for versatility
- Operates under high pressure up to 85 bar
Saer 5.5 HP Submersible Pump S-151K/7 Price List
| No. | Name | Price |
| 1 | Saer 5.5 HP Submersible Pump S-151K/7 Price | Contact us |
