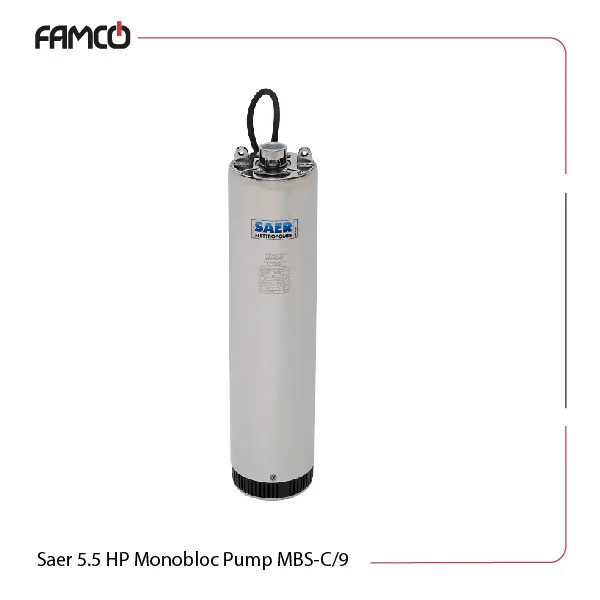

Saer 5.5 HP Monobloc Pump MBS-C/9 Specifications
This pump presents users with high efficiency and durability. It operates within a height range of 27.5 to 113 meters various applications. The frequency is set at 50 Hz that makes this Saer monobloc pump compatible with standard power supplies. Like most other Saer pumps of this power, the MBS-C/9 can handle liquid temperatures from 0 to 40 degrees Celsius and allows solid passage up to 2.5 mm. The rated maximum immersion depth reaches 70 meters, which is ideal for deep installations. This pump features an IP68 protection class that tells it is waterproof and dustproof. Mechanical seals made of graphite/alumina oxide on the motor side and alumina oxide/silicon carbide on the pump side protect this product reliably. The pump body is constructed from AISI 304 steel, while the impellers and diffusers are made from thermoplastic resin. The motor shaft of this submersible pump is crafted from AISI 431 stainless steel to provide strength and resistance to corrosion in the best possible way. It operates on three-phase voltage options of 380, 400, or 415 V, with a power output of 4 kW (5.5 HP) and an input power of 5.3 kW.
| Specification | Value |
| H (m) | 27.5-113 |
| Frequency (Hz) | 50 |
| Max. Liquid temperature (°C) | 0-40 |
| Max. Solid passage (mm) | 2.5 |
| Max. Immersion depth (m) | 70 |
| Protection class | IP68 |
| Voltage in three-phase configuration (V) | 380-400-415 V |
| P2 (kW) | 4 |
| P2 (HP) | 5.5 |
| P1 (kW) | 5.3 |
Saer 5.5 HP Monobloc Pump MBS-C/9 Materials
- Mechanical seals on motor side: Graphite/alumina oxide
- Mechanical seals on pump side: alumina oxide/silicon carbide
- Pump body: AISI 304 steel
- Impellers and diffusers: thermoplastic resin
- Motor shaft: AISI 431 stainless steel

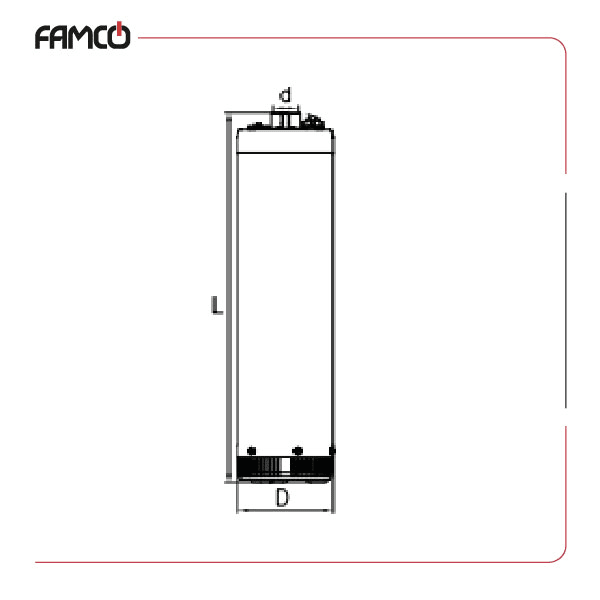

Saer 5.5 HP Monobloc Pump MBS-C/9 Dimensions and Weight
| Dimensions (mm) and Weight (kg) | |||
| D (mm) | 143 | ||
| d | 1”1/4 | ||
| Single phase (230V) | Three-phase (400V) | ||
| L (mm) | – | L (mm) | 858 |
| Weight (kg) | – | Weight (kg) | 34.8 |
Saer 5.5 HP Monobloc Pump MBS-C/9 Technical Data
| Q (m3/h) | 0 | 3 | 6 | 9 | 12 | 15 | 18 |
| Q (l/min) | 0 | 50 | 100 | 150 | 200 | 250 | 300 |
| H (m) | 113 | 112 | 108 | 92.5 | 80 | 56 | 27.5 |

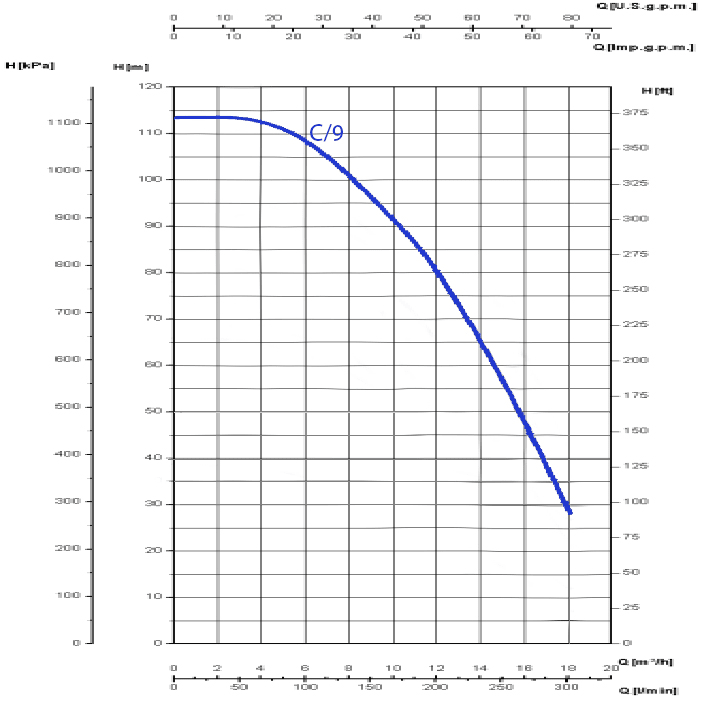

Saer 5.5 HP Monobloc Pump MBS-C/9 Performance Curve
Saer 5.5 HP Monobloc Pump MBS-C/9 Applications
- Water supply systems in residential buildings
- Irrigation systems for agriculture
- Industrial water management
- Wastewater treatment facilities
Saer 5.5 HP Monobloc Pump MBS-C/9 Benefits
- High efficiency with low energy consumption
- Durable construction for long-lasting use
- Versatile applications across different sectors
- Reliable performance in harsh conditions
Saer 5.5 HP Monobloc Pump MBS-C/9 Price List
| No. | Name | Price |
| 1 | Saer 5.5 HP Monobloc Pump MBS-C/9 Price | Contact us |
