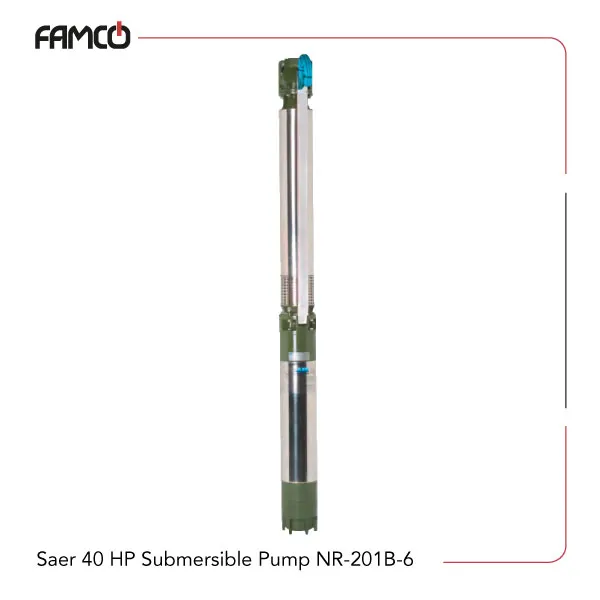

Saer 40 HP Submersible Pump NR-201B/6 Specifications
Saer submersible pump NR-201B/6 features a powerful 30 kW (40 HP) motor operating at 400 volts with a current draw of 60.2 amperes. It can handle a flow rate of up to 90 cubic meters per hour, which translates to 1500 liters per minute, making it suitable for high-volume applications. The maximum head it can achieve is 153 meters, providing significant lifting capacity. The impellers are made of durable brass, ensuring longevity and resistance to corrosion. It is designed to pump liquids at temperatures up to 30°C. The pump can withstand a maximum working pressure of 85 bar, suitable for high-pressure environments. This Saer submersible pump can operate at a maximum immersion depth of 300 meters under liquid level, allowing deep submersion in water bodies or tanks. Additionally, it can pass solids up to 5 mm in size, making it effective for handling slightly contaminated liquids or slurry. Overall, this pump combines high power, durability, and versatility, suitable for industrial, agricultural, or municipal water management tasks.
| Specification | Value |
| Power (kW) | 30 |
| Power (HP) | 40 |
| Voltage (V) | 400 |
| Current (A) | 60.2 |
| Maximum Flow rate (m3/h) | 90 |
| Maximum Flow rate (l/min) | 1500 |
| Maximum head (m) | 153 |
| Impellers | brass |
| Temperature of the pumped liquid | max 30°C |
| Maximum working pressure | 85 bar |
| Maximum immersion depth | 300 m under liquid level |
| Passing of solids | max 5 mm |

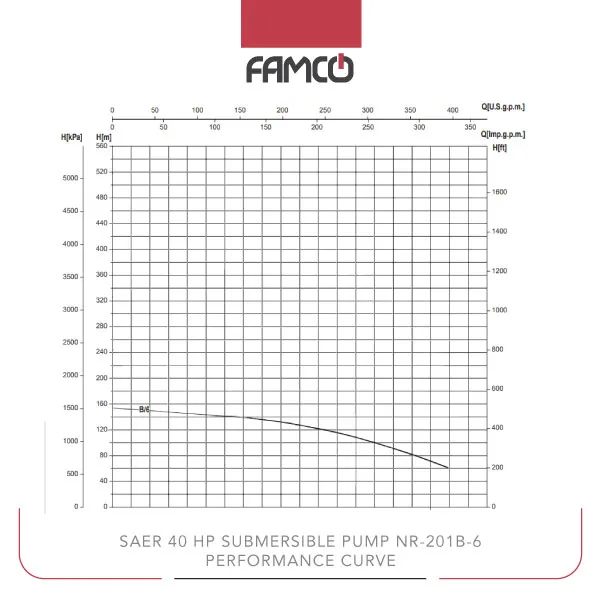

Saer 40 HP Submersible Pump NR-201B/6 Performance Data
| Q (m3/h) | 0 | 600 | 667 | 750 | 833 | 933 | 1050 | 1167 | 1333 | 1500 |
| Q (l/min) | 0 | 36 | 40 | 45 | 50 | 56 | 63 | 70 | 80 | 90 |
| H (m) | 153 | 138 | 135 | 132 | 126 | 120 | 111 | 99 | 82 | 59 |
Saer 40 HP Submersible Pump NR-201B/6 Applications
- Water transfer in industrial plants
- Irrigation systems for agriculture
- Municipal water supply management
- Deep well and borehole pumping
Saer 40 HP Submersible Pump NR-201B/6 Benefits
- High flow capacity for large volume transfer
- Durable brass impellers resist corrosion
- Suitable for deep immersion up to 300 meters
- Handles solids up to 5 mm for versatile use
Saer 40 HP Submersible Pump NR-201B/6 Price List
| No. | Name | Price |
| 1 | Saer 40 HP Submersible Pump NR-201B/6 Price | Contact us |
