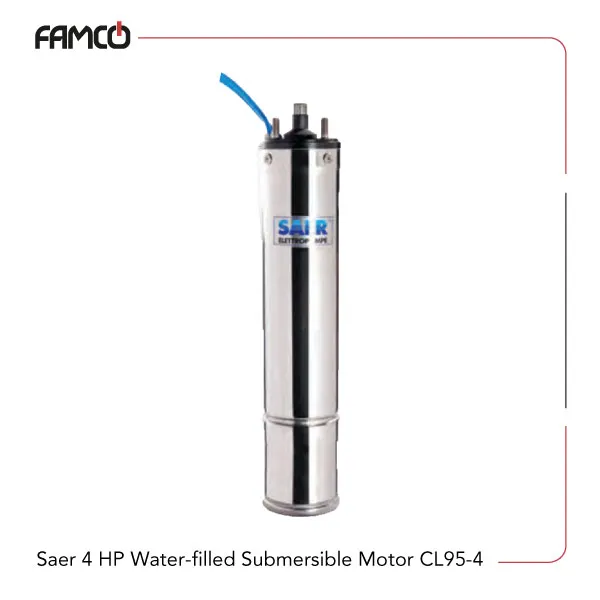

Saer 4 HP Water-filled Submersible Motor CL95-4 Specifications
This product features a power output of 3 kW (4 HP), suitable for various demanding applications. It operates within a voltage range of 230 to 400 volts, accommodating both single-phase and three-phase power supplies. The current draw is 19.1 amperes for single-phase and 7.9 amperes for three-phase configurations. It runs at a speed of 3000 RPM, ensuring efficient performance. The device boasts an efficiency of 72% in single-phase and 77% in three-phase setups, making it energy-efficient. Its power factor is 0.9 for single-phase and 0.7 for three-phase, indicating good power utilization. Designed to work in liquids up to 35°C, it can be submerged to a maximum depth of 200 meters. The protection degree is IP68, meaning it is dust-tight and waterproof, suitable for harsh environments. The insulation class is F, providing high safety and durability during operation.
| Specification | Value |
| Power (kW) | 3 |
| Power (HP) | 4 |
| Voltage (V) | 230-400 |
| Current (A) | 19.1 (Single-phase), 7.9 (Three-phase) |
| Speed (RPM) | 3000 |
| Efficiency (η) | 72 (Single-phase), 77 (Three-phase) |
| Power factor (Cosφ) | 0.9 (Single-phase), 0.7 (Three-phase) |
| Liquid temperature (°C) | 35 |
| Max immersion depth | 200 m |
| Protection degree | IP68 |
| Insulation class | F |
Saer 4 HP Water-filled Submersible Motor CL95-4 Applications
- Industrial liquid transfer
- Water circulation systems
- Deep well pumping
- Aquaculture and marine applications
Saer 4 HP Water-filled Submersible Motor CL95-4 Benefits
- High efficiency reduces energy costs
- Durable IP68 protection for harsh environments
- Flexible power options for different setups
- Maximum immersion depth of 200 meters for deep applications
Saer 4 HP Water-filled Submersible Motor CL95-4 Price List
| No. | Name | Price |
| 1 | Saer 4 HP Water-filled Submersible Motor CL95-4 Price | Contact us |
