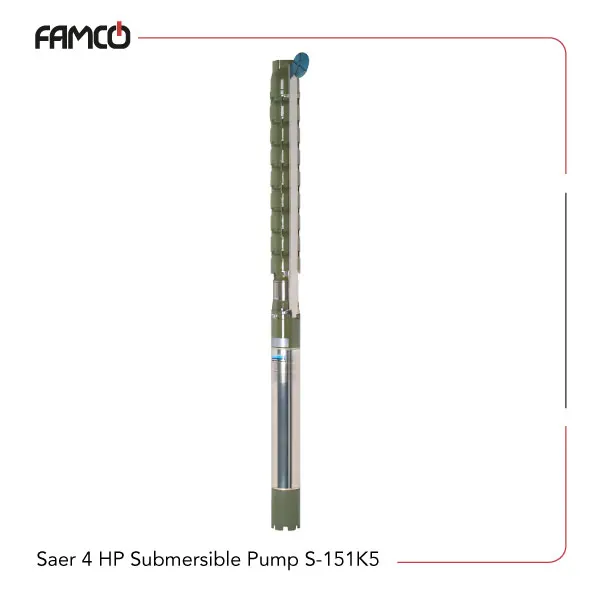

Saer 4 HP Submersible Pump S-151K/5 Specifications
Saer 4 HP submersible pump S-151K/5 operates with a power rating of 3 kW (4 HP) and is designed for a 400 V power supply. It draws a current of 7.6 A and delivers a flow rate of 300 liters per minute, equivalent to 18 cubic meters per hour. With a maximum head of 71 meters, it is well suited for applications that require elevated discharge pressure. The unit is intended for pumping liquids at temperatures of up to 30°C and can handle a maximum working pressure of 85 bar. Saer submersible pump is suitable for submersible use at depths of up to 300 meters, making it an effective choice for deep-well installations. This Saer submersible pump is capable of passing solids with particle sizes of up to 5 mm, allowing it to work with lightly contaminated liquids or slurry.
| Specification | Value |
| Power (kW) | 3 |
| Power (HP) | 4 |
| Voltage (V) | 400 |
| Current (A) | 7.6 |
| Maximum Flow rate (l/min) | 300 |
| Maximum Flow rate (m3/h) | 18 |
| Maximum head (m) | 71 |
| Temperature of the pumped liquid | max 30°C |
| Maximum working pressure | 85 bar |
| Maximum immersion depth | 300 m under liquid level |
| Passing of solids | max 5 mm |

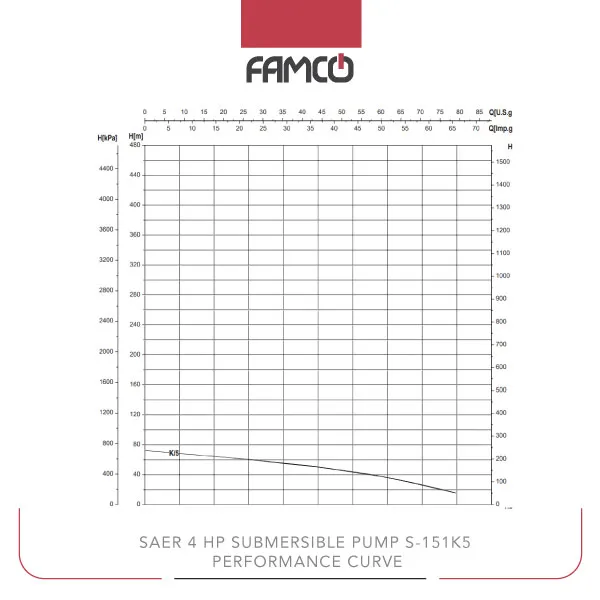

Saer 4 HP Submersible Pump S-151K/5 Performance Data
| Q (m3/h) | 0 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 15 | 18 |
| Q (l/min) | 0 | 66,7 | 83,3 | 100 | 117 | 133 | 150 | 167 | 200 | 250 | 300 |
| H (m) | 71 | 63 | 62 | 59 | 57 | 54 | 51 | 49 | 42 | 30 | 14 |
Saer 4 HP Submersible Pump S-151K/5 Applications
- Deep well water extraction
- Industrial liquid transfer
- Municipal water systems
- Agricultural irrigation
Saer 4 HP Submersible Pump S-151K/5 Benefits
- High flow rate for efficient water transfer
- Deep immersion capability up to 300 meters
- Handles solids up to 5 mm for versatile use
- Operates under high pressure up to 85 bar
Saer 4 HP Submersible Pump S-151K/5 Price List
| No. | Name | Price |
| 1 | Saer 4 HP Submersible Pump S-151K/5 Price | Contact us |
