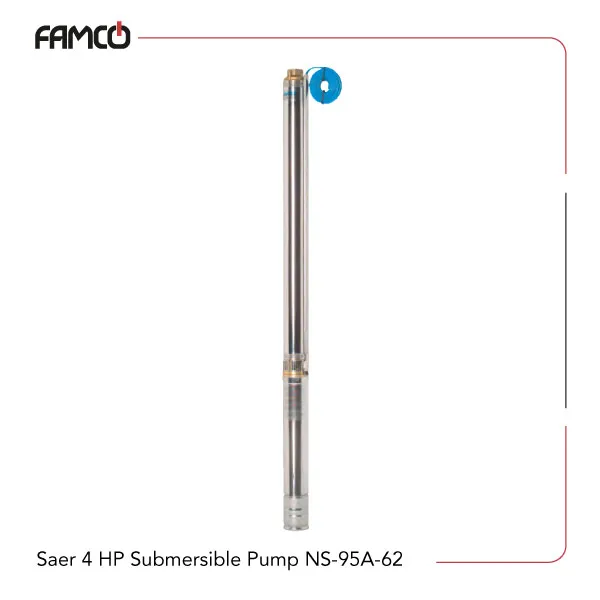

Saer 4 HP Submersible Pump NS-95A/62 Specifications
Saer submersible pump NS-95A/62 has a power output of 3 kW (4 HP) and suits a wide range of industrial applications. It operates within a voltage range of 230 to 400 volts and supports single-phase and three-phase power supplies, with current ratings of 19.1 A and 7.8 A respectively. This Saer submersible pump delivers a flow rate of 3.2 cubic meters per hour, equivalent to 53.3 liters per minute, suitable for efficient fluid transfer. The maximum head reaches 314 meters, which supports liquid transfer across substantial vertical distances. The pump operates with liquids at temperatures from 0°C to 35°C and withstands a maximum working pressure of 34 bar. It can function at immersion depths of up to 300 meters below the liquid level, suitable for deep underwater and fully submerged installations. This combination of power and operating capability suits demanding industrial and commercial applications.
| Specification | Value |
| Power (kW) | 3 |
| Power (HP) | 4 |
| Voltage (V) | 230-400 |
| Current (A) | 7.8 (three-phase), 19.1 (single-phase) |
| Maximum Flow rate (m3/h) | 3.2 |
| Maximum Flow rate (l/min) | 53.3 |
| Maximum head (m) | 314 |
| Liquid Temperature | min 0°C, max 35°C |
| Maximum operating pressure | 34 bar |
| Maximum immersion depth | 300 m under liquid level |

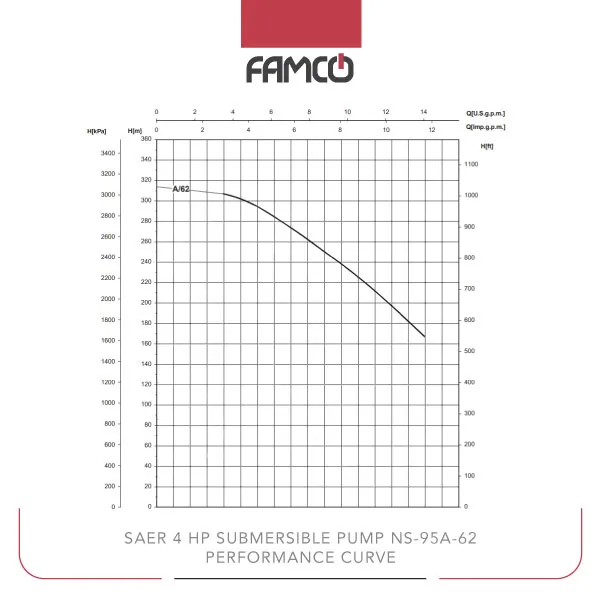

Saer 4 HP Submersible Pump NS-95A/62 Performance Data
| Q (m3/h) | 0 | 0.8 | 1 | 1.25 | 1.6 | 2 | 2.5 | 3.2 |
| Q (l/min) | 0 | 13.3 | 16.7 | 20.8 | 26.7 | 33.3 | 41,7 | 53,3 |
| H (m) | 314 | 307 | 304 | 293 | 274 | 249 | 221 | 167 |
Saer 4 HP Submersible Pump NS-95A/62 Applications
- Water supply and distribution systems
- Deep underwater or submerged operations
- Industrial fluid transfer tasks
- High-pressure liquid pumping
Saer 4 HP Submersible Pump NS-95A/62 Benefits
- High flow rate for efficient liquid transfer
- Flexible voltage options for versatile use
- Deep immersion capability for underwater tasks
- Durable construction for long-term operation
Saer 4 HP Submersible Pump NS-95A/62 Price List
| No. | Name | Price |
| 1 | Saer 4 HP Submersible Pump NS-95A/62 Price | Contact us |
