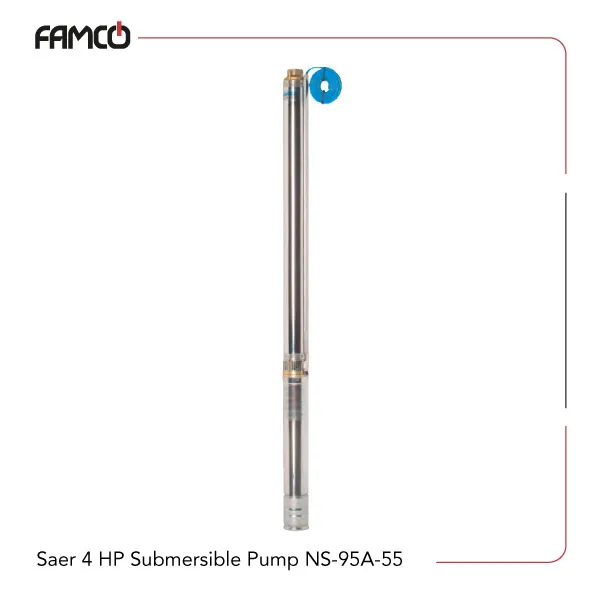

Saer 4 HP Submersible Pump NS-95A/55 Specifications
Saer submersible pump NS-95A/55 has a power rating of 3 kW (4 HP) and suits demanding applications. It operates within a voltage range of 230 to 400 volts and supports single-phase and three-phase power supplies, with current ratings of 19.1 A for single-phase and 7.8 A for three-phase operation. This Saer submersible pump delivers a flow rate of 3.2 cubic meters per hour, equivalent to 53.3 liters per minute, suitable for efficient fluid transfer. The maximum head reaches 278 meters, which supports high-lift requirements. The pump works with liquids at temperatures from 0°C to 35°C and withstands a maximum working pressure of 34 bar. It can operate at immersion depths of up to 300 meters below the liquid surface, suitable for deep submersion and underwater installations.
| Specification | Value |
| Power (kW) | 3 |
| Power (HP) | 4 |
| Voltage (V) | 230-400 |
| Current (A) | 7.8 (three-phase), 19.1 (single-phase) |
| Maximum Flow rate (m3/h) | 3.2 |
| Maximum Flow rate (l/min) | 53.3 |
| Maximum head (m) | 278 |
| Liquid Temperature | min 0°C, max 35°C |
| Maximum working pressure | 34 bar |
| Maximum immersion depth | 300 m under liquid level |

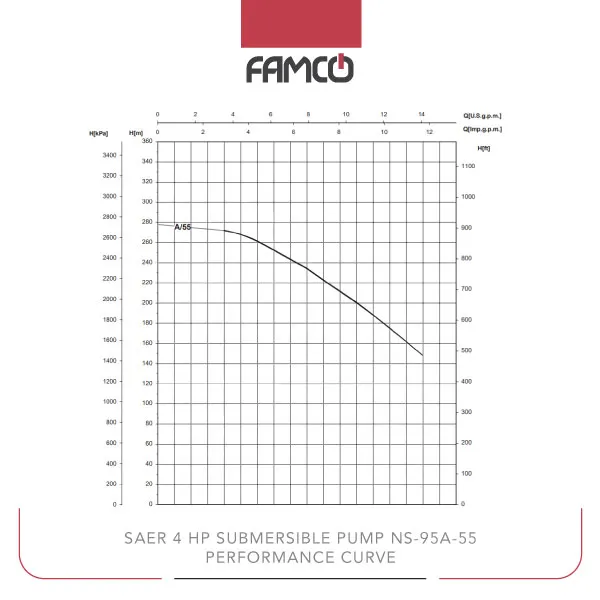

Saer 4 HP Submersible Pump NS-95A/55 Performance Data
| Q (m3/h) | 0 | 0.8 | 1 | 1.25 | 1.6 | 2 | 2.5 | 3.2 |
| Q (l/min) | 0 | 13.3 | 16.7 | 20.8 | 26.7 | 33.3 | 41,7 | 53,3 |
| H (m) | 278 | 272 | 269 | 260 | 243 | 222 | 196 | 148 |
Saer 4 HP Submersible Pump NS-95A/55 Applications
- Deep well water extraction
- Irrigation systems
- Industrial fluid transfer
- Underwater and submersible operations
Saer 4 HP Submersible Pump NS-95A/55 Benefits
- High flow rate for efficient water transfer
- Deep immersion capability up to 300 meters
- Operates under high pressure up to 34 bar
- Flexible voltage options for different power supplies
Saer 4 HP Submersible Pump NS-95A/55Price List
| No. | Name | Price |
| 1 | Saer 4 HP Submersible Pump NS-95A/55 Price | Contact us |
