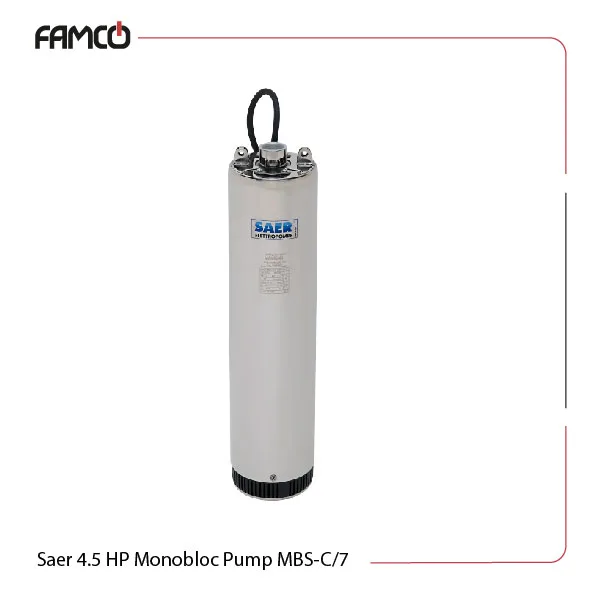

Saer 4.5 HP Monobloc Pump MBS-C/7 Specifications
This product features a height range of 20.5 to 89.5 meters for various applications. This Saer pump operates at a frequency of 50 Hz and can handle liquid temperatures from 0 to 40 °C. The maximum solid passage is 2.5 mm, for utmost efficient operation even with small particles. The product’s immersion depth of up to 70 meters is suitable for deep installations. The protection class is IP68 to provide excellent resistance to dust and water. Mechanical seals in these submersible pumps are placed at multiple places and include a graphite/alumina oxide seal on the motor side and an alumina oxide/silicon carbide seal on the pump side, enhancing durability. The pump body is made from AISI 304 steel, while the impellers and diffusers are crafted from durable thermoplastic resin. The motor shaft is constructed from AISI 431 stainless steel to enhance strength and longevity. It is available in both three-phase (380-400-415 V) and single-phase (220-230 V/230-240 V) versions. The power output is rated at 3.3 kW (4.5 HP) for P2 and 4.5 kW for P1.
| Specification | Value | |
| H (m) | 20.5-89.5 | |
| Frequency (Hz) | 50 | |
| Max. Liquid temperature (°C) | 0-40 | |
| Max. Solid passage (mm) | 2.5 | |
| Max. Immersion depth (m) | 70 | |
| Protection class | IP68 | |
| Voltage (V) | Three-phase versions | 380-400-415 V |
| Single-phase versions | 220-230 V/230-240 V | |
| P2 (kW) | 3.3 | |
| P2 (HP) | 4.5 | |
| P1 (kW) | 4.5 | |
Saer 4.5 HP Monobloc Pump MBS-C/7 Materials
- Mechanical seals on motor side: Graphite/alumina oxide
- Mechanical seals on pump side: alumina oxide/silicon carbide
- Pump body: AISI 304 steel
- Impellers and diffusers: thermoplastic resin
- Motor shaft: AISI 431 stainless steel

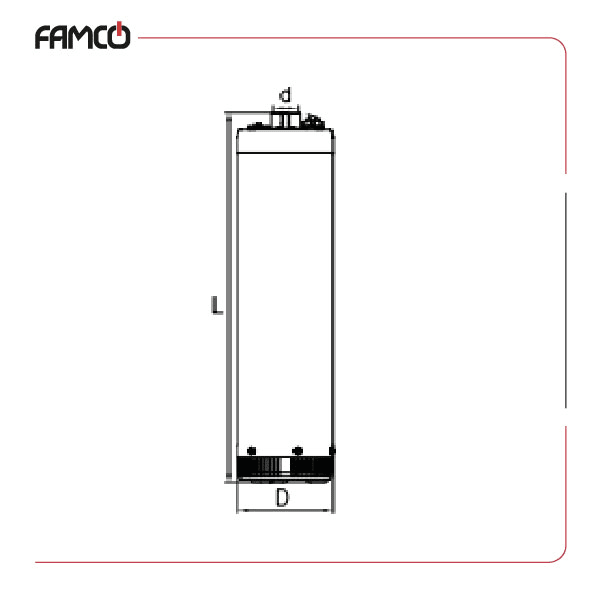

Saer 4.5 HP Monobloc Pump MBS-C/7 Dimensions and Weight
| Dimensions (mm) and Weight (kg) | |||
| D (mm) | 143 | ||
| d | 1”1/4 | ||
| Single phase (230V) | Three-phase (400V) | ||
| L (mm) | 792 | L (mm) | 762 |
| Weight (kg) | 34.3 | Weight (kg) | 31.3 |
Saer 4.5 HP Monobloc Pump MBS-C/7 Technical Data
| Q (m3/h) | 0 | 3 | 6 | 9 | 12 | 15 | 18 |
| Q (l/min) | 0 | 50 | 100 | 150 | 200 | 250 | 300 |
| H (m) | 89.5 | 89 | 85 | 74 | 59 | 42.5 | 20.5 |

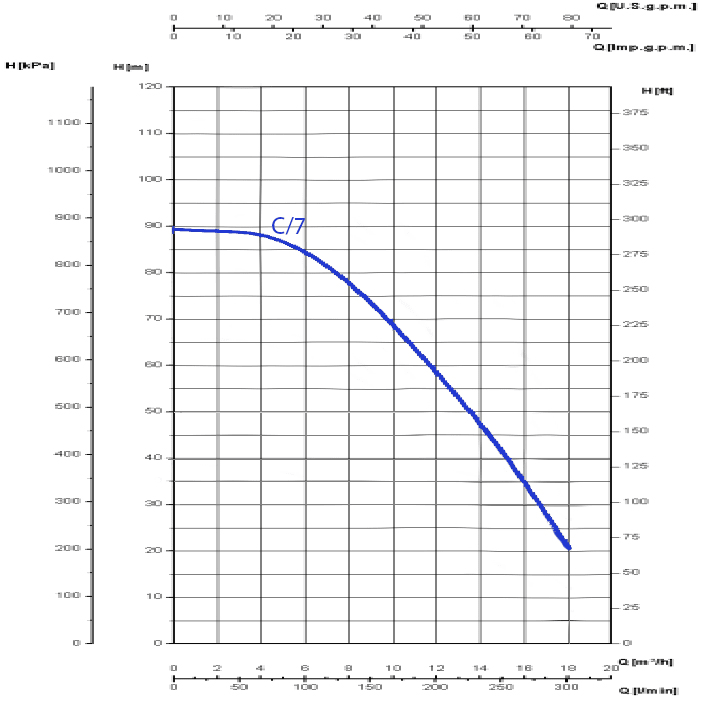

Saer 4.5 HP Monobloc Pump MBS-C/7 Performance Curve
Saer 4.5 HP Monobloc Pump MBS-C/7 Applications
- Water supply systems
- Irrigation and drainage
- Industrial fluid transfer
- Wastewater management
Saer 4.5 HP Monobloc Pump MBS-C/7 Benefits
- High durability with AISI 304 steel body
- Excellent sealing for long-term performance
- Versatile voltage options for different setups
- Efficient operation in various liquid conditions
Saer 4.5 HP Monobloc Pump MBS-C/7 Price List
| No. | Name | Price |
| 1 | Saer 4.5 HP Monobloc Pump MBS-C/7 Price | Contact us |
