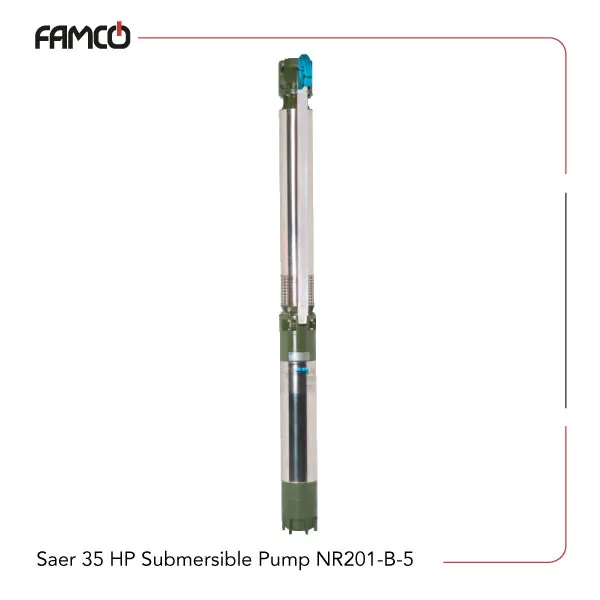

Saer 35 HP Submersible Pump NR201-B/5

Saer 35 HP Submersible Pump NR201-B/5 Specifications

Saer submersible pump NR201-B/5 is driven by a 26 kW (35 HP) motor operating on a 400V power supply and draws 53.3A during operation. It supports a flow rate of up to 90 cubic meters per hour, equivalent to 1,500 liters per minute, suitable for high-volume pumping operations. A maximum head of 128 meters provides strong vertical lift capability for demanding applications. The impellers are constructed from brass, offering excellent resistance to wear and corrosion. This Saer submersible pump is designed for liquids with temperatures up to 30°C and can operate at a maximum working pressure of 85 bar. It supports immersion depths of up to 300 meters below the liquid level, allowing use in deep-well and submersible installations. Solid particles up to 5 mm in size can pass through the pump, enabling operation with slightly contaminated liquids or light slurry. This unit is well suited for industrial, agricultural, and municipal systems that require high flow rates and elevated pressure performance.

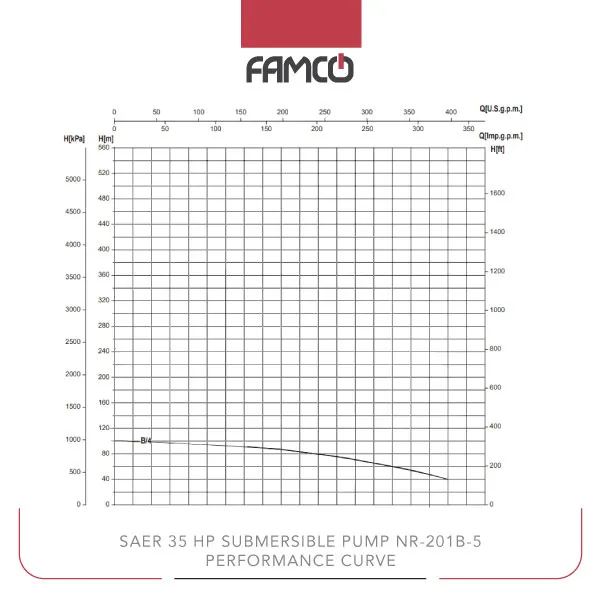

Saer 35 HP Submersible Pump NR201-B/5 Performance Data

Saer 35 HP Submersible Pump NR201-B/5 Applications

• Water supply and distribution systems
• Irrigation and agricultural watering
• Municipal water treatment plants
• Deep well and underground water extraction

Saer 35 HP Submersible Pump NR201-B/5 Benefits

• High flow rate for efficient water transfer
• Durable brass impellers resist corrosion
• Deep immersion capability up to 300 meters
• Handles solids up to 5 mm for versatile use

Saer 35 HP Submersible Pump NR201-B/5 Price List
