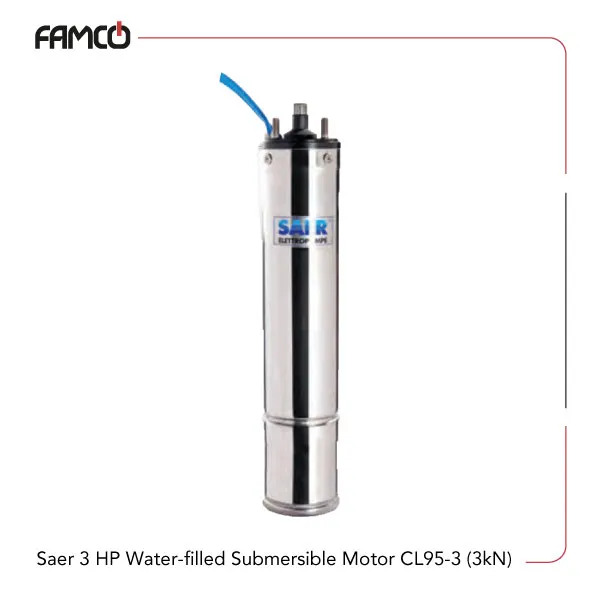

Saer 3 HP Water-filled Submersible Motor CLE95-3 (3kN) Specifications
This product features a power output of 2.2 kW, equivalent to 3 HP, suitable for various demanding applications. It operates within a voltage range of 230 to 400 volts, making it versatile for different electrical setups. The device consumes a current of 16.2 amperes in single-phase mode and 6.7 amperes in three-phase mode, ensuring efficient power usage. It runs at a speed of 3000 RPM, providing reliable performance for continuous operation. The efficiency rates are 67% for single-phase and 71% for three-phase configurations, indicating good energy utilization. The power factor is 0.8 in single-phase and 0.6 in three-phase, which affects the overall power quality. Designed to handle liquids at a maximum temperature of 35°C, it can be submerged up to 200 meters deep. This Saer submersible motor boasts an IP68 protection degree, ensuring complete protection against dust and water ingress. Its insulation class is F, which provides a high level of thermal endurance, suitable for prolonged use in harsh environments.
| Specification | Value |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Voltage (V) | 230-400 |
| Current (A) | 16.2 (Single-phase), 6.7 (Three-phase) |
| Speed (RPM) | 3000 |
| Efficiency (η) | 67 (Single-phase), 71 (Three-phase) |
| Power factor (Cosφ) | 0.8 (Single-phase), 0.6 (Three-phase) |
| Liquid temperature (°C) | 35 |
| Max immersion depth | 200 m |
| Protection degree | IP68 |
| Insulation class | F |
Saer 3 HP Water-filled Submersible Motor CLE95-3 (3kN) Applications
- Deep-water pumping for industrial use
- Irrigation systems in agriculture
- Water supply for remote locations
- Aquaculture and fish farming
Saer 3 HP Water-filled Submersible Motor CLE95-3 (3kN) Benefits
- High durability with IP68 protection
- Efficient energy consumption with good power factor
- Suitable for deep immersion up to 200 meters
- Versatile voltage options for different setups
Saer 3 HP Water-filled Submersible Motor CLE95-3 (3kN) Price List
| No. | Name | Price |
| 1 | Saer 3 HP Water-filled Submersible Motor CLE95-3 (3kN) Price | Contact us |
