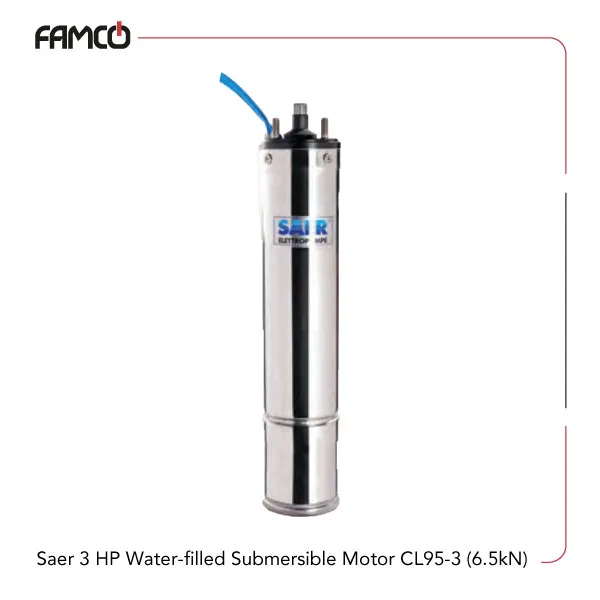

Saer 3 HP Water-filled Submersible Motor CL95-3 (6.5kN) Specifications
This product features a power output of 2.2 kW, equivalent to 3 HP, suitable for various demanding applications. It operates within a voltage range of 230 to 400 volts, accommodating both single-phase and three-phase power supplies. The current draw is 14.4 amperes for single-phase setups and 5.8 amperes for three-phase systems, ensuring efficient energy use. The motor runs at a speed of 3000 RPM, providing reliable performance for continuous operation. Its efficiency is rated at 72% for single-phase and 77% for three-phase configurations, which helps in reducing energy consumption. The power factor is high at 0.9 for single-phase and 0.7 for three-phase, indicating good electrical performance. Designed to operate in liquids up to 35°C, the device can be submerged to a maximum depth of 200 meters, making it ideal for deep water applications. It boasts an IP68 protection degree, ensuring complete protection against dust and water ingress, suitable for harsh environments. The insulation class F further enhances durability and safety during operation, providing resistance to high temperatures and electrical stresses.
| Specification | Value |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Voltage (V) | 230-400 |
| Current (A) | 14.4 (Single-phase), 5.8 (Three-phase) |
| Speed (RPM) | 3000 |
| Efficiency (η) | 72 (Single-phase), 77 (Three-phase) |
| Power factor (Cosφ) | 0.9 (Single-phase), 0.7 (Three-phase) |
| Liquid temperature (°C) | 35 |
| Max immersion depth | 200 m |
| Protection degree | IP68 |
| Insulation class | F |
Saer 3 HP Water-filled Submersible Motor CL95-3 (6.5kN) Applications
- Water pumping systems
- Deep well applications
- Industrial liquid transfer
- Agricultural irrigation systems
Saer 3 HP Water-filled Submersible Motor CL95-3 (6.5kN) Benefits
- High efficiency reduces energy costs
- Suitable for deep water applications up to 200 meters
- Robust IP68 protection for harsh environments
- Flexible power options for different setups
Saer 3 HP Water-filled Submersible Motor CL95-3 (6.5kN) Price List
| No. | Name | Price |
| 1 | Saer 3 HP Water-filled Submersible Motor CL95-3 (6.5kN) Price | Contact us |
