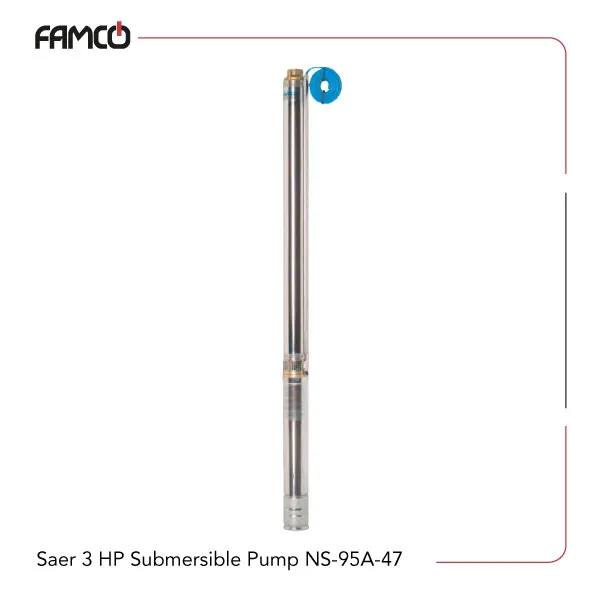

Saer 3 HP Submersible Pump NS-95A/47

2.2 kW (3 HP)

Single- and three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Saer Pumps, Saer Submersible Pump

Overview of Saer 3 HP Submersible Pump NS-95A/47

Saer submersible pump NS-95A/47 is designed to handle a variety of water-moving tasks with practical efficiency. It provides 2.2 kW of power, equivalent to 3 HP, and can operate across a voltage range of 230–400 V, making it adaptable to different electrical setups. The pump draws 6.3 A when connected to a three-phase supply and 14.7 A on a single-phase connection, giving a clear picture of its energy use depending on the system. These specifications make it a versatile choice for applications where steady performance and flexible installation options are important.

Saer 3 HP Submersible Pump NS-95A/47 Specifications

This product features a powerful 2.2 kW (3 HP) motor, suitable for various demanding applications. It operates within a voltage range of 230 to 400 volts, accommodating both single-phase and three-phase power supplies with currents of 14.7 A and 6.3 A respectively. This Saer submersible pump delivers a flow rate of 3.2 cubic meters per hour, equivalent to 53.3 liters per minute, making it efficient for fluid transfer tasks. It can generate a maximum head of 238 meters, enabling it to lift liquids over significant heights. The device is designed to handle liquids at temperatures between 0°C and 35°C, ensuring versatility in different environments. It can withstand a maximum working pressure of 34 bar, suitable for high-pressure applications. Additionally, the pump can operate at a maximum immersion depth of 300 meters under the liquid level, making it ideal for deep submersion tasks. Its robust construction and high-performance specifications make it suitable for industrial, agricultural, and water management uses, providing reliable and efficient operation in various settings.

Specification	Value
Power (kW)	2.2
Power (HP)	3
Voltage (V)	230-400
Current (A)	6.3 (three-phase), 14.7 (single-phase)
Flow rate (m3/h)	3.2
Flow rate (l/min)	53.3
Maximum head (m)	238
Liquid Temperature	min 0°C, max 35°C
Maximum working pressure	34 bar
Maximum immersion depth	300 m under liquid level

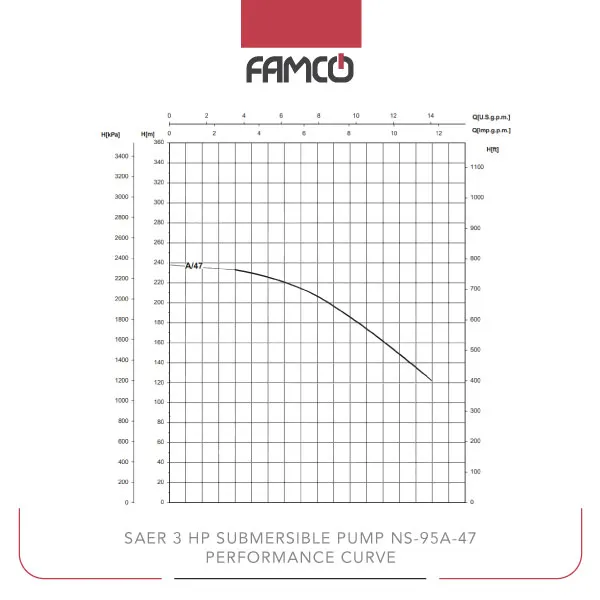

Saer 3 HP Submersible Pump NS-95A/47 Performance Data

Q (m3/h)	0	0,8	1	1,25	1,6	2	2,5	3,2
Q (l/min)	0	13,3	16,7	20,8	26,7	33,3	41,7	53,3
H (m)	238	233	230	225	215	197	169	122

Saer 3 HP Submersible Pump NS-95A/47 Applications

Deep well water extraction
Industrial fluid transfer
Agricultural irrigation systems
High-pressure water systems

Saer 3 HP Submersible Pump NS-95A/47 Benefits

High power efficiency with 2.2 kW motor
Flexible voltage options for various power supplies
Deep immersion capability up to 300 meters
High maximum head of 238 meters for versatile applications

Saer 3 HP Submersible Pump NS-95A/47Price List

No.	Name	Price
1	Saer 3 HP Submersible Pump NS-95A/47 Price	Contact us

Brand	Saer
Power (HP)	3
Power (kW)	2.2
Voltage (V)	230-400
Current (A)	14.7, 6.3
Maximum Flow Rate (L/min)	53.3
Maximum Flow Rate (m3/h)	3.2
Maximum Delivery Head (m)	238
Maximum Liquid Temperature (°C)	35
Maximum Operating Pressure (bar)	34
Maximum immersion depth (m)	300
