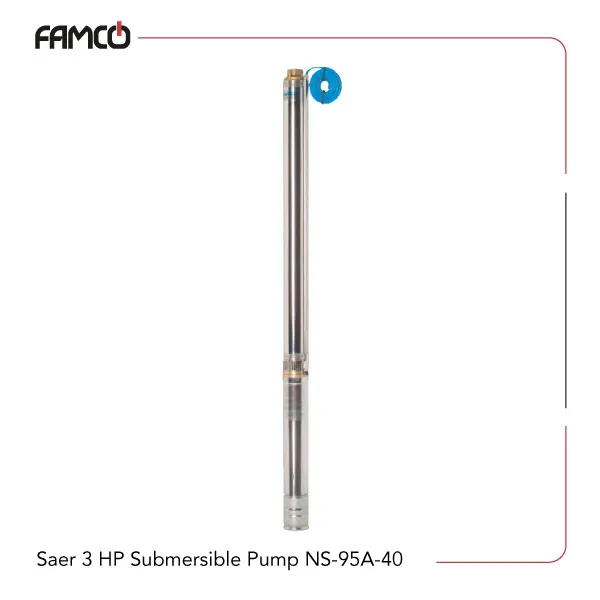

Saer 3 HP Submersible Pump NS-95A/40 Specifications
This pump has a power rating of 2.2 kW (3 HP) and suits both industrial and domestic applications. It operates within a voltage range of 230 to 400 volts and draws 6.3 amperes in a three-phase system or 14.7 amperes with a single-phase supply. The pump delivers a flow rate of 3.2 cubic meters per hour, equivalent to 53.3 liters per minute, suitable for efficient liquid transfer. The maximum head reaches 203 meters, which supports liquid movement across substantial vertical distances. This Saer submersible pump works with liquids at temperatures from 0°C to 35°C and can withstand a maximum operating pressure of 34 bar. It can operate at immersion depths of up to 300 meters below the liquid surface, suitable for deep-water and submersible installations in various settings.
| Specification | Value |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Voltage (V) | 230-400 |
| Current (A) | 6.3 (three-phase), 14.7 (single-phase) |
| Flow rate (m3/h) | 3.2 |
| Flow rate (l/min) | 53.3 |
| Maximum head (m) | 203 |
| Liquid Temperature | min 0°C, max 35°C |
| Maximum working pressure | 34 bar |
| Maximum immersion depth | 300 m under liquid level |
Saer 3 HP Submersible Pump NS-95A/40 Performance Data
| Q (m3/h) | 0 | 0,8 | 1 | 1,25 | 1,6 | 2 | 2,5 | 3,2 |
| Q (l/min) | 0 | 13,3 | 16,7 | 20,8 | 26,7 | 33,3 | 41,7 | 53,3 |
| H (m) | 203 | 198 | 196 | 193 | 184 | 171 | 147 | 108 |
Saer 3 HP Submersible Pump NS-95A/40 Applications
- Deep well water extraction
- Irrigation systems in agriculture
- Industrial fluid transfer
- High-pressure water supply systems
Saer 3 HP Submersible Pump NS-95A/40 Benefits
- High flow rate for efficient liquid transfer
- Deep immersion capability up to 300 meters
- Operates under high pressure up to 34 bar
- Versatile voltage support for different setups
Saer 3 HP Submersible Pump NS-95A/40 Price List
| No. | Name | Price |
| 1 | Saer 3 HP Submersible Pump NS-95A/40 Price | Contact us |
