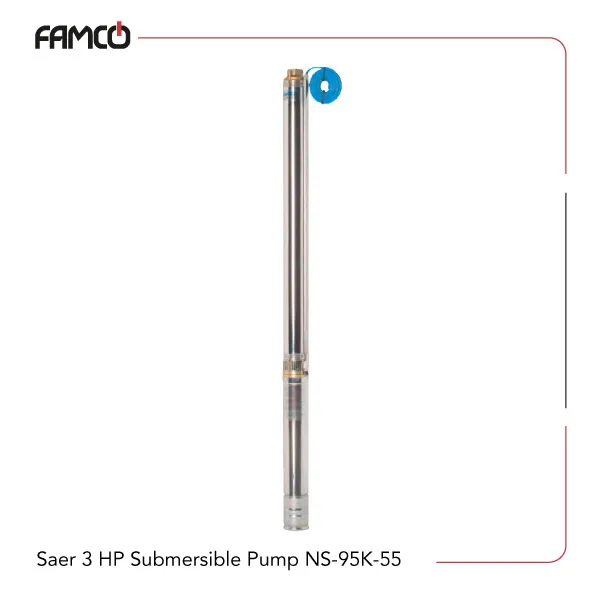

Saer 3 HP Submersible NS-95K/55 Specifications
This pump has a power rating of 2.2 kW (3 HP) and suits both industrial and residential applications. It operates within a voltage range of 230 to 400 volts and supports single-phase and three-phase power supplies, with current ratings of 14.7 A and 6.3 A respectively. The pump delivers a flow rate of 2 cubic meters per hour, equivalent to 33.3 liters per minute, suitable for efficient liquid transfer. The maximum head reaches 316 meters, which allows lifting liquids over significant heights. This Saer submersible pump works with liquids at temperatures from 0°C to 35°C and withstands a maximum pressure of 34 bar. It can operate at depths of up to 300 meters below the liquid surface, suitable for deep-well or borehole installations. The solid construction and high-performance specifications support demanding applications in water supply, irrigation, and industrial systems.
| Specification | Value |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Voltage (V) | 230-400 |
| Current (A) | 6.3 (three-phase), 14.7 (single-phase) |
| Maximum Flow rate (m3/h) | 2 |
| Maximum Flow rate (l/min) | 33.3 |
| Maximum head (m) | 316 |
| Liquid Temperature | min 0°C, max 35°C |
| Maximum working pressure | 34 bar |
| Maximum immersion depth | 300 m under liquid level |

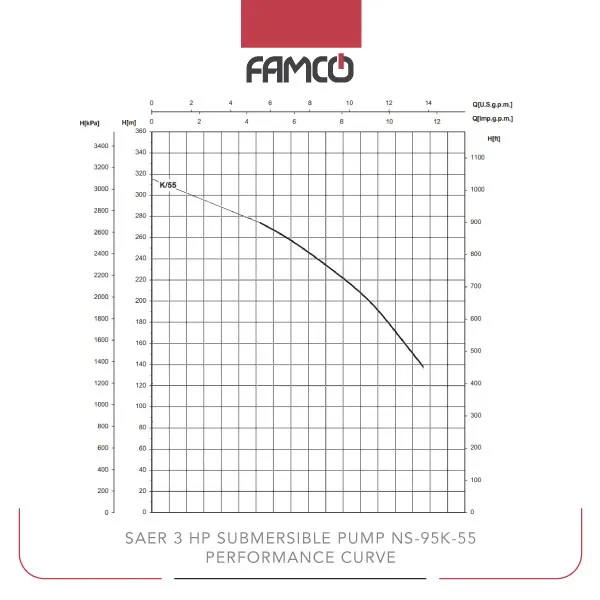

Saer 3 HP Submersible NS-95K/55 Performance Data
| Q (m3/h) | 0 | 0.8 | 1 | 1.25 | 1.6 | 2 |
| Q (l/min) | 0 | 13.3 | 16.7 | 20.8 | 26.7 | 33.3 |
| H (m) | 316 | 276 | 263 | 241 | 208 | 145 |
Saer 3 HP Submersible NS-95K/55 Applications
- Deep well water extraction
- Irrigation systems
- Industrial liquid transfer
- High-pressure water supply
Saer 3 HP Submersible NS-95K/55 Benefits
- High efficiency with a 2.2 kW motor
- Versatile voltage and phase options
- Deep immersion capability up to 300 meters
- Robust construction for demanding environments
Saer 3 HP Submersible NS-95K/55 Price List
| No. | Name | Price |
| 1 | Saer 3 HP Submersible NS-95K/55 Price | Contact us |
