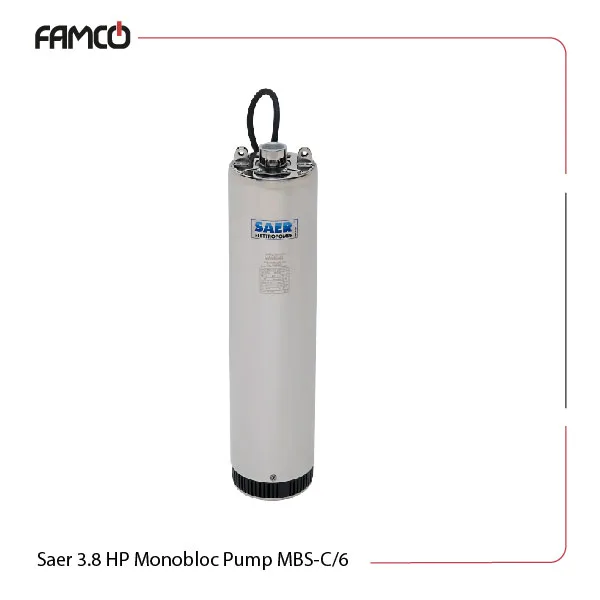

Saer 3.8 HP Monobloc Pump MBS-C/6 Specifications
This pump operates efficiently while reaching a height range of 19.5 to 77 meters for various applications. This Saer pump runs on a frequency of 50 Hz and can handle liquid temperatures from 0 to 40 °C. The pump passes solids through measuring up to 2.5 mm and can be immersed up to 70 meters deep. This product has an IP68 protection class, designed for durability in challenging environments. The mechanical seals consist of a graphite/alumina oxide seal on the motor side and an alumina oxide/silicon carbide seal on the pump side for maximum sealing. The pump body is made from AISI 304 steel, while the impellers and diffusers are crafted from thermoplastic resin. The motor shaft is constructed from AISI 431 stainless steel. These submersible pumps are available in both three-phase (380-400-415 V) and single-phase (220-230 V/230-240 V) versions. The power output is set and rated at 2.8 kW (3.8 HP) for P2 and 3.8 kW for P1 for a powerful operation.
| Specification | Value | |
| H (m) | 19.5-77 | |
| Frequency (Hz) | 50 | |
| Max. Liquid temperature (°C) | 0-40 | |
| Max. Solid passage (mm) | 2.5 | |
| Max. Immersion depth (m) | 70 | |
| Protection class | IP68 | |
| Voltage (V) | Three-phase versions | 380-400-415 V |
| Single-phase versions | 220-230 V/230-240 V | |
| P2 (kW) | 2.8 | |
| P2 (HP) | 3.8 | |
| P1 (kW) | 3.8 | |
Saer 3.8 HP Monobloc Pump MBS-C/6 Materials
- Mechanical seals on motor side: Graphite/alumina oxide
- Mechanical seals on pump side: alumina oxide/silicon carbide
- Pump body: ISI 304 steel
- Impellers and diffusers: thermoplastic resin
- Motor shaft: AISI 431 stainless steel

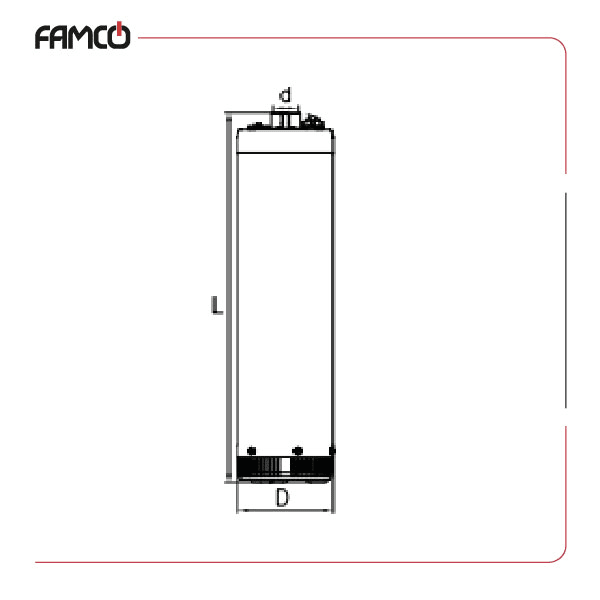

Saer 3.8 HP Monobloc Pump MBS-C/6 Dimensions and Weight
| Dimensions (mm) and Weight (kg) | |||
| D (mm) | 143 | ||
| d | 1”1/4 | ||
| Single phase (230V) | Three-phase (400V) | ||
| L (mm) | 729 | L (mm) | 709 |
| Weight (kg) | 29.3 | Weight (kg) | 29.8 |
Saer 3.8 HP Monobloc Pump MBS-C/6 Technical Data
| Q (m3/h) | 0 | 3 | 6 | 9 | 12 | 15 | 18 |
| Q (l/min) | 0 | 50 | 100 | 150 | 200 | 250 | 300 |
| H (m) | 77 | 76.5 | 73 | 65.5 | 52.5 | 37.5 | 19.5 |

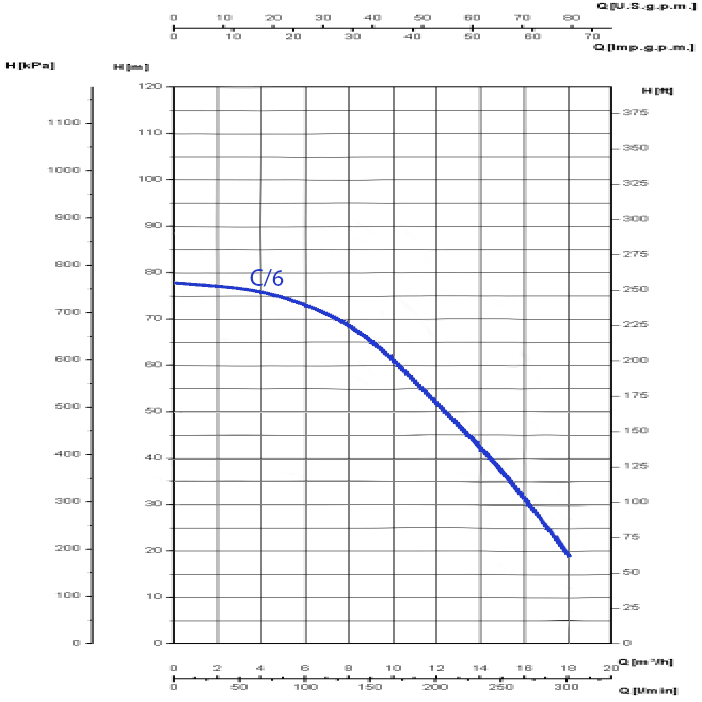

Saer 3.8 HP Monobloc Pump MBS-C/6 Performance Curve
Saer 3.8 HP Monobloc Pump MBS-C/6 Applications
- Water transfer in industrial settings
- Irrigation systems for agriculture
- Drainage in construction sites
- Wastewater management
Saer 3.8 HP Monobloc Pump MBS-C/6 Benefits
- High efficiency with a wide operational range
- Durable construction for long-term use
- Effective solid handling capability
- Versatile applications across various industries
Saer 3.8 HP Monobloc Pump MBS-C/6 Price List
| No. | Name | Price |
| 1 | Saer 3.8 HP Monobloc Pump MBS-C/6 Price | Contact us |
