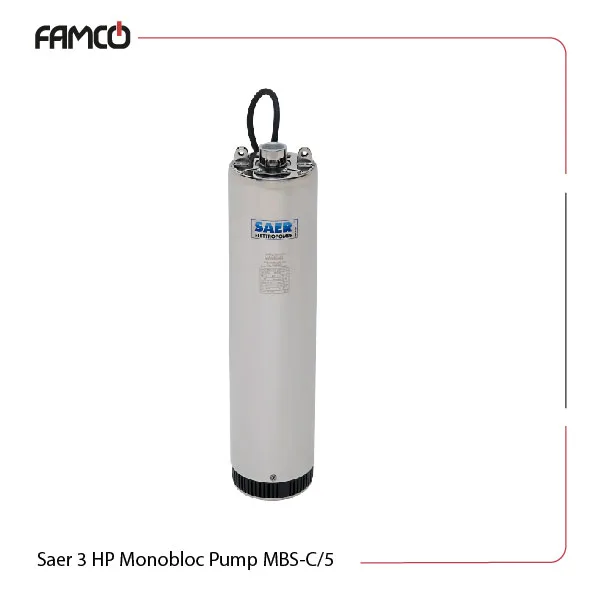

Saer 3 HP Monobloc Pump MBS-C/5 Specifications
This pump operates efficiently pumping up water to a height range of 15 to 66 meters, making it suitable for various applications. This Saer pump runs on a frequency of 50 Hz and can handle liquid temperatures from 0 to 40 degrees Celsius. The maximum solid passage is 2.5 mm to help it manage small particles without clogging. This pump has an impressive immersion depth of up to 70 meters, designed for deep installations. It comes in with an IP68 protection class to make it resistant to dust and water ingress. The mechanical seals are made of durable materials, including graphite and alumina oxide on the motor side, and alumina oxide and silicon carbide on the pump side. The pump body is constructed from AISI 304 steel, while the impellers and diffusers are made from thermoplastic resin. The motor shaft is crafted from AISI 431 stainless steel, for a lasting and reliable performance. Available in both three-phase (380-400-415 V) and single-phase (220-230 V/230-240 V) versions, this submersible pump has a power output of 2.2 kW (3 HP) and a total input power of 3.2 kW.
| Specification | Value | |
| H (m) | 15-66 | |
| Frequency (Hz) | 50 | |
| Max. Liquid temperature (°C) | 0-40 | |
| Max. Solid passage (mm) | 2.5 | |
| Max. Immersion depth (m) | 70 | |
| Protection class | IP68 | |
| Voltage (V) | Three-phase versions | 380-400-415 V |
| Single-phase versions | 220-230 V/230-240 V | |
| P2 (kW) | 2.2 | |
| P2 (HP) | 3 | |
| P1 (kW) | 3.2 | |
Saer 3 HP Monobloc Pump MBS-C/5 Materials
- Mechanical seals on motor side: Graphite/alumina oxide seal on
- Mechanical seals on pump side: alumina oxide/silicon carbide
- Pump body: AISI 304 steel
- Impellers and diffusers: thermoplastic resin
- Motor shaft: AISI 431 stainless steel

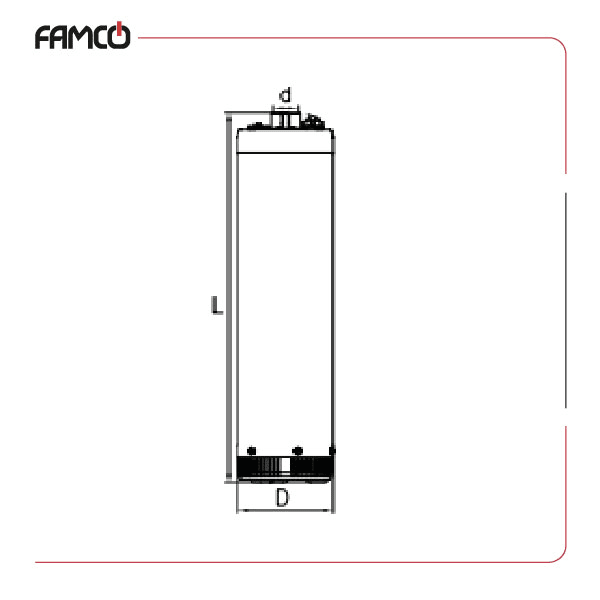

Saer 3 HP Monobloc Pump MBS-C/5 Dimensions and Weight
| Dimensions (mm) and Weight (kg) | |||
| D (mm) | 143 | ||
| d | 1”1/4 | ||
| Single phase (230V) | Three-phase (400V) | ||
| L (mm) | 677 | L (mm) | 656 |
| Weight (kg) | 27.6 | Weight (kg) | 27.8 |
Saer 3 HP Monobloc Pump MBS-C/5 Technical Data
| Q (m3/h) | 0 | 3 | 6 | 9 | 12 | 15 | 18 |
| Q (l/min) | 0 | 50 | 100 | 150 | 200 | 250 | 300 |
| H (m) | 66 | 65 | 62 | 55.5 | 52.5 | 37.5 | 19.5 |

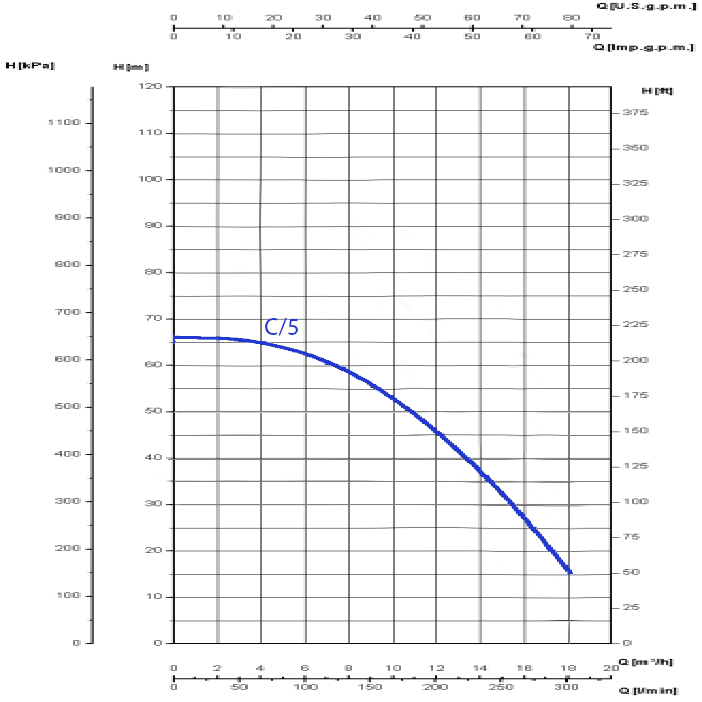

Saer 3 HP Monobloc Pump MBS-C/5 Performance Curve
Saer 3 HP Monobloc Pump MBS-C/5 Applications
- Deep well pumping for agricultural irrigation
- Industrial fluid transfer in manufacturing processes
- Wastewater management and treatment
- Cooling systems in power plants
Saer 3 HP Monobloc Pump MBS-C/5 Benefits
- High efficiency with a wide operational range
- Durable construction for long-lasting performance
- Effective sealing to prevent leaks and contamination
- Versatile applications across various industries
Saer 3 HP Monobloc Pump MBS-C/5 Price List
| No. | Name | Price |
| 1 | Saer 3 HP Monobloc Pump MBS-C/5 Price | Contact us |
