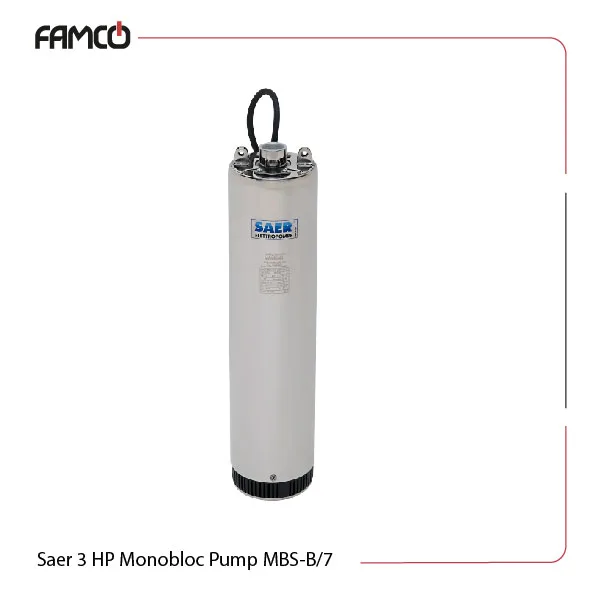

Saer 3 HP Monobloc Pump MBS-B/7 Specifications
This product features a height range of 30 to 96 meters, making it suitable for various applications. This Saer pump operates at a frequency of 50 Hz and can handle liquid temperatures from 0 to 40 °C. The maximum solid passage is 2.5 mm, offering lasting operation in different environments. The product’s maximum immersion depth of 70 meters is designed for deep applications. The protection class is IP68 to provide excellent resistance to dust and water.
Mechanical seals in this product include a graphite/alumina oxide seal on the motor side and an alumina oxide/silicon carbide seal on the pump side to reach utmost durability. The pump body is made from AISI 304 steel, while the built-in impellers and diffusers are crafted from thermoplastic resin. The motor shaft is constructed from AISI 431 stainless steel for added strength. To serve different setups and usages, these submersible pumps are available in both three-phase (380-400-415 V) and single-phase (220-230 V/230-240 V) versions. The power output is 2.2 kW (3 HP) with a total input power of 3.2 kW.
| Specification | Value | |
| H (m) | 30-96 | |
| Frequency (Hz) | 50 | |
| Max. Liquid temperature (°C) | 0-40 | |
| Max. Solid passage (mm) | 2.5 | |
| Max. Immersion depth (m) | 70 | |
| Protection class | IP68 | |
| Voltage (V) | Three-phase versions | 380-400-415 V |
| Single-phase versions | 220-230 V/230-240 V | |
| P2 (kW) | 2.2 | |
| P2 (HP) | 3 | |
| P1 (kW) | 3.2 | |
Saer 3 HP Monobloc Pump MBS-B/7 Materials
- Mechanical seals on motor side: Graphite/alumina oxide
- Mechanical seals on pump side: alumina oxide/silicon carbide
- Pump body: AISI 304 steel
- Impellers and diffusers: thermoplastic resin
- Motor shaft: AISI 431 stainless steel

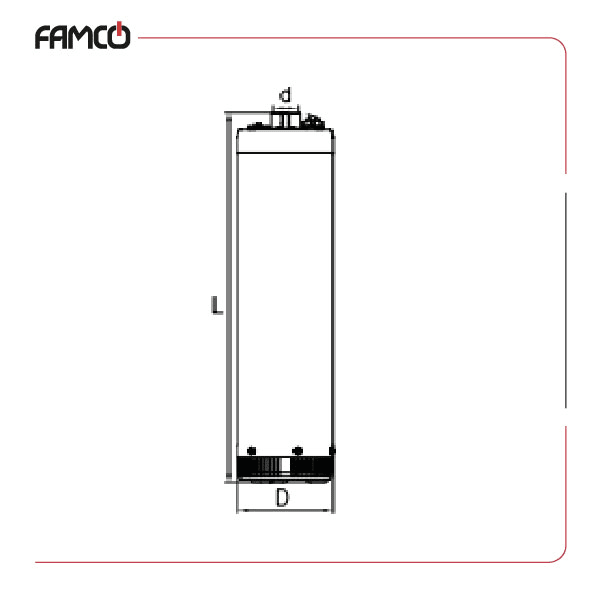

Saer 3 HP Monobloc Pump MBS-B/7 Dimensions and Weight
| Dimensions (mm) and Weight (kg) | |||
| D (mm) | 143 | ||
| d | 1”1/4 | ||
| Single phase (230V) | Three-phase (400V) | ||
| L (mm) | 698 | L (mm) | 678 |
| Weight (kg) | 31.3 | Weight (kg) | 28.3 |
Saer 3 HP Monobloc Pump MBS-B/7 Technical Data
| Q (m3/h) | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 7.2 | 8.4 | 9 |
| Q (l/min) | 0 | 20 | 40 | 60 | 80 | 120 | 140 | 150 |
| H (m) | 96 | 92 | 86.5 | 81.5 | 75.5 | 55 | 39 | 30 |

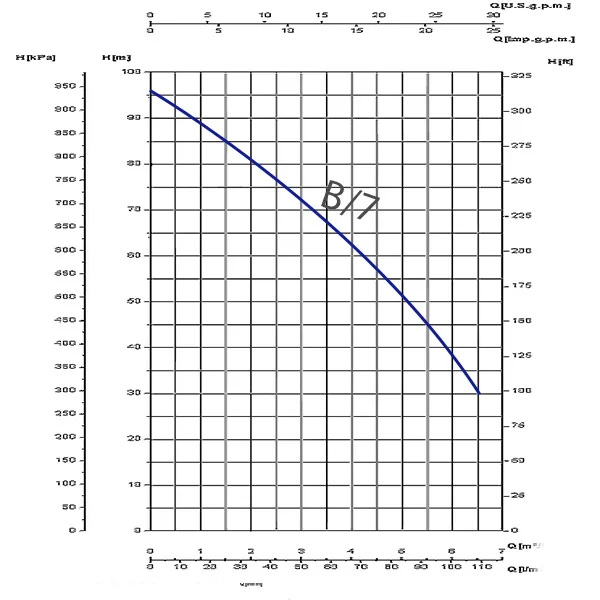

Saer 3 HP Monobloc Pump MBS-B/7 Performance Curve
Saer 3 HP Monobloc Pump MBS-B/7 Applications
- Agricultural irrigation systems
- Construction site dewatering
- Wastewater treatment facilities
- Industrial liquid transfer
Saer 3 HP Monobloc Pump MBS-B/7 Benefits
- High efficiency with a wide operational range
- Durable construction for long-lasting performance
- Excellent protection against water and dust
- Versatile applications across various industries
Saer 3 HP Monobloc Pump MBS-B/7 Price List
| No. | Name | Price |
| 1 | Saer 3 HP Monobloc Pump MBS-B/7 Price | Contact us |
