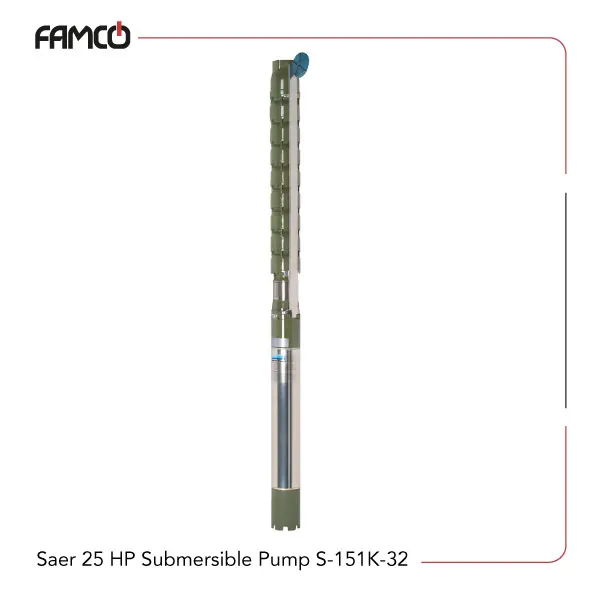

Saer 25 HP Submersible Pump S-151K/32 Specifications
This high-performance pump operates at 18.5 kW (25 HP) with a 400V power supply, drawing 38A during operation. It delivers a flow rate of 300 liters per minute, or 18 cubic meters per hour, ideal for large-scale pumping tasks. The pump can achieve a maximum head of 456 meters, allowing liquids to be lifted across significant heights. It is designed for liquids with temperatures up to 30°C and can handle pressures of up to 85 bar. The pump supports immersion depths of up to 300 meters below the liquid surface, suitable for deep submersion tasks. It can pass solids up to 5 mm in size, allowing semi-solid materials to flow through without blockage. With a solid construction and efficient performance, this Saer submersible pump is well suited for industrial, agricultural, and municipal applications that require high-capacity liquid transfer.
| Specification | Value |
| Power (kW) | 18.5 |
| Power (HP) | 25 |
| Voltage (V) | 400 |
| Current (A) | 38 |
| Flow rate (l/min) | 300 |
| Flow rate (m3/h) | 18 |
| Maximum head (m) | 456 |
| Temperature of the pumped liquid | max 30°C |
| Maximum working pressure | 85 bar |
| Maximum immersion depth | 300 m under liquid level |
| Passing of solids | max 5 mm |

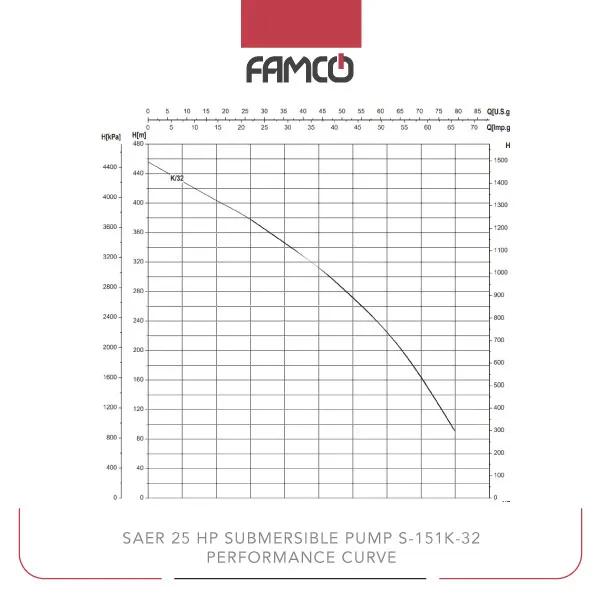

Saer 25 HP Submersible Pump S-151K/32 Performance Data
| Q (m3/h) | 0 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 15 | 18 |
| Q (L/min) | 0 | 66,7 | 83,3 | 100 | 117 | 133 | 150 | 167 | 200 | 250 | 300 |
| H (m) | 456 | 403 | 392 | 378 | 362 | 346 | 330 | 314 | 272 | 195 | 90 |
Saer 25 HP Submersible Pump S-151K/32 Applications
- Industrial fluid transfer
- Deep well water pumping
- Irrigation systems
- Wastewater and sewage management
Saer 25 HP Submersible Pump S-151K/32 Benefits
- High flow capacity for large-scale tasks
- Deep immersion capability up to 300 meters
- Handles solids up to 5 mm, reducing clogging
- Operates under high pressure with reliable performance
Saer 25 HP Submersible Pump S-151K/32 Price List
| No. | Name | Price |
| 1 | Saer 25 HP Submersible Pump S-151K/32 Price | Contact us |
