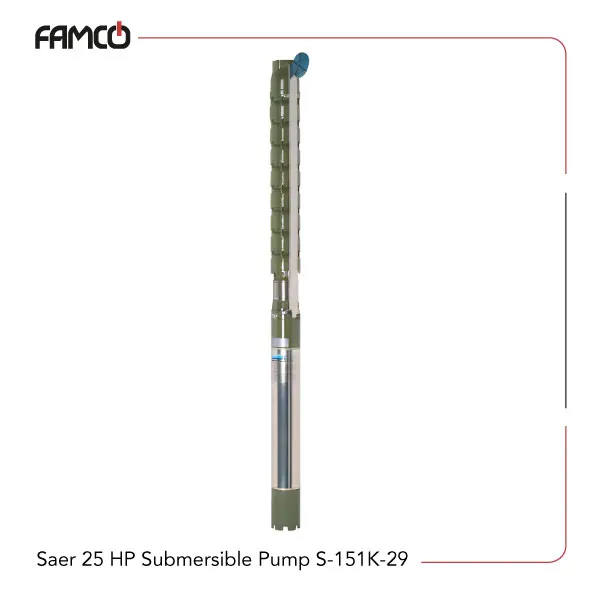

Saer 25 HP Submersible Pump S-151K/29 Specifications
Saer submersible pump S-151K/29 is equipped with an 18.5 kW (25 HP) motor operating on a 400-volt power supply and draws 38 amperes during operation. It delivers a flow rate of 300 liters per minute, equivalent to 18 cubic meters per hour, suitable for high-volume pumping requirements. A maximum head of 412 meters supports operation in high-pressure systems and applications involving significant lifting heights. This Saer submersible pump is designed for liquids with temperatures up to 30°C and can operate at a maximum working pressure of 85 bar. It supports immersion depths of up to 300 meters below the liquid surface, allowing use in deep-well and submersible installations. Solid particles up to 5 mm in size can pass through the pump, enabling handling of liquids containing small debris or particulates.
| Specification | Value |
| Power (kW) | 18.5 |
| Power (HP) | 25 |
| Voltage (V) | 400 |
| Current (A) | 38 |
| Maximum Flow rate (l/min) | 300 |
| Maximum Flow rate (m3/h) | 18 |
| Maximum head (m) | 412 |
| Temperature of the pumped liquid | max 30°C |
| Maximum working pressure | 85 bar |
| Maximum immersion depth | 300 m under liquid level |
| Passing of solids | max 5 mm |

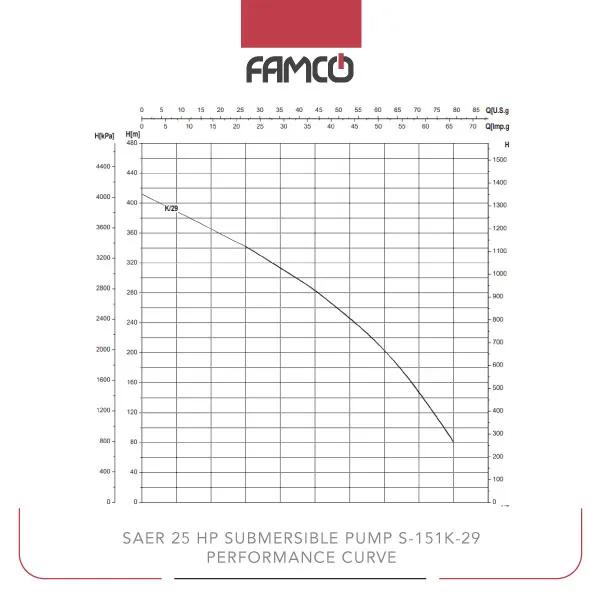

Saer 25 HP Submersible Pump S-151K/29 Performance Data
| Q (m3/h) | 0 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 15 | 18 |
| Q (L/min) | 0 | 66,7 | 83,3 | 100 | 117 | 133 | 150 | 167 | 200 | 250 | 300 |
| H (m) | 412 | 366 | 353 | 342 | 328 | 313 | 299 | 284 | 247 | 176 | 81 |
25 HP Submersible Pump S-151K/29 Applications
- Deep well water extraction
- Industrial liquid transfer
- Municipal water supply systems
- High-pressure fluid pumping
Saer 25 HP Submersible Pump S-151K/29 Benefits
- High power for demanding tasks
- Deep immersion capability
- Handles solids up to 5 mm
- Operates under high pressure up to 85 bar
Saer 25 HP Submersible Pump S-151K/29 Price List
| No. | Name | Price |
| 1 | Saer 25 HP Submersible Pump S-151K/29 Price | Contact us |
There are no reviews yet.
