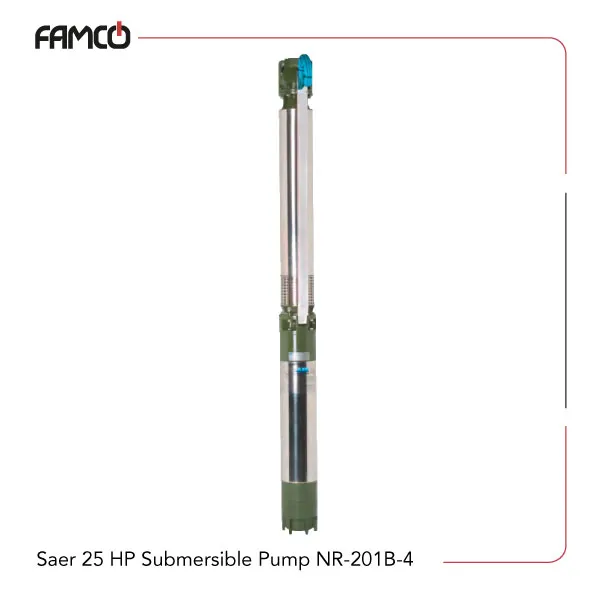

Saer 25 HP Submersible Pump NR-201B/4 Specifications
Saer submersible pump NR-201B/4 is equipped with an 18.5 kW (25 HP) motor operating on a 400-volt power supply and draws 38 amps during operation. It supports a flow rate of up to 90 cubic meters per hour, equivalent to 1,500 liters per minute. With a maximum head of 102 meters, it is capable of handling applications that require significant lifting capacity. The impellers are manufactured from brass, providing strong resistance to wear and corrosion. This Saer submersible pump is designed for liquids with temperatures up to 30°C and can operate under a maximum working pressure of 85 bar. It supports immersion depths of up to 300 meters below the liquid level, allowing use in deep-well and submersible installations. Solid particles up to 5 mm in size can pass through the system, allowing operation with slightly contaminated liquids without blockage. This pump is well suited for industrial processes and water management applications that demand high flow rates and dependable performance.
| Specification | Value |
| Power (kW) | 18.5 |
| Power (HP) | 25 |
| Voltage (V) | 400 |
| Current (A) | 38 |
| Maximum Flow rate (m3/h) | 90 |
| Maximum Flow rate (l/min) | 1500 |
| Maximum head (m) | 102 |
| Impellers | brass |
| Temperature of the pumped liquid | max 30°C |
| Maximum working pressure | 85 bar |
| Maximum immersion depth | 300 m under liquid level |
| Passing of solids | max 5 mm |

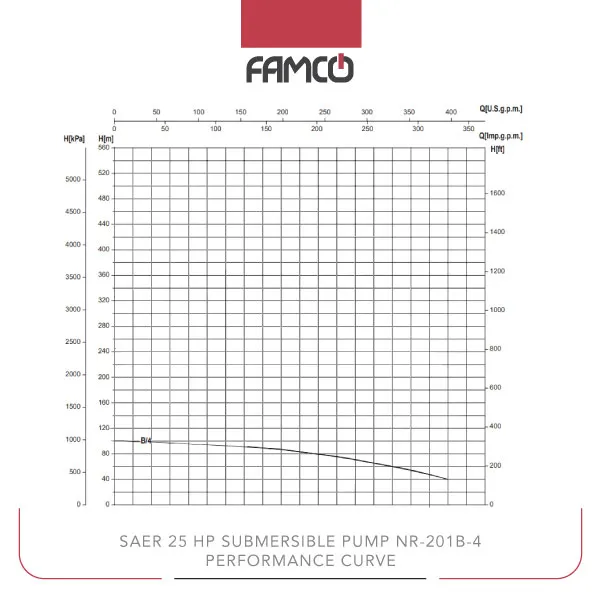

Saer 25 HP Submersible Pump NR-201B/4 Performance Curve
| Q (m3/h) | 0 | 600 | 667 | 750 | 833 | 933 | 1050 | 1167 | 1333 | 1500 |
| Q (l/min) | 0 | 36 | 40 | 45 | 50 | 56 | 63 | 70 | 80 | 90 |
| H (m) | 102 | 92 | 90 | 88 | 84 | 80 | 74 | 66 | 56 | 41 |
Saer 25 HP Submersible Pump NR-201B/4 Applications
- Deep well water extraction
- Industrial water transfer
- Municipal water systems
- Agricultural irrigation
Saer 25 HP Submersible Pump NR-201B/4 Benefits
- High power and efficiency for demanding tasks
- Durable brass impellers resist corrosion
- Handles solids up to 5 mm, reducing clogging
- Suitable for deep immersion up to 300 meters
Saer 25 HP Submersible Pump NR-201B/4 Price List
| No. | Name | Price |
| 1 | Saer 25 HP Submersible Pump NR-201B/4 Price | Contact us |
