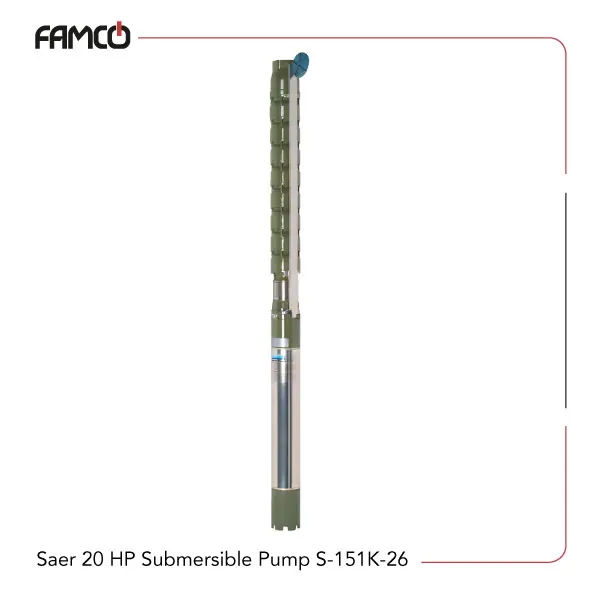

Saer 20 HP Submersible Pump S-151K/26 Specifications
Saer submersible pump S-151K/26 operates with a power rating of 15 kW (20 HP) and runs on a 400V power supply, drawing 30.4A during operation. It delivers a flow rate of 300 liters per minute, equivalent to 18 cubic meters per hour. A maximum head of 369 meters allows it to perform effectively in high-pressure pumping systems. The pump is intended for handling liquids at temperatures up to 30°C and can operate at a maximum working pressure of 85 bar. This Saer subemrsible pump is suitable for installation at immersion depths of up to 300 meters below the liquid level, supporting deep-well and submersible applications. The design allows solid particles up to 5 mm to pass through, enabling operation with slightly contaminated liquids or light slurry. This pump is well suited for industrial, agricultural, and municipal applications that require strong and consistent pumping performance.
| Specification | Value |
| Power (kW) | 15 |
| Power (HP) | 20 |
| Voltage (V) | 400 |
| Current (A) | 30.4 |
| Maximum Flow rate (l/min) | 300 |
| Maximum Flow rate (m3/h) | 18 |
| Maximum head (m) | 369 |
| Temperature of the pumped liquid | max 30°C |
| Maximum working pressure | 85 bar |
| Maximum immersion depth | 300 m under liquid level |
| Passing of solids | max 5 mm |

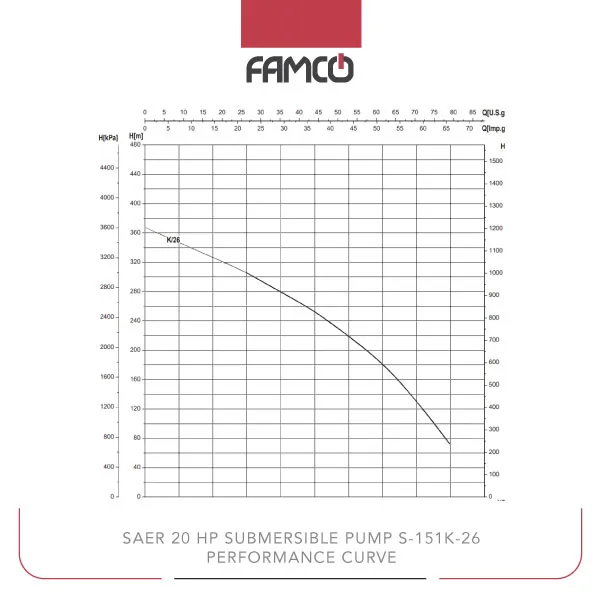

Saer 20 HP Submersible Pump S-151K/26 Performance Data
| Q (m3/h) | 0 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 15 | 18 |
| Q (L/min) | 0 | 66,7 | 83,3 | 100 | 117 | 133 | 150 | 167 | 200 | 250 | 300 |
| H (m) | 369 | 328 | 318 | 307 | 294 | 281 | 268 | 255 | 221 | 159 | 73 |
Saer 20 HP Submersible Pump S-151K/26 Applications
- Deep well water extraction
- Industrial fluid transfer
- Municipal water supply systems
- Agricultural irrigation
Saer 20 HP Submersible Pump S-151K/26 Benefits
- High flow rate and strong head for demanding tasks
- Suitable for deep immersion up to 300 meters
- Handles solids up to 5 mm, ideal for contaminated liquids
- Operates reliably under high pressure up to 85 bar
Saer 20 HP Submersible Pump S-151K/26 Price List
| No. | Name | Price |
| 1 | Saer 20 HP Submersible Pump S-151K/26 Price | Contact us |
