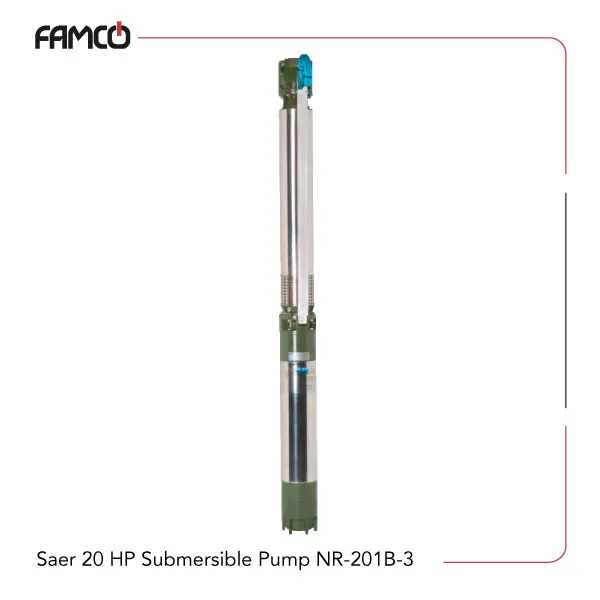

Saer 20 HP Submersible Pump NR-201B/3

15 kW (20 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Saer Pumps, Saer Submersible Pump

Overview of Saer 20 HP Submersible Pump NR-201B/3

Saer 20 HP submersible pump NR-201B/3 is suited for applications that require strong pressure handling and controlled fluid movement. It can reach a maximum head of 77 meters, allowing it to move water effectively across significant vertical distances. The use of brass impellers supports smooth operation and consistent flow characteristics. The motor is intended for pumping liquids with a temperature of up to 30°C, making it appropriate for standard water transfer tasks. It is designed to operate under a maximum working pressure of 85 bar.

Saer 20 HP Submersible Pump NR-201B/3 Specifications

This pump features a powerful 15 kW (20 HP) motor operating at 400 volts with a current of 30.4 amperes. It can handle a flow rate of up to 90 cubic meters per hour, which translates to 1500 liters per minute, making it suitable for high-volume applications. The maximum head it can achieve is 77 meters, allowing for efficient vertical movement of liquids. The impellers are made of durable brass, ensuring longevity and resistance to corrosion. This Saer submersible pump is designed to pump liquids at temperatures up to 30°C. The pump can withstand a maximum working pressure of 85 bar, suitable for high-pressure environments. It can operate at a maximum immersion depth of 300 meters under the liquid level, providing flexibility for deep submersion tasks. Additionally, it can pass solids up to 5 mm in size.

Specification	Value
Power (kW)	15
Power (HP)	20
Voltage (V)	400
Current (A)	30.4
Maximum Flow rate (m3/h)	90
Maximum Flow rate (l/min)	1500
Maximum head (m)	77
Impellers	brass
Temperature of the pumped liquid	max 30°C
Maximum working pressure	85 bar
Maximum immersion depth	300 m under liquid level
Passing of solids	max 5 mm

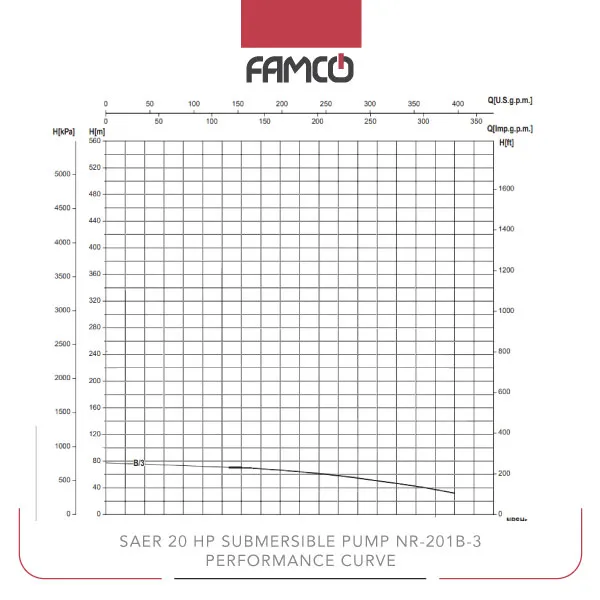

Saer 20 HP Submersible Pump NR-201B/3 Performance Data

Q (m3/h)	0	600	667	750	833	933	1050	1167	1333	1500
Q (l/min)	0	36	40	45	50	56	63	70	80	90
H (m)	77	69	68	66	63	60	56	50	42	31

Saer 20 HP Submersible Pump NR-201B/3 Applications

Deep well water extraction
Industrial fluid transfer
Agricultural irrigation systems
High-pressure water systems

Saer 20 HP Submersible Pump NR-201B/3 Benefits

High flow capacity for large volume transfer
Durable brass impellers resist corrosion
Suitable for deep immersion up to 300 meters
Handles solids up to 5 mm for versatile use

Saer 20 HP Submersible Pump NR-201B/3 Price List

No.	Name	Price
1	Saer 20 HP Submersible Pump NR-201B/3 Price	Contact us

Brand	Saer
Power (HP)	20
Power (kW)	15
Voltage (V)	400
Current (A)	30.4
Maximum Flow Rate (L/min)	1500
Maximum Flow Rate (m3/h)	90
Maximum Operating Pressure (bar)	85
Maximum immersion depth (m)	300
Maximum Delivery Head (m)	77
