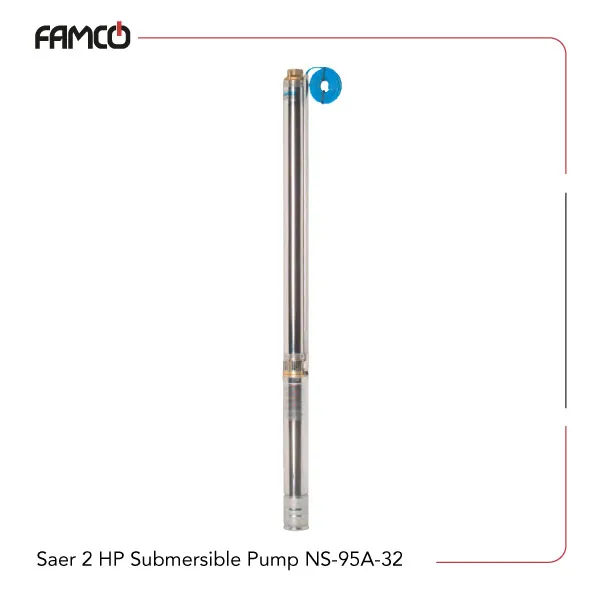

Saer 2 HP Submersible Pump NS-95A/32 Specifications
This pump has a power rating of 1.5 kW (2 HP) and operates within a voltage range of 230 to 400 volts. It draws 3.8 amperes in a three-phase configuration or 11.5 amperes with a single-phase supply. The pump delivers a flow rate of 3.2 cubic meters per hour, equivalent to 53.3 liters per minute, suitable for a wide range of fluid transfer tasks. The maximum head reaches 162 meters, which supports strong pressure for liquid transfer across long vertical distances. This Saer submersible pump works with liquids at temperatures from 0°C to 35°C and supports a maximum operating pressure of 34 bar. It can function at immersion depths of up to 300 meters below the liquid surface, suitable for deep-well and submersible installations. The construction and performance characteristics suit industrial, agricultural, and municipal water systems that require consistent and efficient liquid movement.
| Specification | Value |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Voltage (V) | 230-400 |
| Current (A) | 3.8 (three-phase), 11.5 (single-phase) |
| Maximum Flow rate (m3/h) | 3.2 |
| Maximum Flow rate (l/min) | 53.3 |
| Maximum head (m) | 162 |
| Liquid Temperature | min 0°C, max 35°C |
| Maximum operating pressure | 34 bar |
| Maximum immersion depth | 300 m under liquid level |

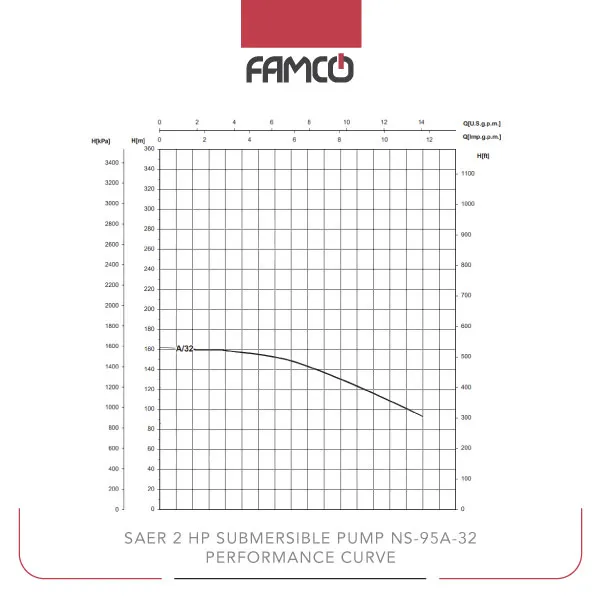

Saer 2 HP Submersible Pump NS-95A/32 Performance Data
| Q (m3/h) | 0 | 0,8 | 1 | 1,25 | 1,6 | 2 | 2,5 | 3,2 |
| Q (l/min) | 0 | 13,3 | 16,7 | 20,8 | 26,7 | 33,3 | 41,7 | 53,3 |
| H (m) | 162 | 159 | 157 | 155 | 149 | 137 | 120 | 93 |
Saer 2 HP Submersible Pump NS-95A/32 Applications
- Deep well water extraction
- Irrigation systems
- Municipal water supply
- Industrial fluid transfer
Saer 2 HP Submersible Pump NS-95A/32 Benefits
- High efficiency with 1.5 kW power
- Supports deep immersion up to 300 meters
- Handles high pressure up to 34 bar
- Versatile voltage compatibility (230-400V)
Saer 2 HP Submersible Pump NS-95A/32 Price List
| No. | Name | Price |
| 1 | Saer 2 HP Submersible Pump NS-95A/32 Price | Contact us |
