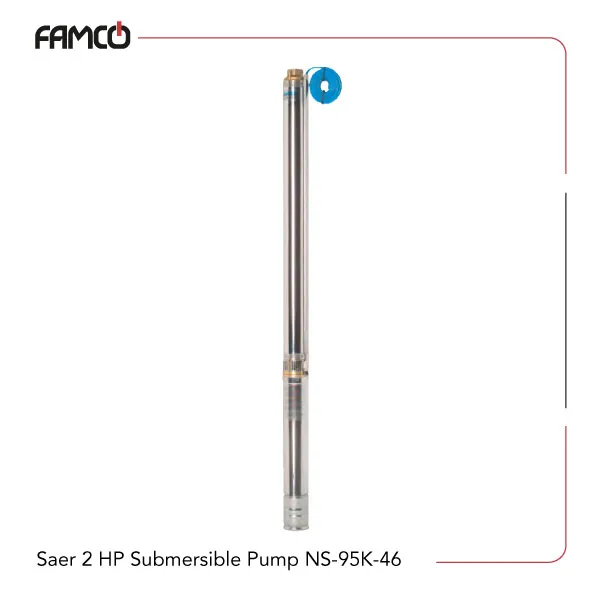

Saer 2 HP Submersible NS-95K/46 Specifications
This pump has a power rating of 1.5 kW (2 HP) and operates within a voltage range of 230 to 400 volts. It draws 11.5 amperes in a three-phase configuration or 3.8 amperes with a single-phase supply. The pump delivers a flow rate of 2 cubic meters per hour, equivalent to 33.3 liters per minute, suitable for a wide range of fluid transfer tasks. The maximum head reaches 262 meters, which supports liquid transfer across substantial vertical distances. This Saer submersible pump works with liquids at temperatures from 0°C to 35°C and supports a maximum operating pressure of 34 bar. It can operate at immersion depths of up to 300 meters below the liquid surface, suitable for deep-water and fully submerged installations.
| Specification | Value |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Voltage (V) | 230-400 |
| Current (A) | 11.5 (three-phase), 3.8 (single-phase) |
| Maximum Flow rate (m3/h) | 2 |
| Maximum Flow rate (l/min) | 33.3 |
| Maximum head (m) | 262 |
| Liquid Temperature | min 0°C, max 35°C |
| Maximum working pressure | 34 bar |
| Maximum immersion depth | 300 m under liquid level |
Saer 2 HP Submersible NS-95K/46 Performance Data
| Q (m3/h) | 0 | 0,8 | 1 | 1,25 | 1,6 | 2 |
| Q (l/min) | 0 | 13,3 | 16,7 | 20,8 | 26,7 | 33,3 |
| H (m) | 262 | 228 | 211 | 195 | 163 | 110 |
Saer 2 HP Submersible NS-95K/46 Applications
- Deep well water extraction
- Irrigation systems
- Industrial fluid transfer
- High-pressure water systems
Saer 2 HP Submersible NS-95K/46 Benefits
- High efficiency with 1.5 kW power
- Supports both single-phase and three-phase power
- Deep immersion capability up to 300 meters
- Handles high pressure up to 34 bar
Saer 2 HP Submersible NS-95K/46 Price List
| No. | Name | Price |
| 1 | Saer 2 HP Submersible NS-95K/46 Price | Contact us |
There are no reviews yet.
