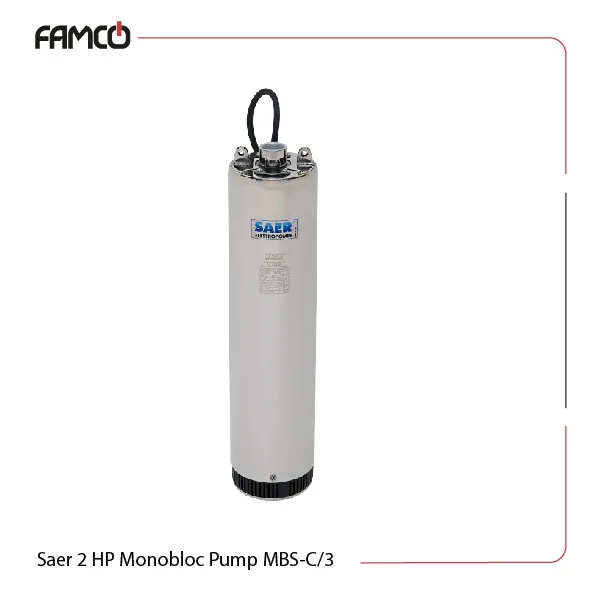

Saer 2 HP Monobloc Pump MBS-C/3 Specifications
This pump operates efficiently within a height range of 7 to 38 meters, making it suitable for various applications. It also runs on a frequency of 50 Hz and can handle liquid temperatures from 0 to 40 degrees Celsius. The maximum solid passage in this Saer pump is 2.5 mm, managing small particles effectively. The product’s maximum immersion depth of 70 meters is designed for deep installations. This pump offers an IP68 protection class that makes the MBS-C/3 dust-tight. Mechanical seals are made from durable materials, including graphite and alumina oxide on the motor side, and alumina oxide and silicon carbide on the pump side. The body is constructed from AISI 304 steel, while the impellers and diffusers are made from thermoplastic resin. The motor shaft is crafted from AISI 431 stainless steel, to maximize longevity and resistance to corrosion. These submersible pumps are available in both three-phase (380-400-415 V) and single-phase (220-230 V/230-240 V) versions, with a power output of 1.5 kW (2 HP) and a total input power of 2.1 kW.
| Specification | Value | |
| H (m) | 7-38 | |
| Frequency (Hz) | 50 | |
| Max. Liquid temperature (°C) | 0-40 | |
| Max. Solid passage (mm) | 2.5 | |
| Max. Immersion depth (m) | 70 | |
| Protection class | IP68 | |
| Voltage (V) | Three-phase versions | 380-400-415 V |
| Single-phase versions | 220-230 V/230-240 V | |
| P2 (kW) | 1.5 | |
| P2 (HP) | 2 | |
| P1 (kW) | 2.1 | |
Saer 2 HP Monobloc Pump MBS-C/3 Materials
- Mechanical seals on motor side: Graphite/alumina oxide
- Mechanical seals on pump side: alumina oxide/silicon carbide
- Pump body: AISI 304 steel
- Impellers and diffusers: thermoplastic resin
- Motor shaft: AISI 431 stainless steel

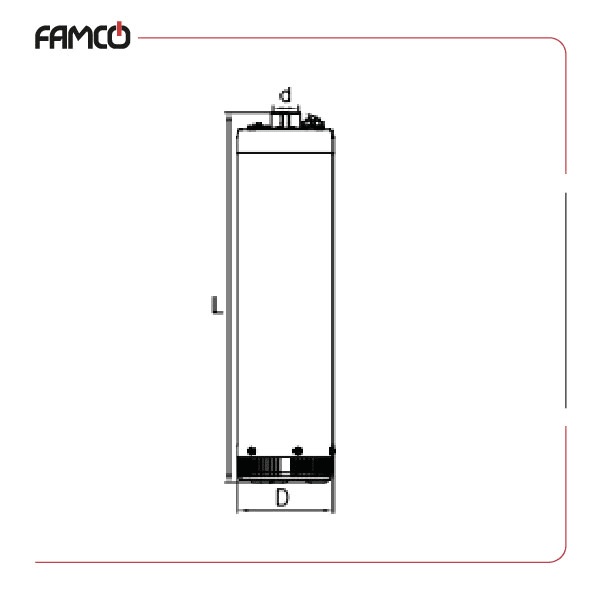

Saer 2 HP Monobloc Pump MBS-C/3 Dimensions and Weight
| Dimensions (mm) and Weight (kg) | |||
| D (mm) | 143 | ||
| d | 1”1/4 | ||
| Single phase (230V) | Three-phase (400V) | ||
| L (mm) | 599 | L (mm) | 559 |
| Weight (kg) | 24.2 | Weight (kg) | 21.8 |
Saer 2 HP Monobloc Pump MBS-C/3 Technical Data
| Q (m3/h) | 0 | 3 | 6 | 9 | 12 | 15 | 18 |
| Q (l/min) | 0 | 50 | 100 | 150 | 200 | 250 | 300 |
| H (m) | 38 | 38 | 35.5 | 31.5 | 25 | 16.5 | 7 |

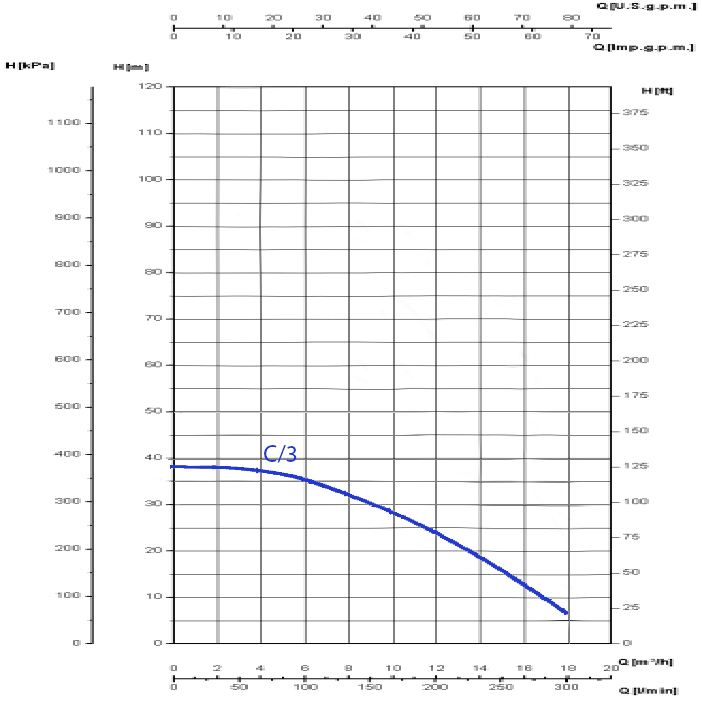

Saer 2 HP Monobloc Pump MBS-C/3 Performance Curve
Saer 2 HP Monobloc Pump MBS-C/3 Applications
- Irrigation systems in agriculture
- Water supply for industrial processes
- Drainage in construction sites
- Aquaculture and fish farming
Saer 2 HP Monobloc Pump MBS-C/3 Benefits
- High durability due to quality materials
- Efficient operation across various conditions
- Ability to handle small solid particles
- Versatile applications in multiple industries
Saer 2 HP Monobloc Pump MBS-C/3 Price List
| No. | Name | Price |
| 1 | Saer 2 HP Monobloc Pump MBS-C/3 Price | Contact us |
