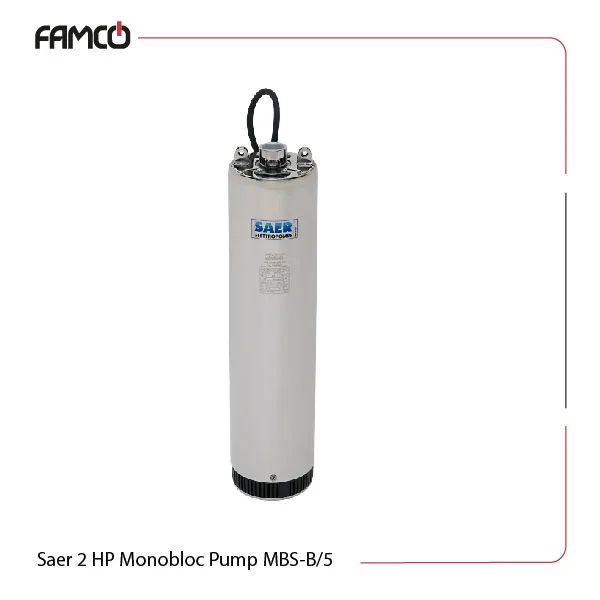

Saer 2 HP Monobloc Pump MBS-B/5 Specifications
This pump operates efficiently within a height range of 20 to 69 meters, making it suitable for various applications. It also works at a frequency of 50 Hz and can handle liquid temperatures from 0 to 40 degrees Celsius. This pump can manage solid particles up to 2.5 mm in size and can be immersed up to 70 meters deep. This Saer pump comes in with a IP68 protection class, which is designed to withstand harsh conditions. To protect the pump from foreign particles, the mechanical seals consist of graphite/alumina oxide on the motor side and alumina oxide/silicon carbide on the pump side, which enhances durability, too. The pump body is made from AISI 304 steel, while the impellers and diffusers are crafted from thermoplastic resin, all sturdy materials. The motor shaft is constructed from AISI 431 stainless steel to provide strength and longevity. For convenience, these submersible pumps are iavailable in both three-phase (380-400-415 V) and single-phase (220-230 V/230-240 V) versions.
| Specification | Value | |
| H (m) | 20-69 | |
| Frequency (Hz) | 50 | |
| Max. Liquid temperature (°C) | 0-40 | |
| Max. Solid passage (mm) | 2.5 | |
| Max. Immersion depth (m) | 70 | |
| Protection class | IP68 | |
| Voltage (V) | Three-phase versions | 380-400-415 V |
| Single-phase versions | 220-230 V/230-240 V | |
| P2 (kW) | 1.5 | |
| P2 (HP) | 2 | |
| P1 (kW) | 2.2 | |
Saer 2 HP Monobloc Pump MBS-B/5 Materials
- Mechanical seals on motor side: Graphite/alumina oxide
- Mechanical seals on pump side: on alumina oxide/silicon carbide
- Pump body: AISI 304 steel
- Impellers and diffusers: thermoplastic resin
- Motor shaft: AISI 431 stainless steel

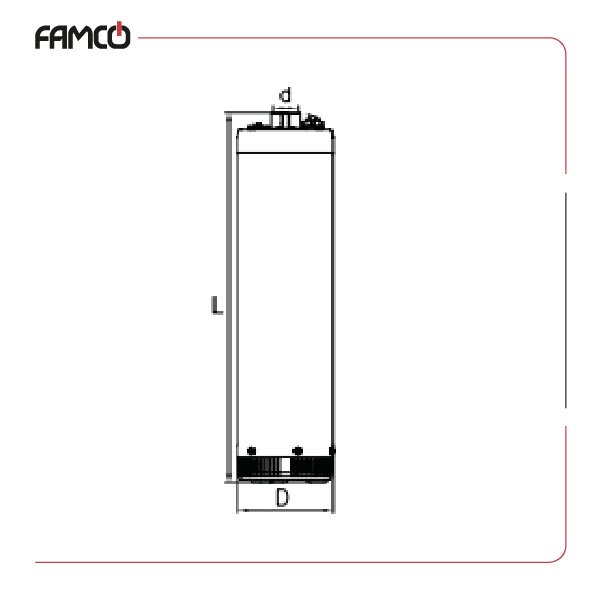

Saer 2 HP Monobloc Pump MBS-B/5 Dimensions and Weight
| Dimensions (mm) and Weight (kg) | |||
| D (mm) | 143 | ||
| d | 1”1/4 | ||
| Single phase (230V) | Three-phase (400V) | ||
| L (mm) | 624 | L (mm) | 619 |
| Weight (kg) | 26.8 | Weight (kg) | 26.1 |
Saer 2 HP Monobloc Pump MBS-B/5 Technical Data
| Q (m3/h) | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 7.2 | 8.4 | 9 |
| Q (l/min) | 0 | 20 | 40 | 60 | 80 | 120 | 140 | 150 |
| H (m) | 69 | 64 | 61 | 57 | 53 | 38 | 29 | 20 |

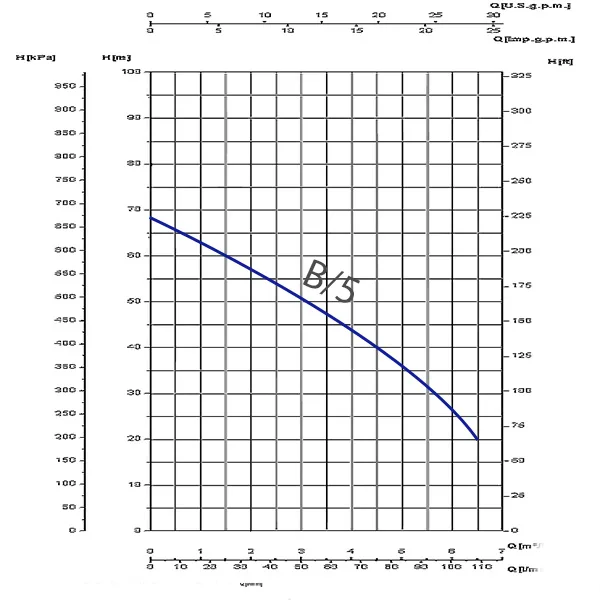

Saer 2 HP Monobloc Pump MBS-B/5 Performance Curve
Saer 2 HP Monobloc Pump MBS-B/5 Applications
- Wastewater management
- Irrigation systems
- Industrial fluid transfer
- Aquaculture and fish farming
Saer 2 HP Monobloc Pump MBS-B/5 Benefits
- Durable construction with high-quality materials
- Efficient operation in various conditions
- Ability to handle solids up to 2 mm
- Versatile applications across multiple industries
Saer 2 HP Monobloc Pump MBS-B/5 Price List
| No. | Name | Price |
| 1 | Saer 2 HP Monobloc Pump MBS-B/5 Price | Contact us |
