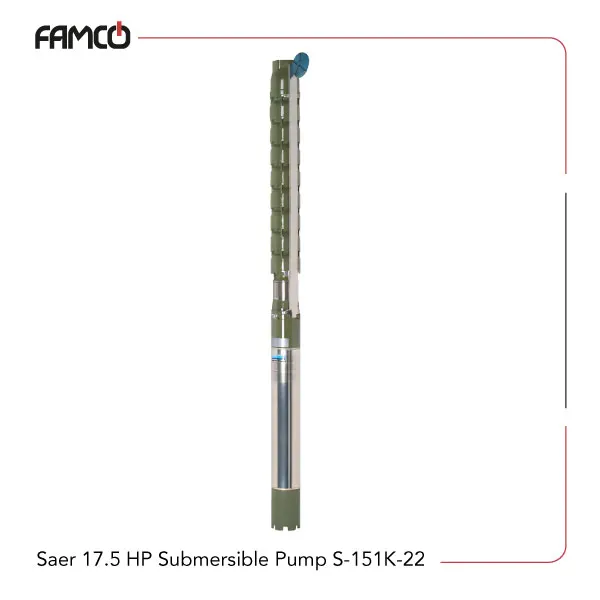

Saer 17.5 HP Submersible Pump S-151K/22

Saer 17.5 HP Submersible Pump S-151K/22 Specifications

Saer submersible pump S-151K/22 features a powerful 13 kW (17.5 HP) motor operating at 400 volts, with a current draw of 27.7 amperes. It can handle a flow rate of 300 liters per minute, equivalent to 18 cubic meters per hour, making it suitable for high-volume applications. The maximum head it can achieve is 317 meters, allowing it to lift liquids over significant heights. It is designed to pump liquids at temperatures up to 30°C and withstand pressures up to 85 bar, ensuring durability under demanding conditions. This Saer submersible pump can operate at depths of up to 300 meters below the liquid surface. It also passes solids up to 5 mm in size, which is useful for handling slightly contaminated liquids or slurry. Its robust construction and high performance make it suitable for industrial, municipal, or large-scale water management tasks.

Specification	Value
Power (kW)	13
Power (HP)	17.5
Voltage (V)	400
Current (A)	27.7
Maximum Flow rate (l/min)	300
Maximum Flow rate (m3/h)	18
Maximum head (m)	317
Temperature of the pumped liquid	max 30°C
Maximum working pressure	85 bar
Maximum immersion depth	300 m under liquid level
Passing of solids	max 5 mm

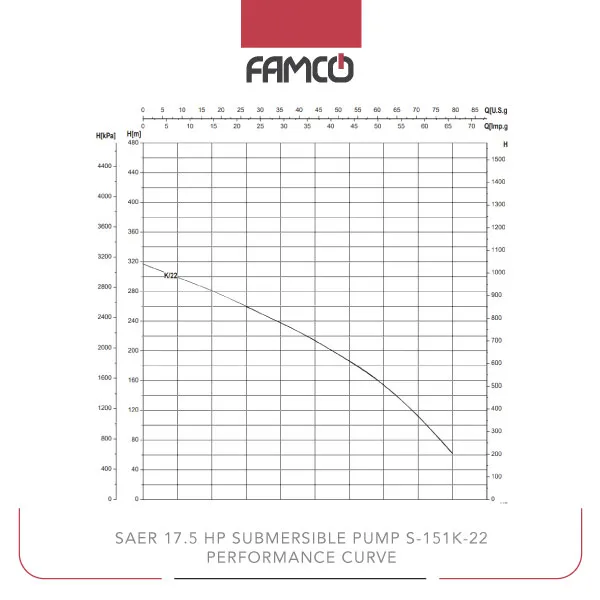

Saer 17.5 HP Submersible Pump S-151K/22 Performance Data

Q (m3/h)	0	4	5	6	7	8	9	10	12	15	18
Q (L/min)	0	66,7	83,3	100	117	133	150	167	200	250	300
H (m)	317	281	271	260	249	238	227	214	187	134	62

Saer 17.5 HP Submersible Pump S-151K/22 Applications

• Deep well water extraction
• Municipal water supply systems
• Industrial liquid transfer
• Irrigation and agricultural use



Saer 17.5 HP Submersible Pump S-151K/22 Benefits

• High flow rate for efficient water transfer
• Deep immersion capability for versatile use
• Robust construction for durability
• Handles solids up to 5 mm for flexible applications



Saer 17.5 HP Submersible Pump S-151K/22 Price List

No.	Name	Price
1	Saer 17.5 HP Submersible Pump S-151K/22 Price	Contact us
