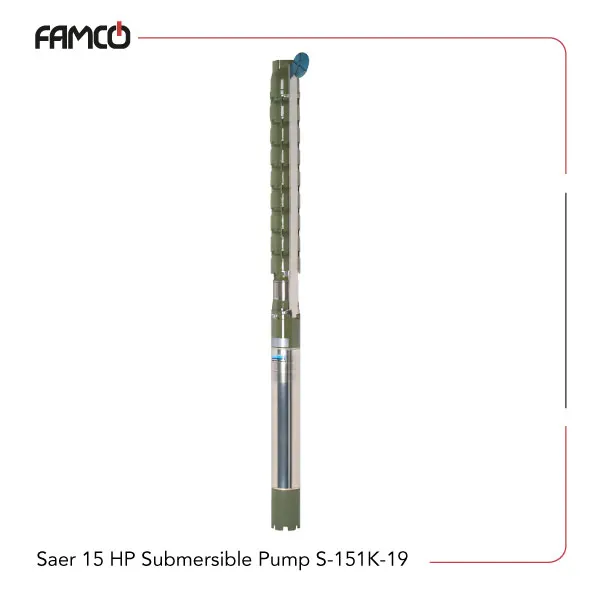

Saer 15 HP Submersible Pump S-151K/19 Specifications
This pump is powered by an 11 kW (15 HP) motor and operates on a 400V supply, drawing 23.7A during normal use. It delivers a flow rate of 300 liters per minute, equivalent to 18 cubic meters per hour, making it well suited for demanding transfer requirements. With a maximum head of 270 meters, it performs effectively in high-pressure environments. The unit is designed for handling liquids with temperatures up to 30°C and supports a maximum working pressure of 85 bar. This Saer submersible pump can be fully submerged to depths of up to 300 meters below the liquid surface, allowing operation in deep installations. In addition, the pump is capable of passing solid particles up to 5 mm in size, which makes it appropriate for fluids containing small debris in industrial applications.
| Specification | Value |
| Power (kW) | 11 |
| Power (HP) | 15 |
| Voltage (V) | 400 |
| Current (A) | 23.7 |
| Maximum Flow rate (l/min) | 300 |
| Maximum Flow rate (m3/h) | 18 |
| Maximum head (m) | 270 |
| Temperature of the pumped liquid | max 30°C |
| Maximum working pressure | 85 bar |
| Maximum immersion depth | 300 m under liquid level |
| Passing of solids | max 5 mm |

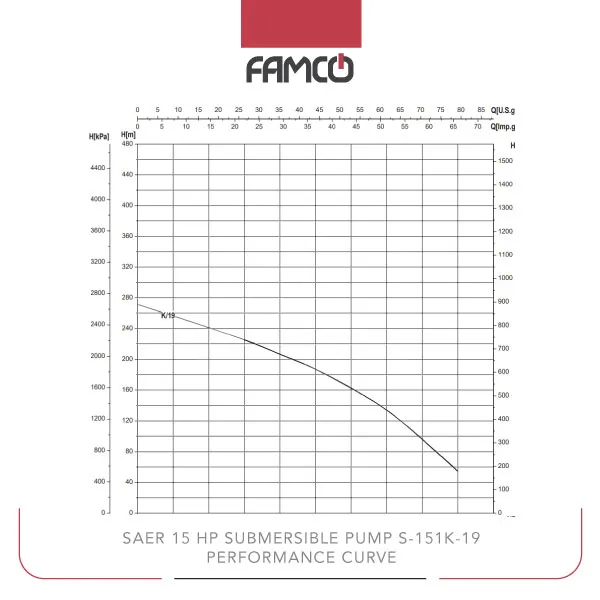

Saer 15 HP Submersible Pump S-151K/19 Performance Data
| Q (m3/h) | 0 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 15 | 18 |
| Q (L/min) | 0 | 66,7 | 83,3 | 100 | 117 | 133 | 150 | 167 | 200 | 250 | 300 |
| H (m) | 270 | 240 | 232 | 224 | 215 | 205 | 196 | 187 | 162 | 115 | 53 |
Saer 15 HP Submersible Pump S-151K/19 Applications
- Deep well water extraction
- Industrial fluid transfer
- Municipal water systems
- High-pressure liquid pumping
Saer 15 HP Submersible Pump S-151K/19 Benefits
- High flow rate for efficient operation
- Deep immersion capability for versatile use
- Handles solids up to 5 mm, reducing clogging
- Durable design for long-term reliability
Saer 15 HP Submersible Pump S-151K/19 Price List
| No. | Name | Price |
| 1 | Saer 15 HP Submersible Pump S-151K/19 Price | Contact us |
