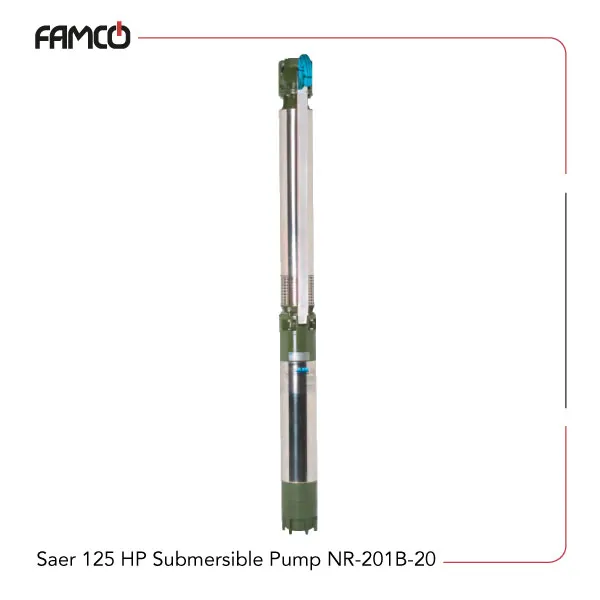

Saer 125 HP Submersible Pump NR-201B/20 Specifications
Saer submersible pump NR-201B/20 has a 92 kW (125 HP) motor operating on a 400V supply and draws 184A. It handles a flow rate of 1,050 liters per minute, equivalent to 63 cubic meters per hour, suitable for large-scale applications. The maximum head reaches 546 meters, allowing liquids to move over significant heights. This Saer submersible pump works with liquids up to 30°C and operates under a maximum pressure of 85 bar. It can be immersed to a depth of 300 meters below the liquid surface, suitable for deep-well or submersible installations. Solid particles up to 5 mm can pass through the pump, enabling operation with slightly contaminated liquids without blockage or damage. Its design provides reliable performance for demanding industrial, municipal, and water management tasks.
| Specification | Value |
| Power (kW) | 92 |
| Power (HP) | 125 |
| Voltage (V) | 400 |
| Current (A) | 184 |
| Maximum Flow rate (l/min) | 1050 |
| Maximum Flow rate (m3/h) | 63 |
| Maximum head (m) | 546 |
| Temperature of the pumped liquid | max 30°C |
| Maximum working pressure | 85 bar |
| Maximum immersion depth | 300 m under liquid level |
| Passing of solids | max 5 mm |

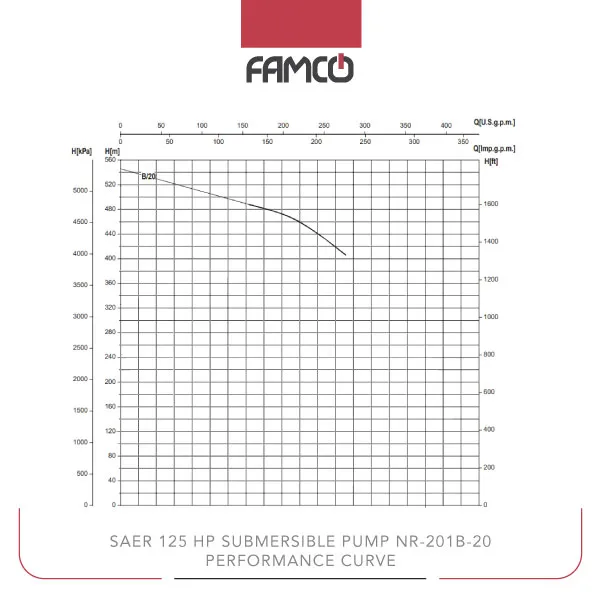

Saer 125 HP Submersible Pump NR-201B/20 Performance Data
| Q (m3/h) | 0 | 600 | 667 | 750 | 833 | 933 | 1050 |
| Q (l/min) | 0 | 36 | 40 | 45 | 50 | 56 | 63 |
| H (m) | 546 | 488 | 482 | 474 | 461 | 438 | 406 |
Saer 125 HP Submersible Pump NR-201B/20 Applications
- Deep well water extraction
- Industrial fluid transfer
- High-pressure water systems
- Agricultural irrigation systems
Saer 125 HP Submersible Pump NR-201B/20 Benefits
- High power for demanding tasks
- Deep immersion capability
- Handles solids up to 5 mm
- Reliable under high pressure and deep depths
Saer 125 HP Submersible Pump NR-201B/20 Price List
| No. | Name | Price |
| 1 | Saer 125 HP Submersible Pump NR-201B/20 Price | Contact us |
