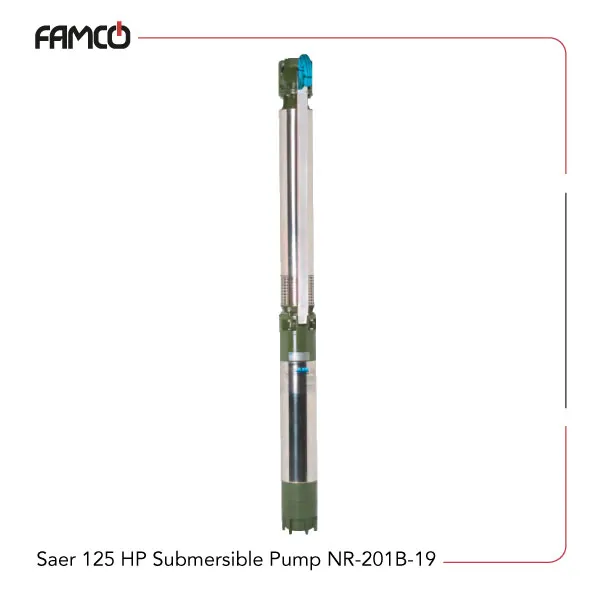

Saer 125 HP Submersible Pump NR-201B/19 Specifications
This pump has a 92 kW (125 HP) motor operating on a 400V supply and draws 181A. It handles a flow rate of up to 1,500 liters per minute and reaches a maximum head of 518 meters, suitable for high-demand applications. This Saer submersible pump works with liquids at temperatures up to 30°C and operates under a maximum pressure of 85 bar, appropriate for intense industrial processes. It can be submerged to a depth of 300 meters below the liquid surface, suitable for deep-well or fully submerged installations. Solid particles up to 5 mm can pass through the pump, allowing it to move slightly contaminated liquids without blockage or damage. Its design delivers high performance and resilience, making it suitable for demanding industrial, municipal, and large-scale water management environments.
| Specification | Value |
| Power (kW) | 92 |
| Power (HP) | 125 |
| Voltage (V) | 400 |
| Current (A) | 181 |
| Maximum Flow rate (l/min) | 1500 |
| Maximum head (m) | 518 |
| Temperature of the pumped liquid | max 30°C |
| Maximum working pressure | 85 bar |
| Maximum immersion depth | 300 m under liquid level |
| Passing of solids | max 5 mm |

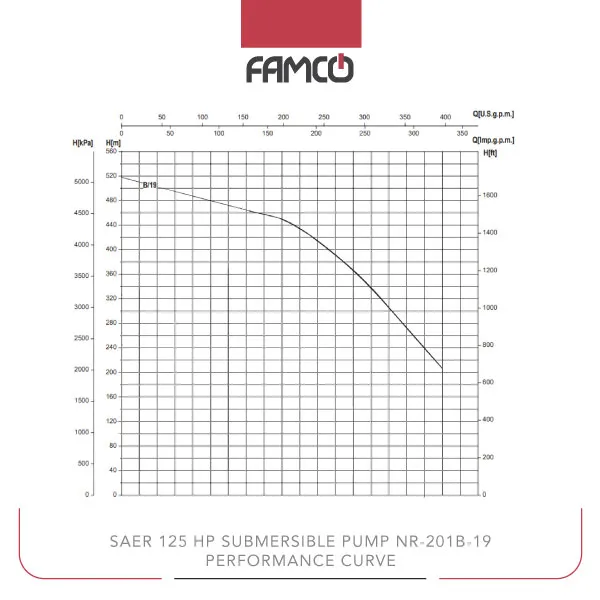

Saer 125 HP Submersible Pump NR-201B/19 Performance Data
| Q (m3/h) | 0 | 600 | 667 | 750 | 833 | 933 | 1050 | 1167 | 1333 | 1500 |
| Q (l/min) | 0 | 36 | 40 | 45 | 50 | 56 | 63 | 70 | 80 | 90 |
| H (m) | 518 | 463 | 458 | 451 | 435 | 411 | 377 | 338 | 274 | 207 |
Saer 125 HP Submersible Pump NR-201B/19 Applications
- Deep well water extraction
- Industrial fluid transfer
- Irrigation systems
- High-pressure water supply
Saer 125 HP Submersible Pump NR-201B/19 Benefits
- High power for demanding tasks
- Deep immersion capability
- Handles solids up to 5 mm
- Reliable under high pressure
Saer 125 HP Submersible Pump NR-201B/19 Price List
| No. | Name | Price |
| 1 | Saer 125 HP Submersible Pump NR-201B/19 Price | Contact us |
There are no reviews yet.
