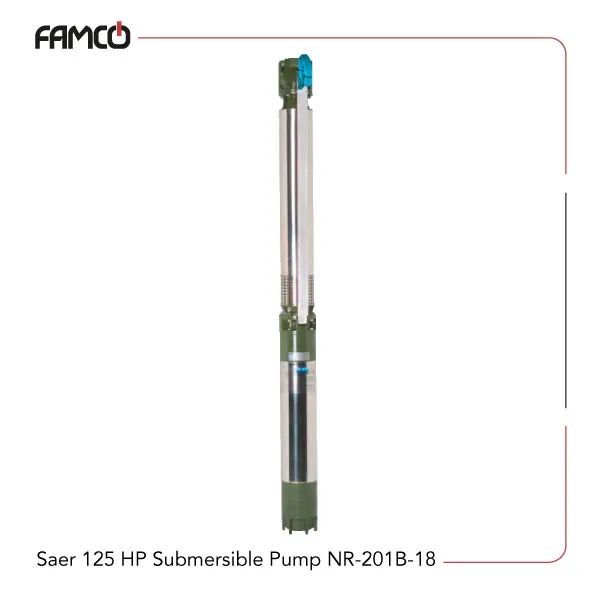

Saer 125 HP Submersible Pump NR-201B/18 Specifications
Saer 125 HP submersible pump NR-201B/18 operates at 92 kW (125 HP) and requires a voltage of 400V with a current of 179A. It can handle a flow rate of up to 1500 liters per minute and achieve a maximum head of 481 meters, making it suitable for demanding applications. This Saer submersible pump is designed to work with liquids at temperatures up to 30°C and can withstand pressures up to 85 bar. It is capable of operating at a maximum immersion depth of 300 meters below the liquid level, which is ideal for deep water or well applications. Additionally, it can pass solids up to 5 mm in size, ensuring versatility in handling various types of liquids and debris. These specifications make it a reliable choice for industrial, municipal, or agricultural uses where high power and durability are essential.
| Specification | Value |
| Power (kW) | 92 |
| Power (HP) | 125 |
| Voltage (V) | 400 |
| Current (A) | 179 |
| Maximum Flow rate (l/min) | 1500 |
| Maximum head (m) | 481 |
| Temperature of the pumped liquid | max 30°C |
| Maximum working pressure | 85 bar |
| Maximum immersion depth | 300 m under liquid level |
| Passing of solids | max 5 mm |

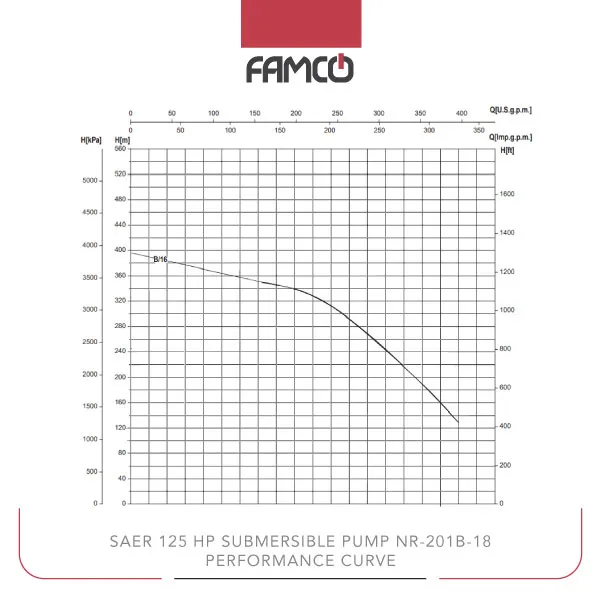

Saer 125 HP Submersible Pump NR-201B/18 Performance Data
| Q (m3/h) | 0 | 600 | 667 | 750 | 833 | 933 | 1050 | 1167 | 1333 | 1500 |
| Q (l/min) | 0 | 36 | 40 | 45 | 50 | 56 | 63 | 70 | 80 | 90 |
| H (m) | 481 | 439 | 434 | 427 | 415 | 387 | 355 | 312 | 254 | 188 |
Saer 125 HP Submersible Pump NR-201B/18 Applications
- Deep well water extraction
- Industrial fluid transfer
- Municipal water supply systems
- Agricultural irrigation
Saer 125 HP Submersible Pump NR-201B/18 Benefits
- High flow rate and powerful performance
- Capable of operating at great depths
- Handles solids up to 5 mm for versatility
- Durable design suitable for tough environments
Saer 125 HP Submersible Pump NR-201B/18 Price List
| No. | Name | Price |
| 1 | Saer 125 HP Submersible Pump NR-201B/18 Price | Contact us |
