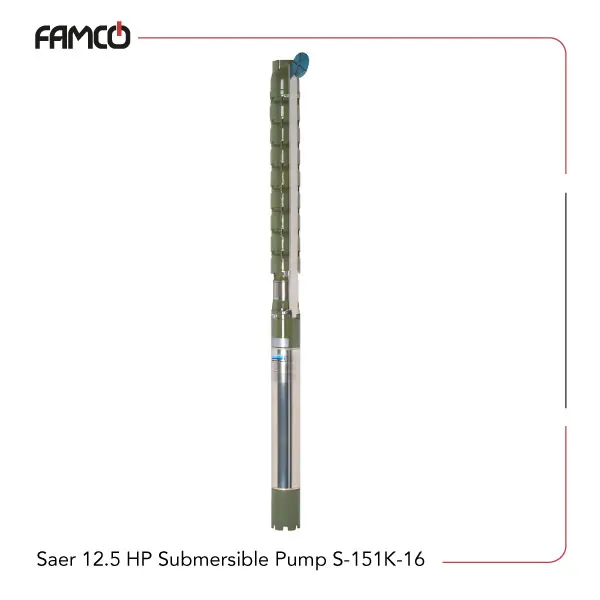

Saer 12.5 HP Submersible Pump S-151K/16 Specifications
Saer submersible pump S-151K/16 features a powerful 9.2 kW (12.5 HP) motor operating at 400V with a current of 19.9A. It can pump up to 300 liters per minute, which equals 18 cubic meters per hour. The maximum head height it can achieve is 228 meters. This Saer submersible pump is designed to handle liquids at temperatures up to 30°C and can withstand a maximum pressure of 85 bar. The pump can operate at a maximum immersion depth of 300 meters under liquid level, making it ideal for deep submersion tasks. It also allows passing solids up to 5 mm in size, ensuring efficient operation even with some debris present.
| Specification | Value |
| Power (kW) | 9.2 |
| Power (HP) | 12.5 |
| Voltage (V) | 400 |
| Current (A) | 19.9 |
| Maximum Flow rate (l/min) | 300 |
| Maximum Flow rate (m3/h) | 18 |
| Maximum head (m) | 228 |
| Temperature of the pumped liquid | max 30°C |
| Maximum working pressure | 85 bar |
| Maximum immersion depth | 300 m under liquid level |
| Passing of solids | max 5 mm |

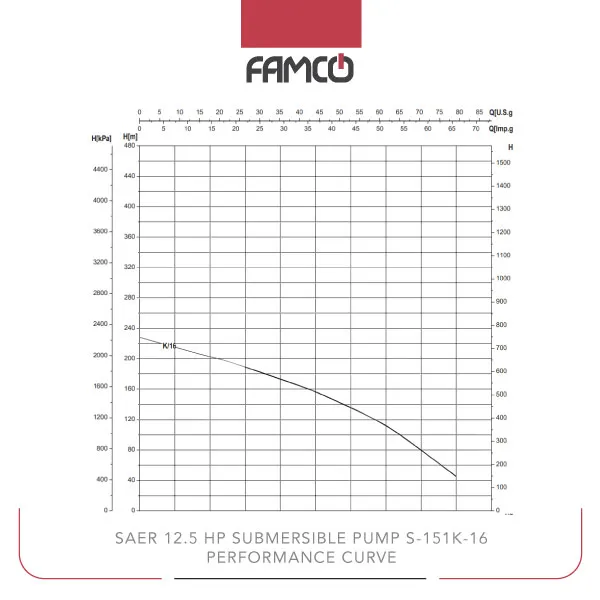

Saer 12.5 HP Submersible Pump S-151K/16 Performance Data
| Q (m3/h) | 0 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 15 | 18 |
| Q (L/min) | 0 | 66,7 | 83,3 | 100 | 117 | 133 | 150 | 167 | 200 | 250 | 300 |
| H (m) | 228 | 202 | 197 | 189 | 181 | 173 | 165 | 157 | 136 | 95,5 | 45 |
Saer 12.5 HP Submersible Pump S-151K/16 Applications
- Deep well water extraction
- Industrial liquid transfer
- Irrigation systems
- High-pressure water pumping
Saer 12.5 HP Submersible Pump S-151K/16 Benefits
- High efficiency with powerful motor
- Capable of lifting water to great heights
- Handles solids up to 5 mm for versatile use
- Suitable for deep immersion up to 300 meters
Saer 12.5 HP Submersible Pump S-151K/16 Price List
| No. | Name | Price |
| 1 | Saer 12.5 HP Submersible Pump S-151K/16 Price | Contact us |
